4.9 Start-Up

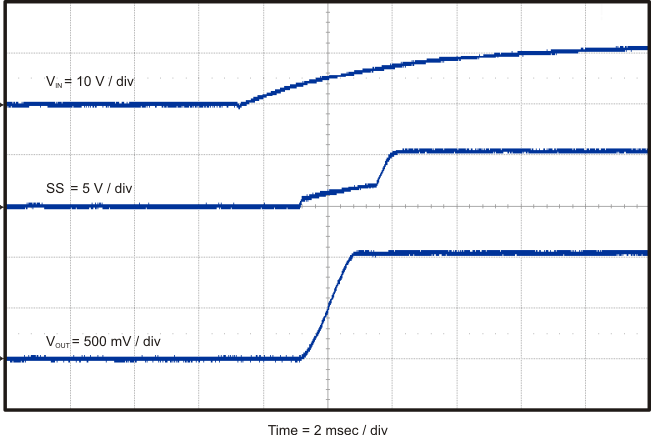

The TPS54228EVM-686 start-up waveform relative to VIN is shown in Figure 4-11.

GUID-EE1075BE-BF82-411A-B36F-723245ADEF76-low.gifFigure 4-11 TPS54228EVM-686 Start-Up Relative to VIN

The TPS54228EVM-686 start-up waveform relative to enable (EN) is shown in Figure 4-12.

GUID-4C294598-319A-4A0D-B39D-C9F6E3ED83EA-low.gifFigure 4-12 TPS54228EVM-686 Start-Up Relative to EN
