2.4 Output Voltage Line Regulation

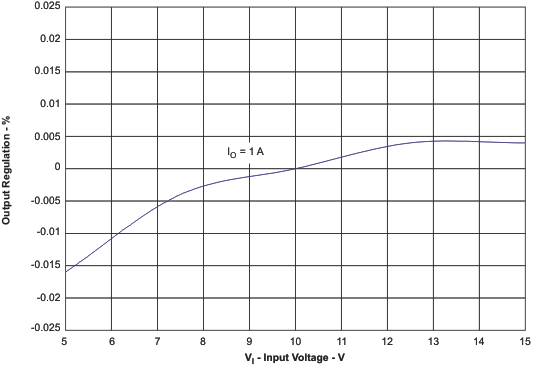

Figure 2-4 shows the line regulation for the TPS54332EVM-416.

GUID-EC4CAB7B-B305-4121-B553-B608F66B7CB1-low.gif Figure 2-4 TPS54332EVM-416 Line Regulation
