3.2 Layout

Figure 3-2, Figure 3-3, Figure 3-4 and Figure 3-5 show the layout of the LP8868XQ1EVM printed circuit board (PCB).

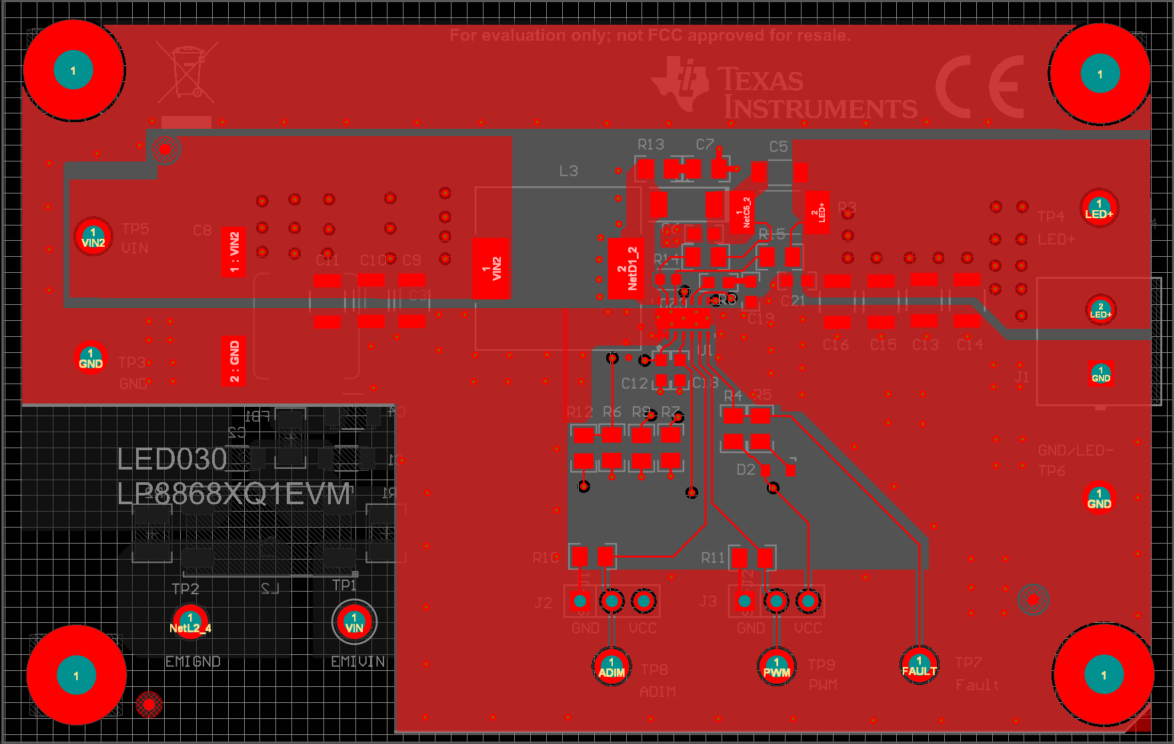

LP8868XQ1EVM LP8868XQ1EVM Top Layer Figure 3-2 LP8868XQ1EVM Top Layer
LP8868XQ1EVM LP8868XQ1EVM Inner Layer 1 Figure 3-3 LP8868XQ1EVM Inner Layer 1
LP8868XQ1EVM LP8868XQ1EVM Inner Layer 2 Figure 3-4 LP8868XQ1EVM Inner Layer 2
LP8868XQ1EVM LP8868XQ1EVM Bottom Layer Figure 3-5 LP8868XQ1EVM Bottom Layer
