3.3.1.2 Two Phases ON

In this mode of operation, two low-side MOSFETs are turned on together. This mode results in higher torque than the case when single phase is ON. The truth table and timing diagram for this mode of operation are shown in Table 3-5.

Figure 3-8 and Figure 3-9 show the input and output waveforms when driving a unipolar stepper motor in two phases ON mode with the DRV8935.

Table 3-5 Input and Output Waveforms
INDEX IN1 IN2 IN3 IN4
1 0 0 1 1
2 1 0 0 1
3 1 1 0 0
4 0 1 1 0
GUID-108A2484-1E47-4845-9B76-2500F3B30D36-low.png Figure 3-8 Input PWM signal of DRV8935

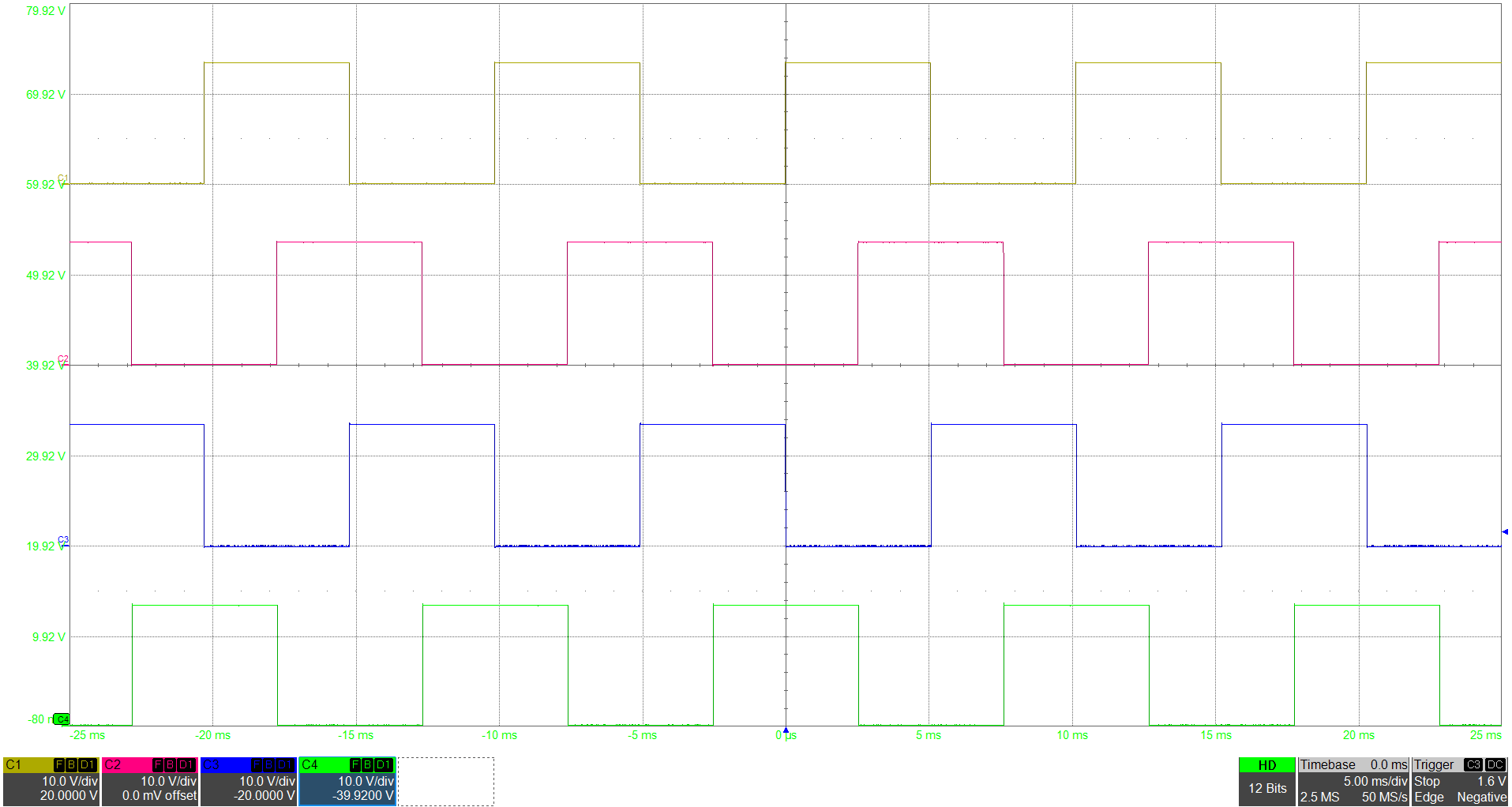

GUID-CA079256-B7A4-440F-AF12-74D28959DFC1-low.png Figure 3-9 Output node waveforms of DRV8935
