Typical Characteristics

At LDOIN = 15.0 V, DVDD = 3.3 V, AINP = –50 mV to 50 mV (AMC1304x05) or –250 mV to 250 mV (AMC1304x25), AINN = 0 V, fCLKIN = 20 MHz, and sinc3 filter with OSR = 256, unless otherwise noted.
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D001_SBAS655.gif
Figure 6. Input Current vs Input Common-Mode Voltage

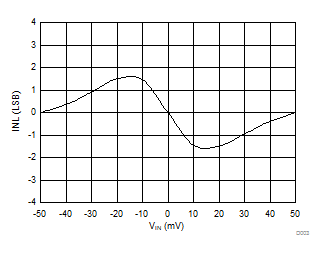

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D003_SBAS655.gif
Figure 8. Integral Nonlinearity vs Input Signal Amplitude

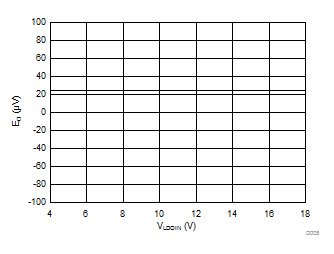

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D005_SBAS655.gif
AMC1304x25
Figure 10. Offset Error vs LDO Input Supply Voltage
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D007_SBAS655.gif
AMC1304x25

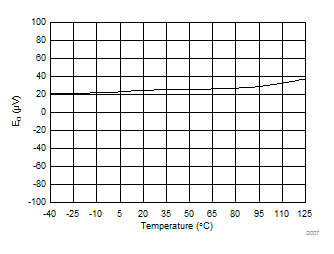

Figure 12. Offset Error vs Temperature

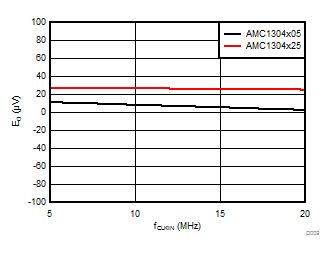

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D009_SBAS655.gif
Figure 14. Offset Error vs Clock Frequency
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D011_SBAS654.gif
Figure 16. Gain Error vs Temperature

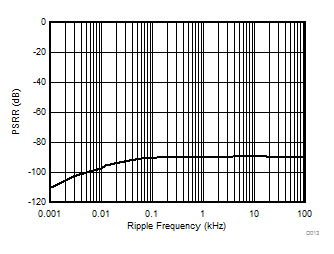

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D013_SBAS655.gif
Figure 18. Power-Supply Rejection Ratio vs
Ripple Frequency
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D015_SBAS655.gif

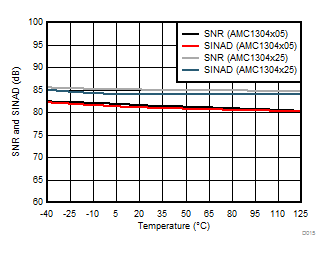

Figure 20. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Temperature
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D017_SBAS655.gif

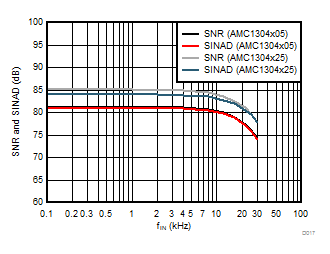

Figure 22. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Input Signal Frequency

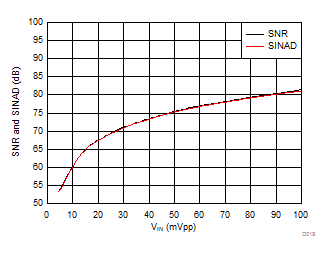

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D019_SBAS654.gif
AMC1304x05
Figure 24. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Input Signal Amplitude
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D021_SBAS654.gif

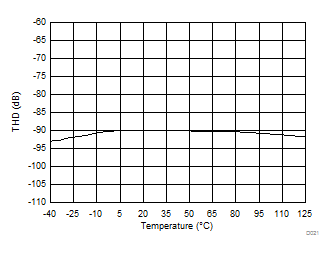

Figure 26. Total Harmonic Distortion vs Temperature
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D023_SBAS654.gif
Figure 28. Total Harmonic Distortion vs
Input Signal Frequency

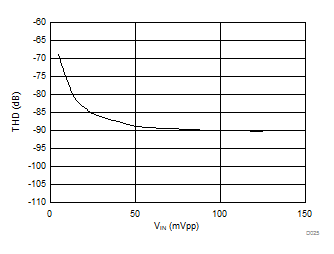

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D025_SBAS655.gif
AMC1304x05
Figure 30. Total Harmonic Distortion vs
Input Signal Amplitude

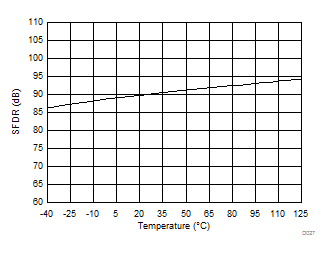

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D027_SBAS655.gif
Figure 32. Spurious-Free Dynamic Range vs Temperature
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D029_SBAS655.gif
Figure 34. Spurious-Free Dynamic Range vs
Input Signal Frequency
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D031_SBAS655.gif
AMC1304x05

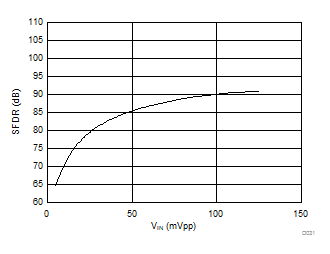

Figure 36. Spurious-Free Dynamic Range vs
Input Signal Amplitude
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D033_SBAS655.gif
AMC1304x05, 4096-point FFT, VIN = 100 mVPP

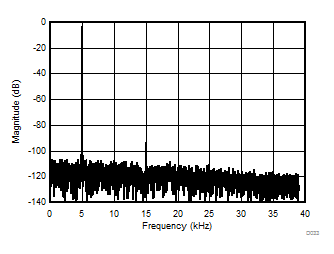

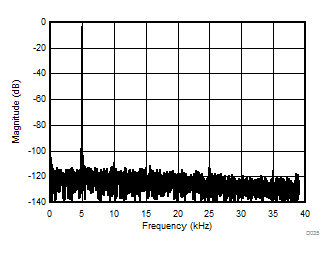

Figure 38. Frequency Spectrum with 5-kHz Input Signal
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D035_SBAS655.gif
AMC1304x25, 4096-point FFT, VIN = 500 mVPP
Figure 40. Frequency Spectrum with 5-kHz Input Signal

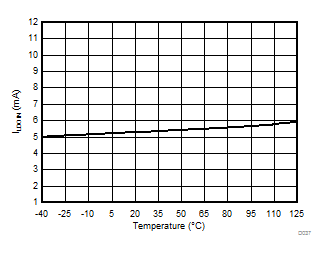

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D037_SBAS655.gif
Figure 42. LDO Input Supply Current vs Temperature
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D039_SBAS655.gif
Figure 44. Controller-Side Supply Current vs
Controller-Side Supply Voltage (3.3 V, min)
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D041_SBAS655.gif

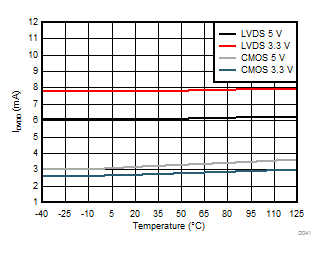

Figure 46. Controller-Side Supply Current vs Temperature
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D002_SBAS655.gif

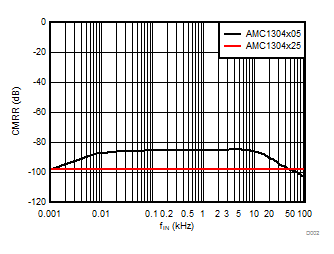

Figure 7. Common-Mode Rejection Ratio vs
Input Signal Frequency
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D004_SBAS654.gif

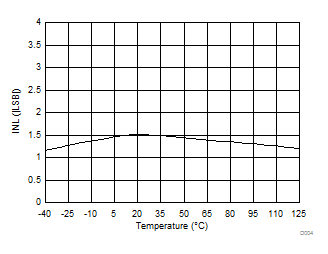

Figure 9. Integral Nonlinearity vs Temperature
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D006_SBAS655.gif
AMC1304x05

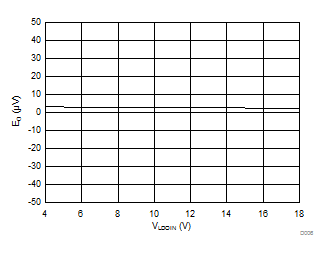

Figure 11. Offset Error vs LDO Input Supply Voltage

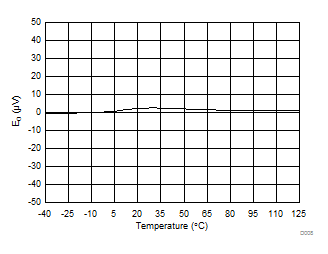

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D008_SBAS654.gif
AMC1304x05
Figure 13. Offset Error vs Temperature

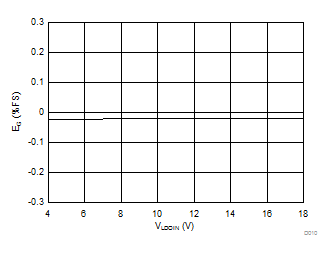

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D010_SBAS655.gif
Figure 15. Gain Error vs LDO Input Supply Voltage

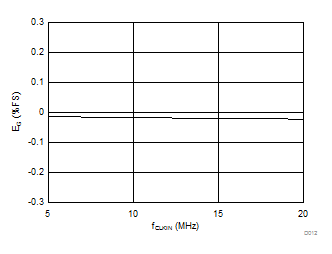

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D012_SBAS654.gif
Figure 17. Gain Error vs Clock Frequency
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D014_SBAS655.gif
Figure 19. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs LDO Input Supply Voltage
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D016_SBAS655.gif

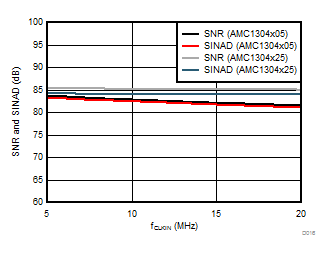

Figure 21. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Clock Frequency
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D018_SBAS655.gif
AMC1304x25

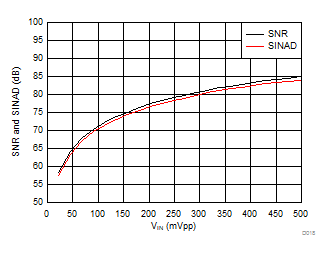

Figure 23. SNR and SINAD vs Input Signal Amplitude
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D020_SBAS655.gif

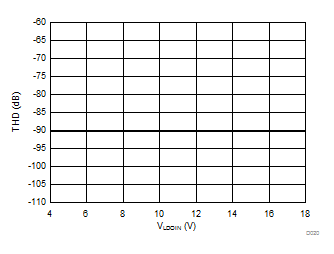

Figure 25. Total Harmonic Distortion vs
LDO Input Supply Voltage
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D022_SBAS654.gif

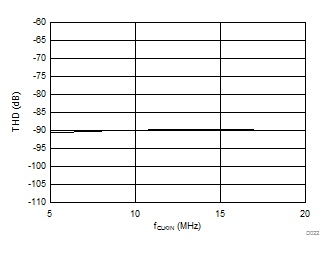

Figure 27. Total Harmonic Distortion vs Clock Frequency
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D024_SBAS655.gif
AMC1304x25

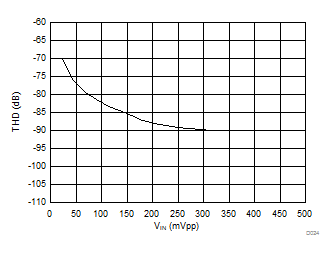

Figure 29. Total Harmonic Distortion vs
Input Signal Amplitude

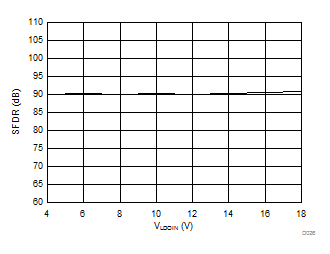

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D026_SBAS655.gif
Figure 31. Spurious-Free Dynamic Range vs
LDO Input Supply Voltage

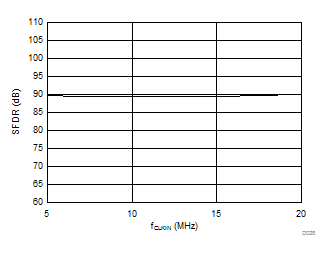

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D028_SBAS655.gif
Figure 33. Spurious-Free Dynamic Range vs
Clock Frequency

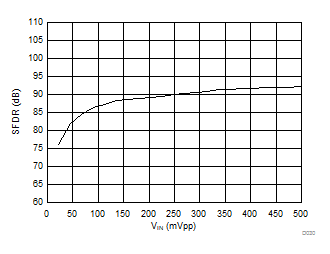

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D030_SBAS655.gif
AMC1304x25
Figure 35. Spurious-Free Dynamic Range vs
Input Signal Amplitude
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D032_SBAS655.gif
AMC1304x05, 4096-point FFT, VIN = 100 mVPP
Figure 37. Frequency Spectrum with 1-kHz Input Signal
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D034_SBAS655.gif
AMC1304x25, 4096-point FFT, VIN = 500 mVPP

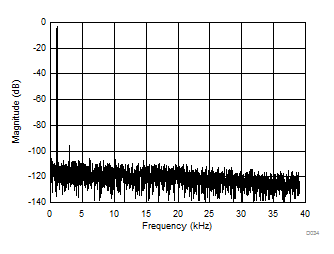

Figure 39. Frequency Spectrum with 1-kHz Input Signal

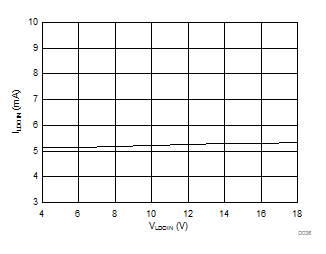

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D036_SBAS655.gif
Figure 41. LDO Input Supply Current vs
LDO Input Supply Voltage

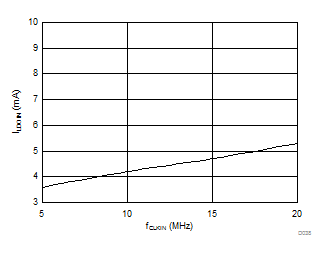

AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D038_SBAS655.gif
Figure 43. LDO Input Supply Current vs Clock Frequency
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D040_SBAS655.gif

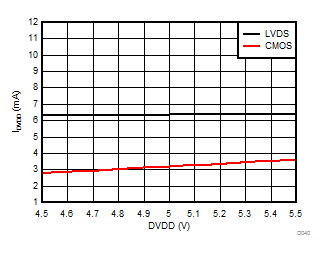

Figure 45. Controller-Side Supply Current vs
Controller-Side Supply Voltage (5 V, min)
AMC1304L05 AMC1304L25 AMC1304M05 AMC1304M25 D042_SBAS655.gif
Figure 47. Controller-Side Supply Current vs
Clock Frequency
