7.13 Typical Characteristics

At TA = 25°C, AVDD = 5.0 V, DVDD = 3.3 V, AINP = –250 mV to 250 mV, AINN = 0 V, fCLKIN = 20 MHz, and sinc3 filter with OSR = 256, unless otherwise noted.
AMC1305L25 AMC1305M05 AMC1305M25 D001_SBAS654.gif
Figure 6. Input Current vs Input Common-Mode Voltage
AMC1305L25 AMC1305M05 AMC1305M25 D003_SBAS654.gif
Figure 8. Integral Nonlinearity vs Input Signal Amplitude
AMC1305L25 AMC1305M05 AMC1305M25 D005_SBAS654.gif
AMC1305x25
Figure 10. Offset Error vs High-Side Supply Voltage
AMC1305L25 AMC1305M05 AMC1305M25 D007_SBAS654.gif
AMC1305x25
Figure 12. Offset Error vs Temperature
AMC1305L25 AMC1305M05 AMC1305M25 D009_SBAS654.gif

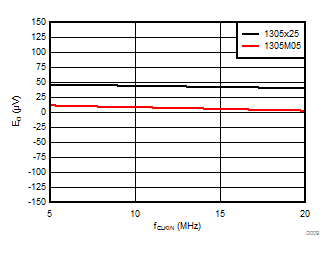

Figure 14. Offset Error vs Clock Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D011_SBAS654.gif
Figure 16. Gain Error vs Temperature
AMC1305L25 AMC1305M05 AMC1305M25 D013_SBAS654.gif
Figure 18. Power-Supply Rejection Ratio vs
Ripple Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D015_SBAS654.gif

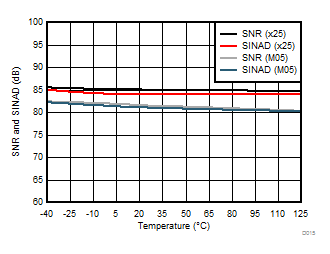

Figure 20. SNR and SINAD vs Temperature
AMC1305L25 AMC1305M05 AMC1305M25 D017_SBAS654.gif
Figure 22. SNR and SINAD vs Input Signal Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D019_SBAS654.gif
AMC1305M05
Figure 24. SNR and SINAD vs Input Signal Amplitude
AMC1305L25 AMC1305M05 AMC1305M25 D021_SBAS654.gif
Figure 26. Total Harmonic Distortion vs Temperature
AMC1305L25 AMC1305M05 AMC1305M25 D023_SBAS654.gif
Figure 28. Total Harmonic Distortion vs
Input Signal Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D025_SBAS654.gif
AMC1305M05
Figure 30. Total Harmonic Distortion vs
Input Signal Amplitude
AMC1305L25 AMC1305M05 AMC1305M25 D027_SBAS654.gif
Figure 32. Spurious-Free Dynamic Range vs Temperature
AMC1305L25 AMC1305M05 AMC1305M25 D029_SBAS654.gif
Figure 34. Spurious-Free Dynamic Range vs
Input Signal Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D031_SBAS654.gif
AMC1305M05
Figure 36. Spurious-Free Dynamic Range vs
Input Signal Amplitude

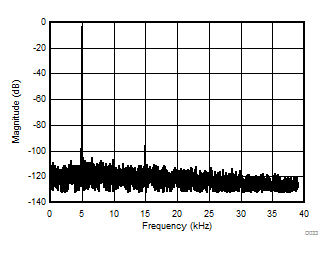

AMC1305L25 AMC1305M05 AMC1305M25 D033_SBAS654.gif
AMC1305x25, 4096-point FFT, VIN = 500 mVPP
Figure 38. Frequency Spectrum with 5-kHz Input Signal
AMC1305L25 AMC1305M05 AMC1305M25 D035_SBAS654.gif
AMC1305M05, 4096-point FFT, VIN = 500 mVPP
Figure 40. Frequency Spectrum with 5-kHz Input Signal
AMC1305L25 AMC1305M05 AMC1305M25 D037_SBAS654.gif
Figure 42. High-Side Supply Current vs Temperature
AMC1305L25 AMC1305M05 AMC1305M25 D039_SBAS654.gif
Figure 44. Controller-Side Supply Current vs
Controller-Side Supply Voltage (3.3 V, nom)
AMC1305L25 AMC1305M05 AMC1305M25 D041_SBAS654.gif

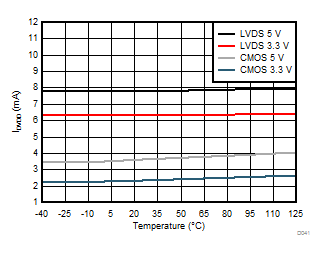

Figure 46. Controller-Side Supply Current vs Temperature

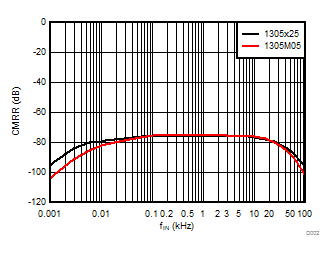

AMC1305L25 AMC1305M05 AMC1305M25 D002_SBAS654.gif
Figure 7. Common-Mode Rejection Ratio vs
Input Signal Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D004_SBAS654.gif
Figure 9. Integral Nonlinearity vs Temperature
AMC1305L25 AMC1305M05 AMC1305M25 D006_SBAS654.gif
AMC1305M05
Figure 11. Offset Error vs High-Side Supply Voltage

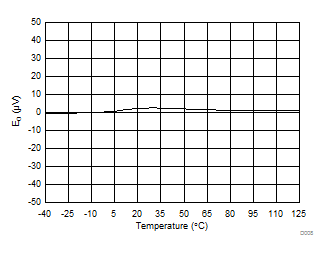

AMC1305L25 AMC1305M05 AMC1305M25 D008_SBAS654.gif
AMC1305M05
Figure 13. Offset Error vs Temperature
AMC1305L25 AMC1305M05 AMC1305M25 D010_SBAS654.gif
Figure 15. Gain Error vs High-Side Supply Voltage

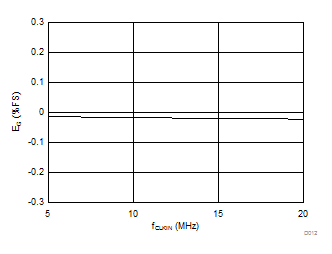

AMC1305L25 AMC1305M05 AMC1305M25 D012_SBAS654.gif
Figure 17. Gain Error vs Clock Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D014_SBAS654.gif
Figure 19. SNR and SINAD vs High-Side Supply Voltage
AMC1305L25 AMC1305M05 AMC1305M25 D016_SBAS654.gif
Figure 21. SNR and SINAD vs Clock Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D018_SBAS654.gif
AMC1305x25
Figure 23. SNR and SINAD vs Input Signal Amplitude
AMC1305L25 AMC1305M05 AMC1305M25 D020_SBAS654.gif
Figure 25. Total Harmonic Distortion vs
High-Side Supply Voltage
AMC1305L25 AMC1305M05 AMC1305M25 D022_SBAS654.gif
Figure 27. Total Harmonic Distortion vs Clock Frequency

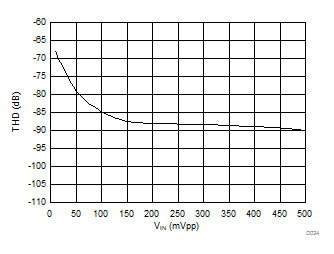

AMC1305L25 AMC1305M05 AMC1305M25 D024_SBAS654.gif
AMC1305x25
Figure 29. Total Harmonic Distortion vs
Input Signal Amplitude

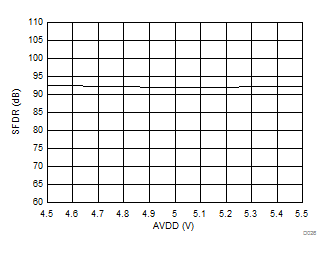

AMC1305L25 AMC1305M05 AMC1305M25 D026_SBAS654.gif
Figure 31. Spurious-Free Dynamic Range vs
High-Side Supply Voltage
AMC1305L25 AMC1305M05 AMC1305M25 D028_SBAS654.gif
Figure 33. Spurious-Free Dynamic Range vs
Clock Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D030_SBAS654.gif
AMC1305x25

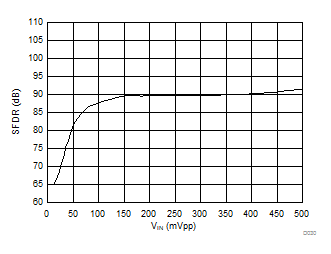

Figure 35. Spurious-Free Dynamic Range vs
Input Signal Amplitude

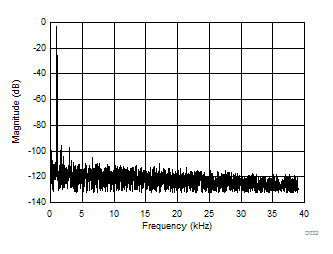

AMC1305L25 AMC1305M05 AMC1305M25 D032_SBAS654.gif
AMC1305x25, 4096-point FFT, VIN = 500 mVPP
Figure 37. Frequency Spectrum with 1-kHz Input Signal
AMC1305L25 AMC1305M05 AMC1305M25 D034_SBAS654.gif
AMC1305M05, 4096-point FFT, VIN = 500 mVPP
Figure 39. Frequency Spectrum with 1-kHz Input Signal

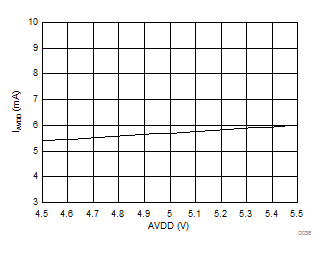

AMC1305L25 AMC1305M05 AMC1305M25 D036_SBAS654.gif
Figure 41. High-Side Supply Current vs
High-Side Supply Voltage
AMC1305L25 AMC1305M05 AMC1305M25 D038_SBAS654.gif
Figure 43. High-Side Supply Current vs Clock Frequency
AMC1305L25 AMC1305M05 AMC1305M25 D040_SBAS654.gif
Figure 45. Controller-Side Supply Current vs
Controller-Side Supply Voltage (5 V, nom)
AMC1305L25 AMC1305M05 AMC1305M25 D042_SBAS654.gif
Figure 47. Controller-Side Supply Current vs
Clock Frequency
