Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER MIN TYP MAX UNIT
tCLK CLKIN, CLKIN_N clock period 49.75 50 200 ns
tHIGH CLKIN, CLKIN_N clock high time 19.9 25 120 ns
tLOW CLKIN, CLKIN_N clock low time 19.9 25 120 ns
tD Falling edge of CLKIN, CLKIN_N to DOUT, DOUT_N valid delay,
CLOAD = 5 pF
0 15 ns
tISTART Interface startup time
(DVDD at 3.0 V min to DOUT, DOUT_N valid with AVDD ≥ 4.5 V)
32 32 CLKIN cycles
tASTART Analog startup time (AVDD step up to 4.5 V with DVDD ≥ 3.0 V) 1 ms

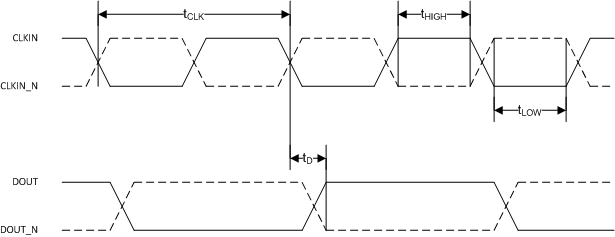

AMC1305L25 AMC1305M05 AMC1305M25 tim_int_bas654.gifFigure 1. Digital Interface Timing

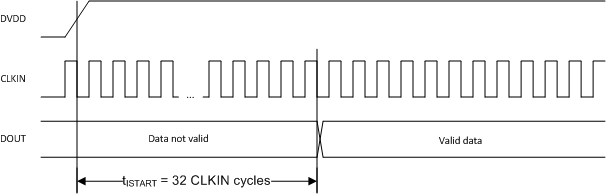

AMC1305L25 AMC1305M05 AMC1305M25 tim_start_bas654.gifFigure 2. Digital Interface Startup Timing
