7 Parameter Measurement Information

7.1 Timing Diagrams

ADS41B29 ADS41B49 tim_lvds_vo_level_bas483.gif
1. With external 100-Ω termination.
Figure 48. LVDS Output Voltage Levels

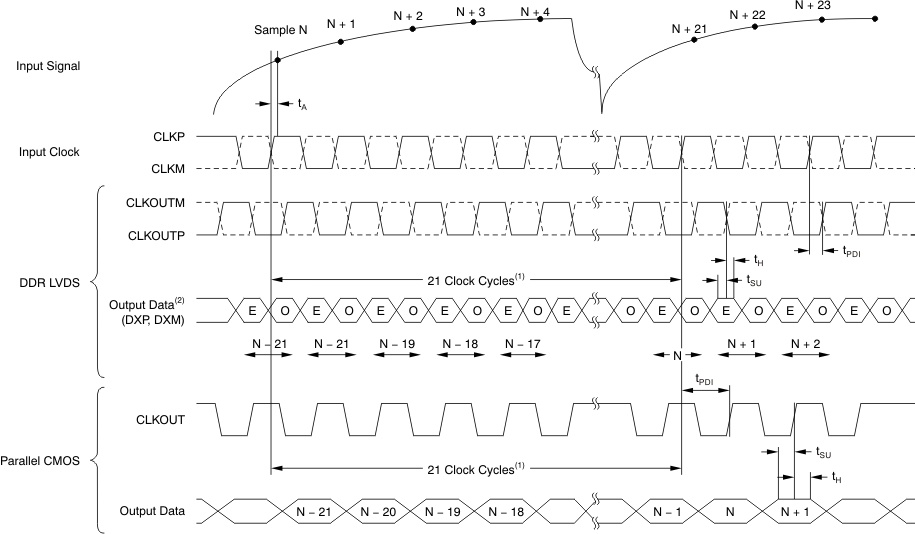

ADS41B29 ADS41B49 tim_latency_mode_bas486.gif
1. At higher sampling frequencies, tDPI is greater than one clock cycle which then makes the overall latency = ADC latency + 1.
2. E = Even bits (D0, D2, D4, and so forth). O = Odd bits (D1, D3, D5, and so forth).
Figure 49. Latency Diagram
ADS41B29 ADS41B49 tim_lvds_mode_bas483.gif
1. Dn = bits D0, D2, D4, and so forth. Dn + 1 = Bits D1, D3, D5, and so forth.
Figure 50. LVDS Mode Timing

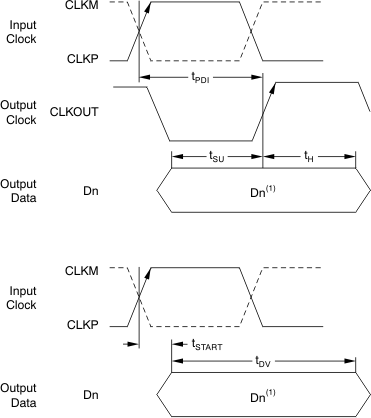

ADS41B29 ADS41B49 tim_latency_bas483.gif
Dn = bits D0, D1, D2, and so forth.
Figure 51. CMOS Mode Timing

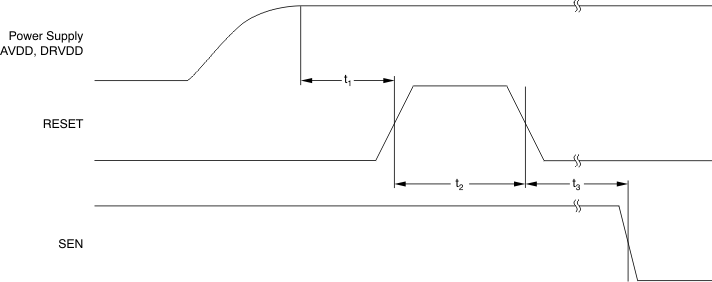

ADS41B29 ADS41B49 tim_reset_bas483.gif
NOTE: A high pulse on the RESET pin is required in the serial interface mode in case of initialization through hardware reset. For parallel interface operation, RESET must be permanently tied high.
Figure 52. Reset Timing Diagram
