3.1 Accuracy and Noise Performance

The following table shows accuracy and noise results of the hardware at 25°C. A differential DC voltage is applied to a random input. The result is compared against the expected value. The effective number of bits (NEFF) and the noise-free bits (NNFREE) are calculated by a histogram with 65535 samples at a sampling speed of 20 kSPS. The measured value is the mean of the histogram.

Table 3-1 Accuracy and Noise Performance
Input VREF Measured Expected |Δcode| Sigma NEFF NNFREE
0 V ±12.288 V 32767 32768 1 0.56 16.8 bit 14.1 bit
0 V ±2.56 V 32765 32768 3 0.75 16.4 bit 13.7 bit
5.0 V ±6.144 V 59444 59434 10 0.74 16.4 bit 13.7 bit
10 V ±12.288 V 59442 59434 8 0.61 16.7 bit 14.0 bit
–10 V ±12.288 V 6092 6101 9 0.62 16.6 bit 13.9 bit
10.5 mA 5.12 V 16124 16128 4 0.73 16.4 bit 13.7 bit

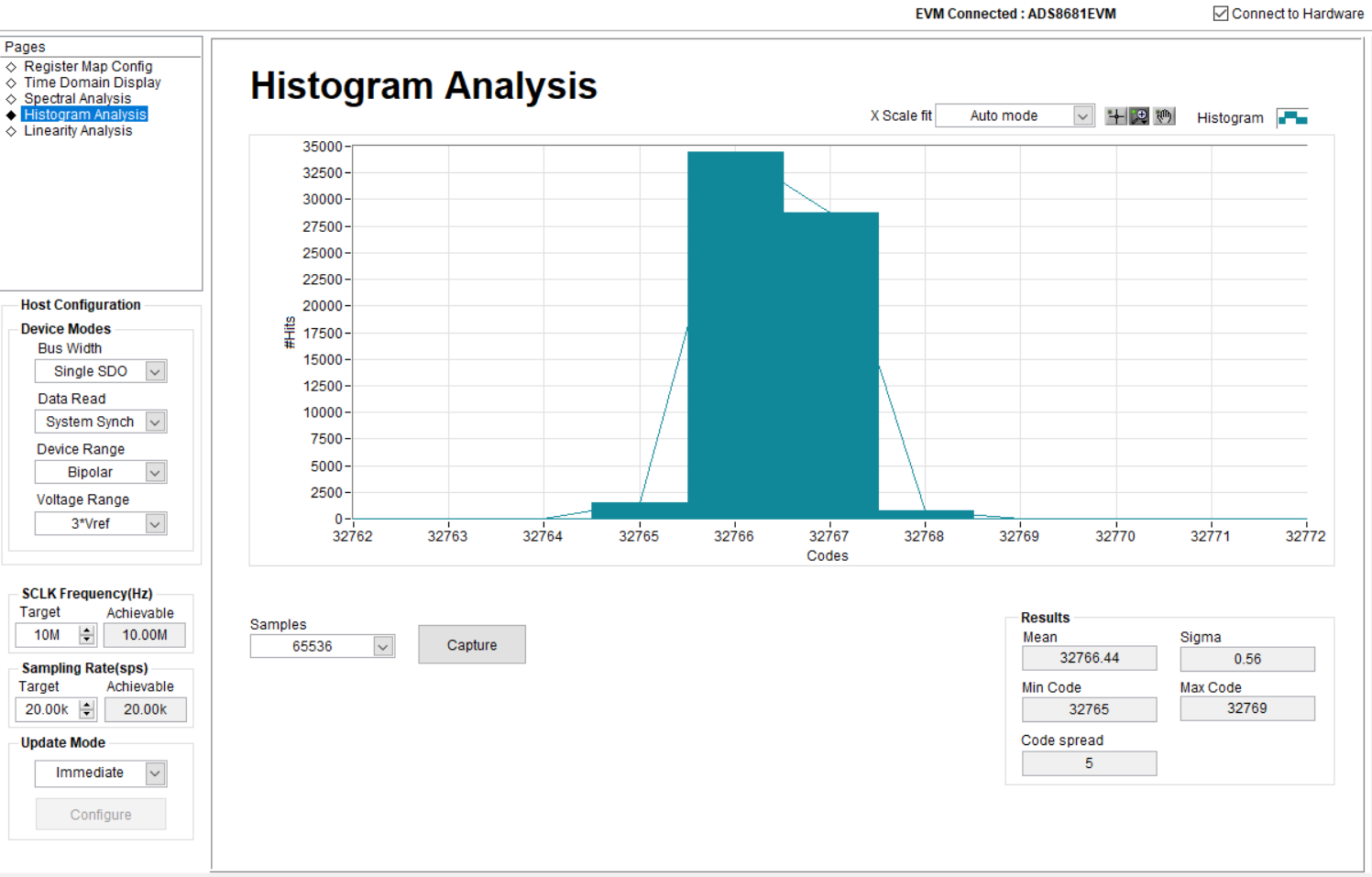

As an example, the following histogram shows the 0-V differential input with ±12.288-V voltage input range using TI's ADS8681EVM-PDK ecosystem software.

GUID-20220610-SS0I-XGCB-W6BW-L0BMMSDZB6DQ-low.pngFigure 3-1 Histogram Screen Shot
