Application Curves

VINP = 5.0 VVISO = 5.4 VBandwidth = 20 MHz
Figure 8-2 VISO Ripple, 5.4-V Output, 10% Load
VINP = 5.0 VVISO = 5.0 VBandwidth = 20 MHz
Figure 8-4 VISO Ripple, 5.0-V Output, 10% Load
VINP = 5.0 VVISO = 3.7 VBandwidth = 20 MHz
Figure 8-6 VISO Ripple, 3.7-V Output, 10% Load
VINP = 5.0 VVISO = 3.3 VBandwidth = 20 MHz
Figure 8-8 VISO Ripple, 3.3-V Output, 10% Load
GUID-03BD4C47-5F61-4645-BCEA-188CD409547F-low.gifFigure 8-10 VISO Load Transient Response, 10% to 90% Load Step, 5.0-V Input, 5.4-V Output
GUID-683695D2-1BE5-4439-B7F5-93FBF6AD8321-low.gifFigure 8-12 VISO Load Transient Response, 10% to 90% Load Step, 5.0-V Input, 5.0-V Output
GUID-7BDB71B2-3781-4F41-929D-BC60A02A5715-low.gifFigure 8-14 VISO Load Transient Response, 10% to 90% Load Step, 5.0-V Input, 3.7-V Output
GUID-7E2366F1-0D13-48AE-8030-EF04E2A598A7-low.gifFigure 8-16 VISO Load Transient Response, 10% to 90% Load Step, 5.0-V Input, 3.3-V Output
GUID-DD92D0DB-F7DA-49EB-B361-4016A72B6E46-low.gifFigure 8-18 VISO Soft Start at 10% Rated Load, 5.0-V Input, 5.4-V Output

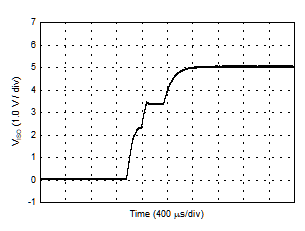

GUID-D2E3E081-0696-46D1-B02D-1F381C9F1AE1-low.gifFigure 8-20 VISO Soft Start at 10% Rated Load, 5.0-V Input, 5.0-V Output
GUID-5FAAEEA5-18A2-4851-9DC6-6746EB3ABDDE-low.gifFigure 8-22 VISO Soft Start at 10% Rated Load, 5.0-V Input, 3.7-V Output
GUID-74F7F5F6-E8B6-4E48-A988-71C6F6DAAB66-low.gifFigure 8-24 VISO Soft Start at 10% Rated Load, 5.0-V Input, 3.3-V Output
VINP = 5.0 VVISO = 5.4 VBandwidth = 20 MHz
Figure 8-3 VISO Ripple, 5.4-V Output, 90% Load
VINP = 5.0 VVISO = 5.0 VBandwidth = 20 MHz
Figure 8-5 VISO Ripple, 5.0-V Output, 90% Load
VINP = 5.0 VVISO = 3.7 VBandwidth = 20 MHz
Figure 8-7 VISO Ripple, 3.7-V Output, 90% Load
VINP = 5.0 VVISO = 3.3 VBandwidth = 20 MHz
Figure 8-9 VISO Ripple, 3.3-V Output, 90% Load
GUID-DD57C69E-6559-43EA-8177-ADF5283F974F-low.gifFigure 8-11 VISO Load Transient Response, 90% to 10% Load Step, 5.0-V Input, 5.4-V Output

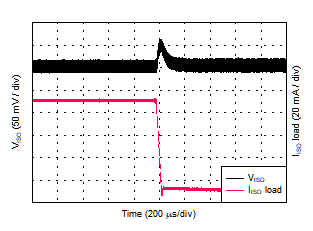

GUID-B92962EA-6BC5-413C-B6FB-462079F34213-low.gifFigure 8-13 VISO Load Transient Response, 90% to 10% Load Step, 5.0-V Input, 5.0-V Output
GUID-C8BF9552-B11F-472F-8E81-2487F9122371-low.gifFigure 8-15 VISO Load Transient Response, 90% to 10% Load Step, 5.0-V Input, 3.7-V Output
GUID-7E2366F1-0D13-48AE-8030-EF04E2A598A7-low.gifFigure 8-17 VISO Load Transient Response, 90% to 10% Load Step, 5.0-V Input, 3.3-V Output
GUID-22DE4A4B-9BF1-4A4A-89AB-8DA1A8CEE166-low.gifFigure 8-19 VISO Soft Start at 90% Rated Load, 5.0-V Input, 5.4-V Output

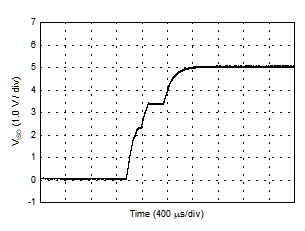

GUID-3AE23D7C-08FC-4E69-B378-58545363C919-low.gifFigure 8-21 VISO Soft Start at 90% Rated Load, 5.0-V Input, 5.0-V Output
GUID-68EE88C4-5C5A-4A88-B5C3-55EC40BE7E5B-low.gifFigure 8-23 VISO Soft Start at 90% Rated Load, 5.0-V Input, 3.7-V Output
GUID-268871D9-6BED-444E-8A9C-797621811F21-low.gifFigure 8-25 VISO Soft Start at 90% Rated Load, 5.0-V Input, 3.3-V Output
