3 Pin Configuration and Functions

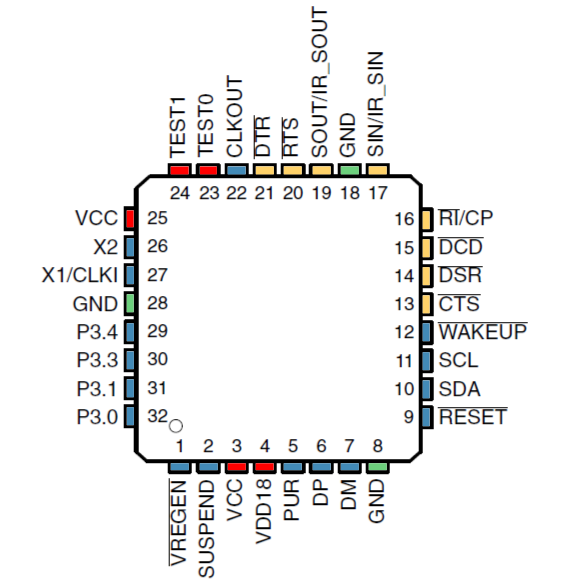

3.1 Pin Diagrams

RHB Package
32-Pin VQFN
Top View

TUSB3410 TUSB3410I VF_pack_top_view_lls519.png

VF Package
32-Pin LQFP
Bottom View

TUSB3410 TUSB3410I RHB_pack_bot_view_lls519.png

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
CLKOUT 22 O Clock output (controlled by bits 2 (CLKOUTEN) and 3(CLKSLCT) in the MODECNFG register (see (1) and Section 5.5.5.5)
CTS 13 I UART: Clear to send(4)
DCD 15 I UART: Data carrier detect(4)
DM 7 I/O Upstream USB port differential data minus
DP 6 I/O Upstream USB port differential data plus
DSR 14 I UART: Data set ready(4)
DTR 21 O UART: Data terminal ready(1)
GND 8, 18, 28 GND Digital ground
P3.0 32 I/O General-purpose I/O 0 (port 3, terminal 0)(3)(5)(8)
P3.1 31 I/O General-purpose I/O 1 (port 3, terminal 1)(3)(5)(8)
P3.3 30 I/O General-purpose I/O 3 (port 3, terminal 3)(3)(5)(8)
P3.4 29 I/O General-purpose I/O 4 (port 3, terminal 4)(3)(5)(8)
PUR 5 O Pullup resistor connection(2)
RESET 9 I Device master reset input(4)
RI/CP 16 I UART: Ring indicator(4)
RTS 20 O UART: Request to send(1)
SCL 11 O Master I2C controller: clock signal(1)
SDA 10 I/O Master I2C controller: data signal(1)(5)
SIN/IR_SIN 17 I UART: Serial input data / IR Serial data input(6)
SOUT/IR_SOUT 19 O UART: Serial output data / IR Serial data output(7)
SUSPEND 2 O Suspend indicator terminal(3). When this terminal is asserted high, the device is in suspend mode.
TEST0 23 I Test input (for factory test only). This terminal must be tied to VCC through a 10-kΩ resistor.
TEST1 24 I Test input (for factory test only)(5). This terminal must be tied to VCC through a 10-kΩ resistor.
VCC 3, 25 PWR 3.3 V
VDD18 4 PWR 1.8-V supply. An internal voltage regulator generates this supply voltage when terminal VREGEN is low. When VREGEN is high, 1.8 V must be supplied externally.
VREGEN 1 I This active-low terminal is used to enable the 3.3-V to 1.8-V voltage regulator.
WAKEUP 12 I Remote wake-up request terminal. When low, wakes up system(5)
X1/CLKI 27 I 12-MHz crystal input or clock input
X2 26 O 12-MHz crystal output
(1) 3-state CMOS output (±4-mA drive and sink)
(2) 3-state CMOS output (±8-mA drive and sink)
(3) 3-state CMOS output (±12-mA drive and sink)
(4) TTL-compatible, hysteresis input
(5) TTL-compatible, hysteresis input, with internal 100-µA active pullup resistor
(6) TTL-compatible input without hysteresis, with internal 100-µA active pullup resistor
(7) Normal or IR mode: 3-state CMOS output (±4-mA drive and sink)
(8) The MCU treats the outputs as open drain types in that the output can be driven low continuously, but a high output is driven for two clock cycles and then the output is high impedance.
