Parameter Measurement Information

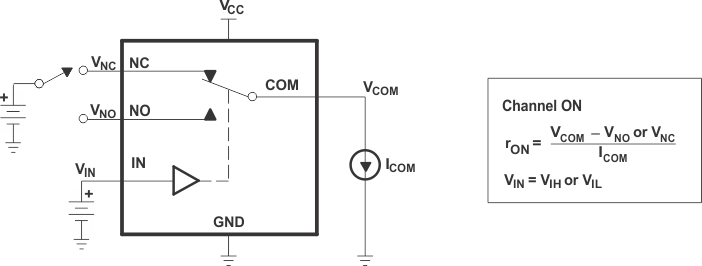

TS5A9411 fig1_cds200.gif Figure 5. ON-State Resistance
TS5A9411 fig2_cds200.gif
INC(OFF), INC(PWROFF), INO(OFF), INO(PWROFF), ICOM(OFF), ICOM(PWROFF)

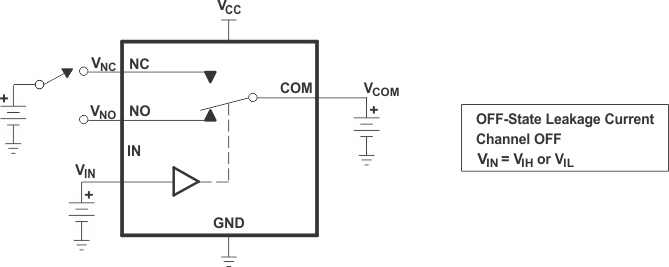

Figure 6. OFF-State Leakage Current
TS5A9411 fig3_cds200.gif
ICOM(ON), INC(ON), INO(ON)
Figure 7. ON-State Leakage Current
TS5A9411 fig4_cds200.gif
CI, CCOM(ON), CNC(OFF), CNO(OFF), CNC(ON), CNO(ON)
Figure 8. Capacitance
TS5A9411 fig5_cds200.gif
All input pulses are supplied by generators having the following characteristics:
  • PRR ≤ 10 MHz
  • ZO = 50 Ω
  • tr < 5 ns
  • tf < 5 ns
CL includes probe and jig capacitance.

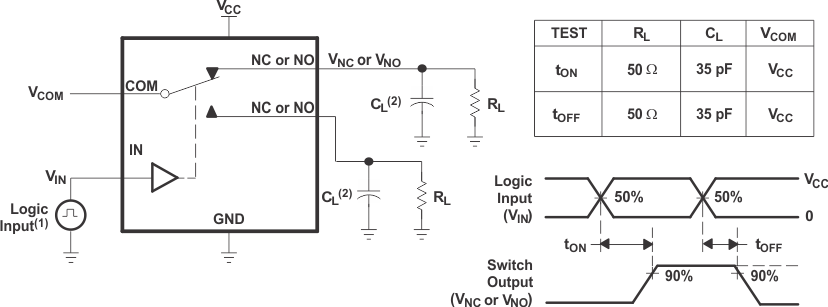

Figure 9. Turnon and Turnoff Time
TS5A9411 fig6_cds200.gif
All input pulses are supplied by generators having the following characteristics:
  • PRR ≤ 10 MHz
  • ZO = 50 Ω
  • tr < 5 ns
  • tf < 5 ns
CL includes probe and jig capacitance.
Figure 10. Break-Before-Make Time

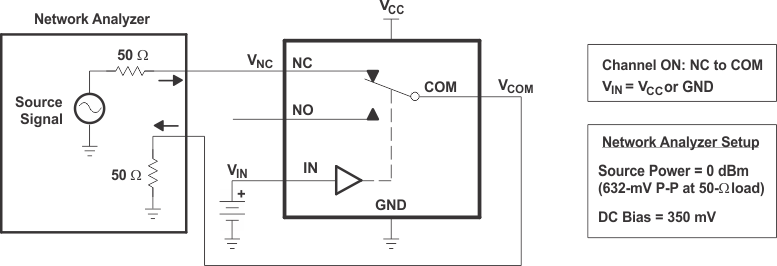

TS5A9411 fig7_cds200.gif Figure 11. Bandwidth

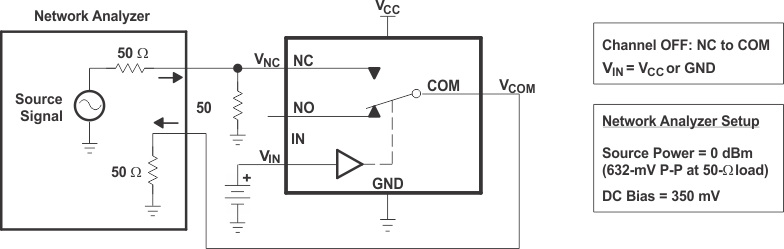

TS5A9411 fig8_cds200.gif Figure 12. OFF Isolation
TS5A9411 fig9_cds200.gif Figure 13. Crosstalk
TS5A9411 fig10_cds200.gif
All input pulses are supplied by generators having the following characteristics:
  • PRR ≤ 10 MHz
  • ZO = 50 Ω
  • tr < 5 ns
  • tf < 5 ns
CL includes probe and jig capacitance.

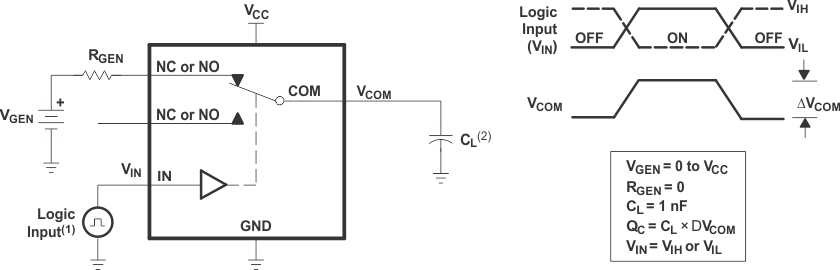

Figure 14. Charge Injection
TS5A9411 fig11_cds200.gif
CL includes probe and jig capacitance.
Figure 15. Total Harmonic Distortion
