Parameter Measurement Information

TS5A23166 pmi_12_cds196.gifFigure 11. ON-State Resistance (ron)
TS5A23166 pmi_13_cds196.gifFigure 12. OFF-State Leakage Current (ICOM(OFF), INC(OFF), ICOM(PWROFF), INC(PWR(FF))
TS5A23166 pmi_14_cds196.gifFigure 13. ON-State Leakage Current (ICOM(ON), INC(ON))
TS5A23166 pmi_15_cds196.gifFigure 14. Capacitance (CI, CCOM(OFF), CCOM(ON), CNC(OFF), CNC(ON))
TS5A23166 pmi_16_cds196.gif
All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
CL includes probe and jig capacitance.
Figure 15. Turnon (tON) and Turnoff Time (tOFF)

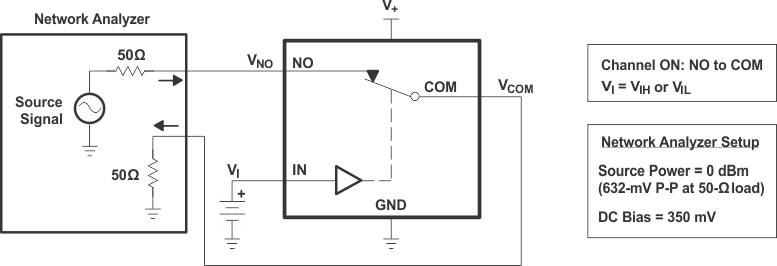

TS5A23166 pmi_17_cds196.gifFigure 16. Bandwidth (BW)
TS5A23166 pmi_18_cds196.gifFigure 17. OFF Isolation (OISO)
TS5A23166 pmi_19_cds196.gifFigure 18. Crosstalk (XTALK)
TS5A23166 pmi_20_cds196.gif
CL includes probe and jig capacitance.
All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
Figure 19. Charge Injection (QC)
TS5A23166 pmi_21_cds196.gif
CL includes probe and jig capacitance.
Figure 20. Total Harmonic Distortion (THD)
