7 Parameter Measurement Information

TS5A22364 onresist_cds260.gif Figure 13. ON-State Resistance (Ron)

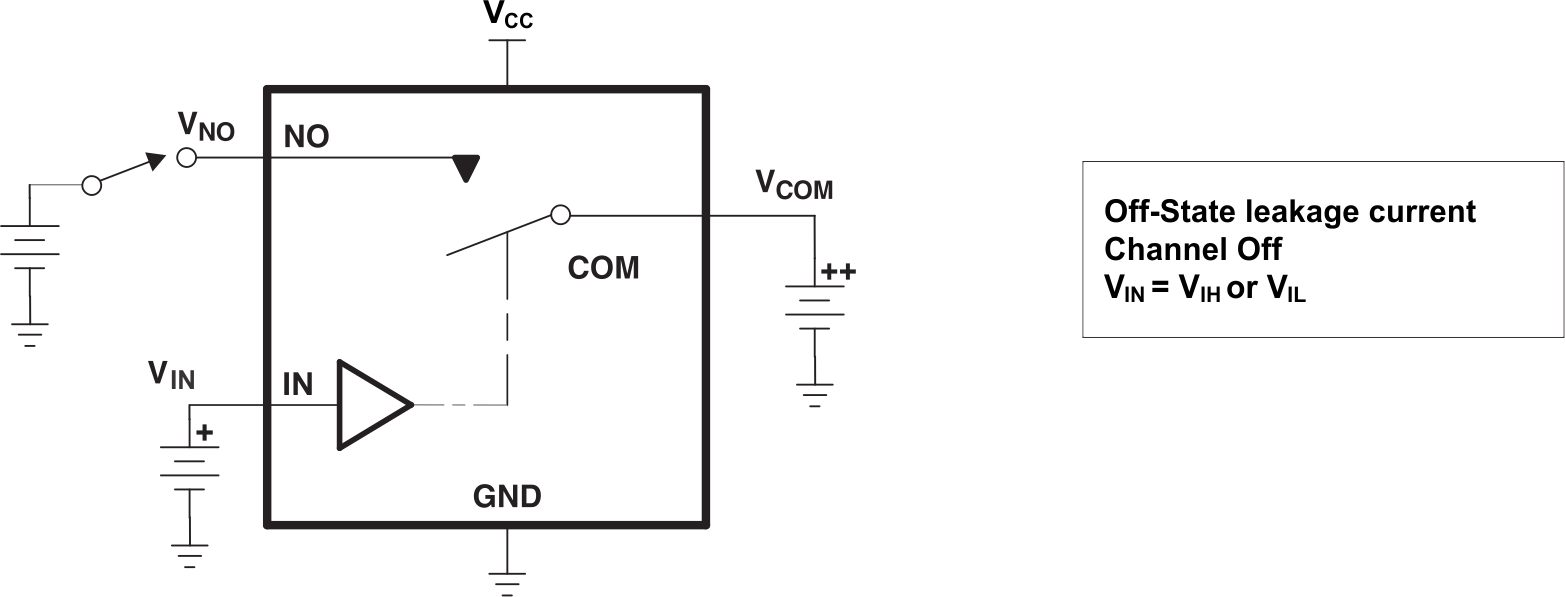

TS5A22364 offleak_cds260.gif Figure 14. OFF-State Leakage Current (ICOM(OFF), INO(OFF))
TS5A22364 onleak_cds260.gif Figure 15. ON-State Leakage Current
(ICOM(ON), INO(ON))

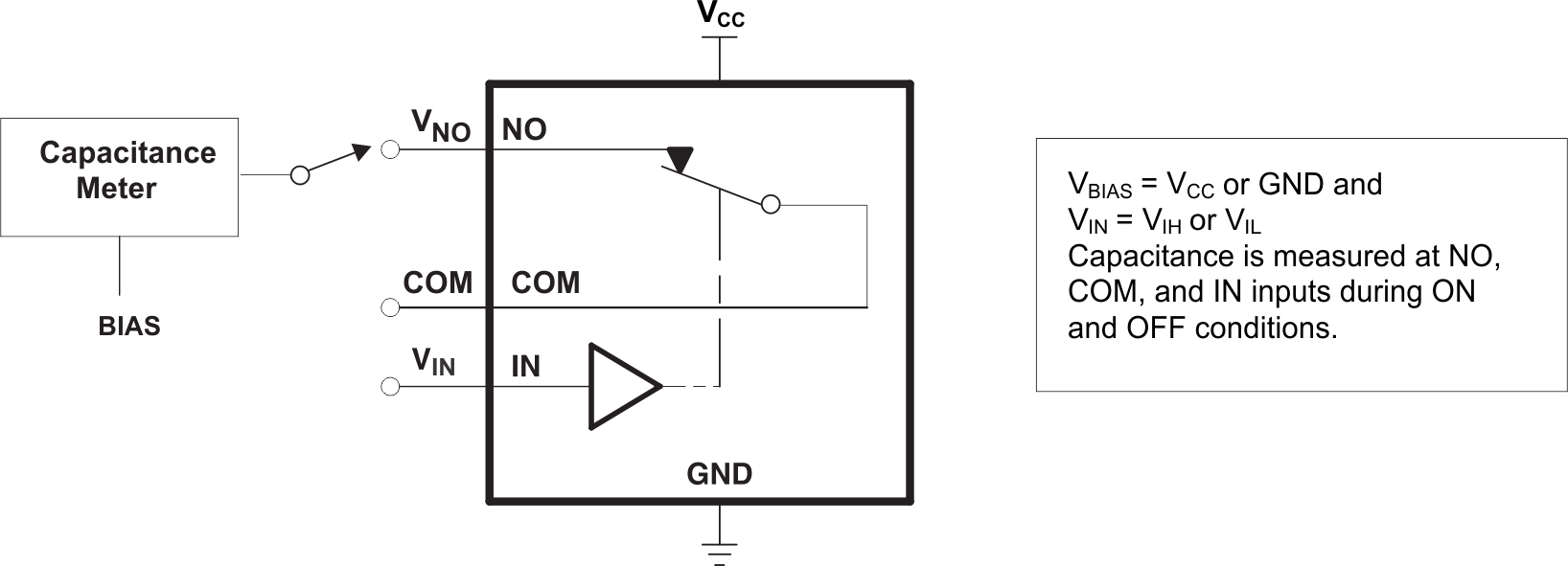

TS5A22364 capacitance_cds260.gif Figure 16. Capacitance
(CI, CCOM(OFF), CCOM(ON), CNO(OFF), CNO(ON))

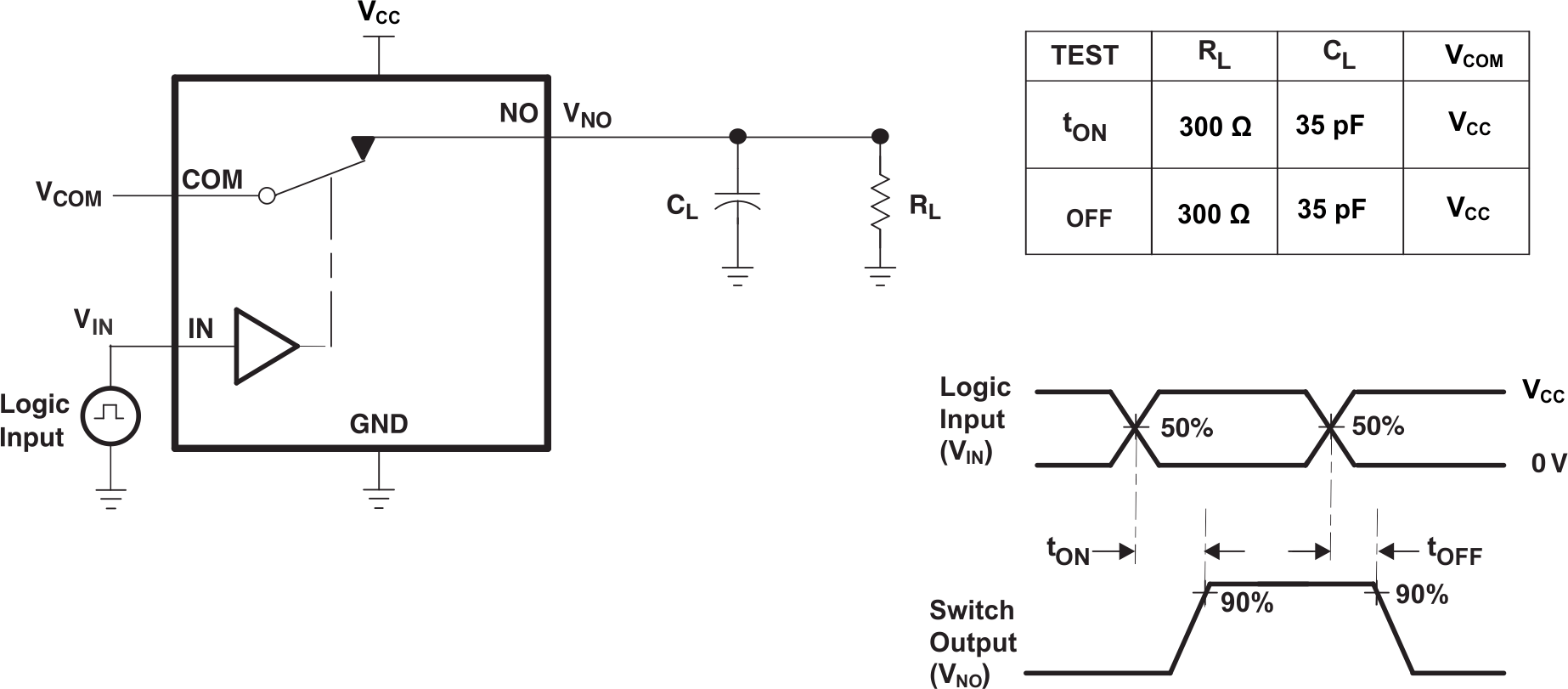

TS5A22364 ton_toff_cds260.gif
A. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.
Figure 17. Turnon (tON) and Turnoff Time (tOFF)
TS5A22364 tbbm_64_cds260.gif
A. CL includes probe and jig capacitance.
B. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
Figure 18. Break-Before-Make Time (tBBM)
TS5A22364 bandwidth_cds260.gif Figure 19. Bandwidth (BW)

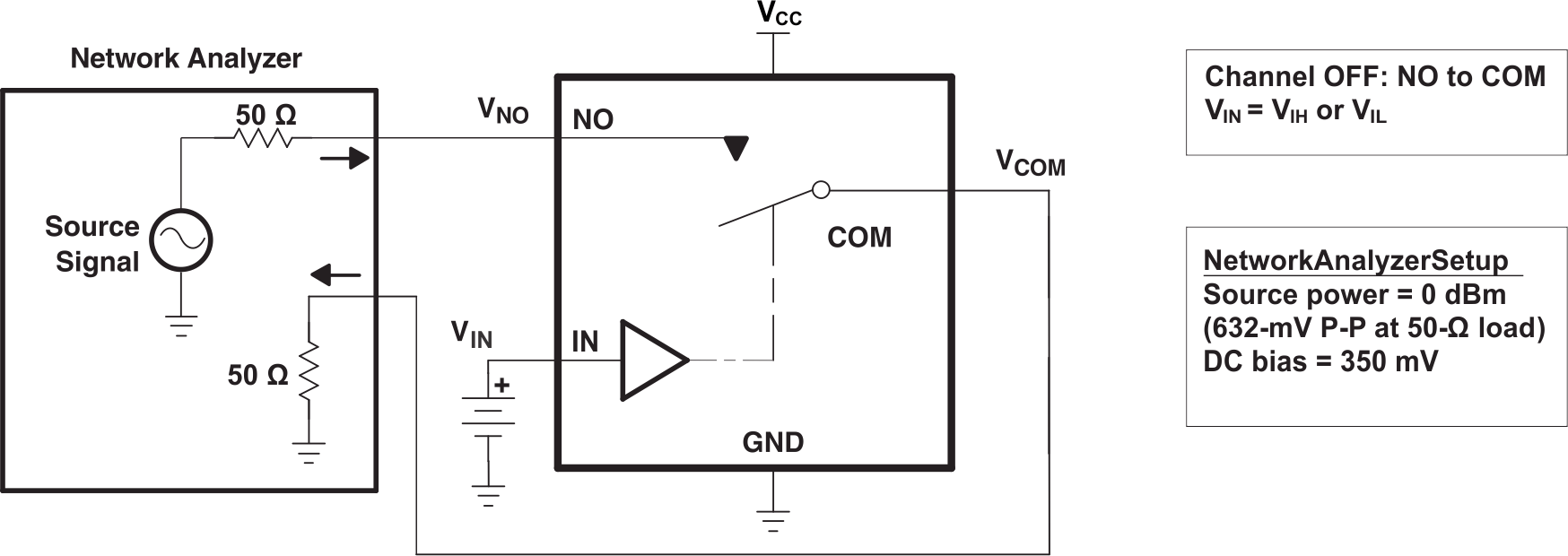

TS5A22364 offiso_cds260.gif Figure 20. OFF Isolation (OISO)

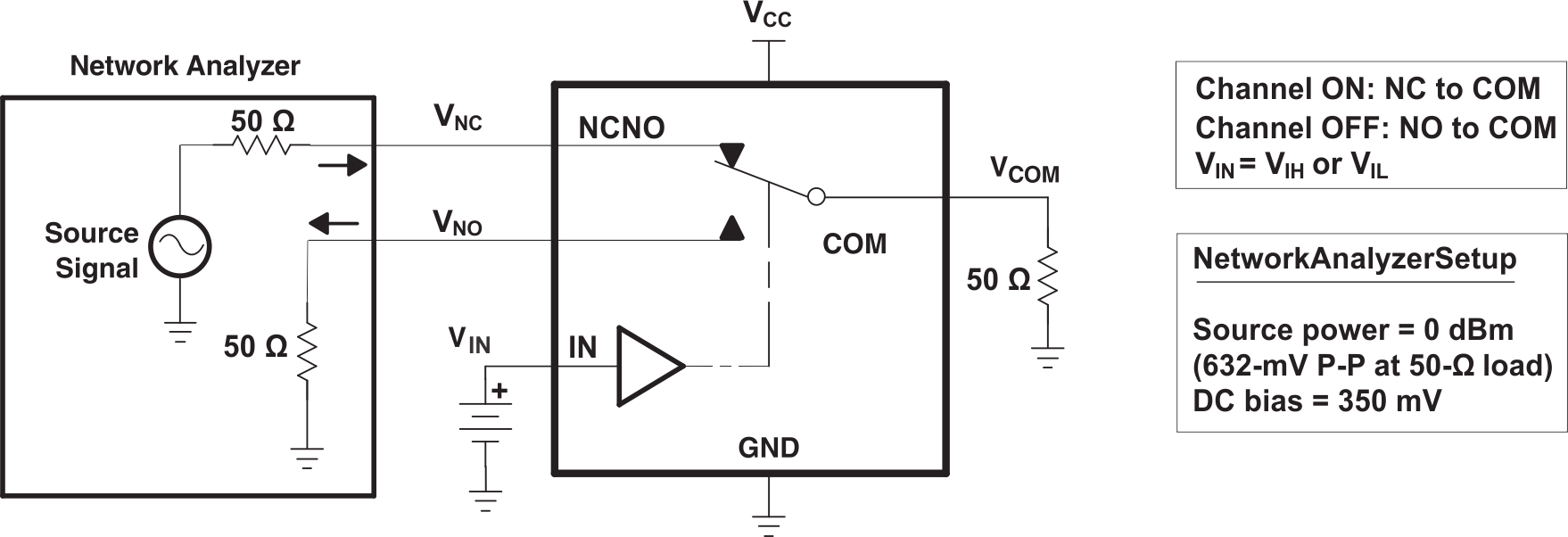

TS5A22364 xtalk_cds260.gif Figure 21. Crosstalk (XTALK)
TS5A22364 chargeinjection_cds260.gif
A. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.
Figure 22. Charge Injection (QC)

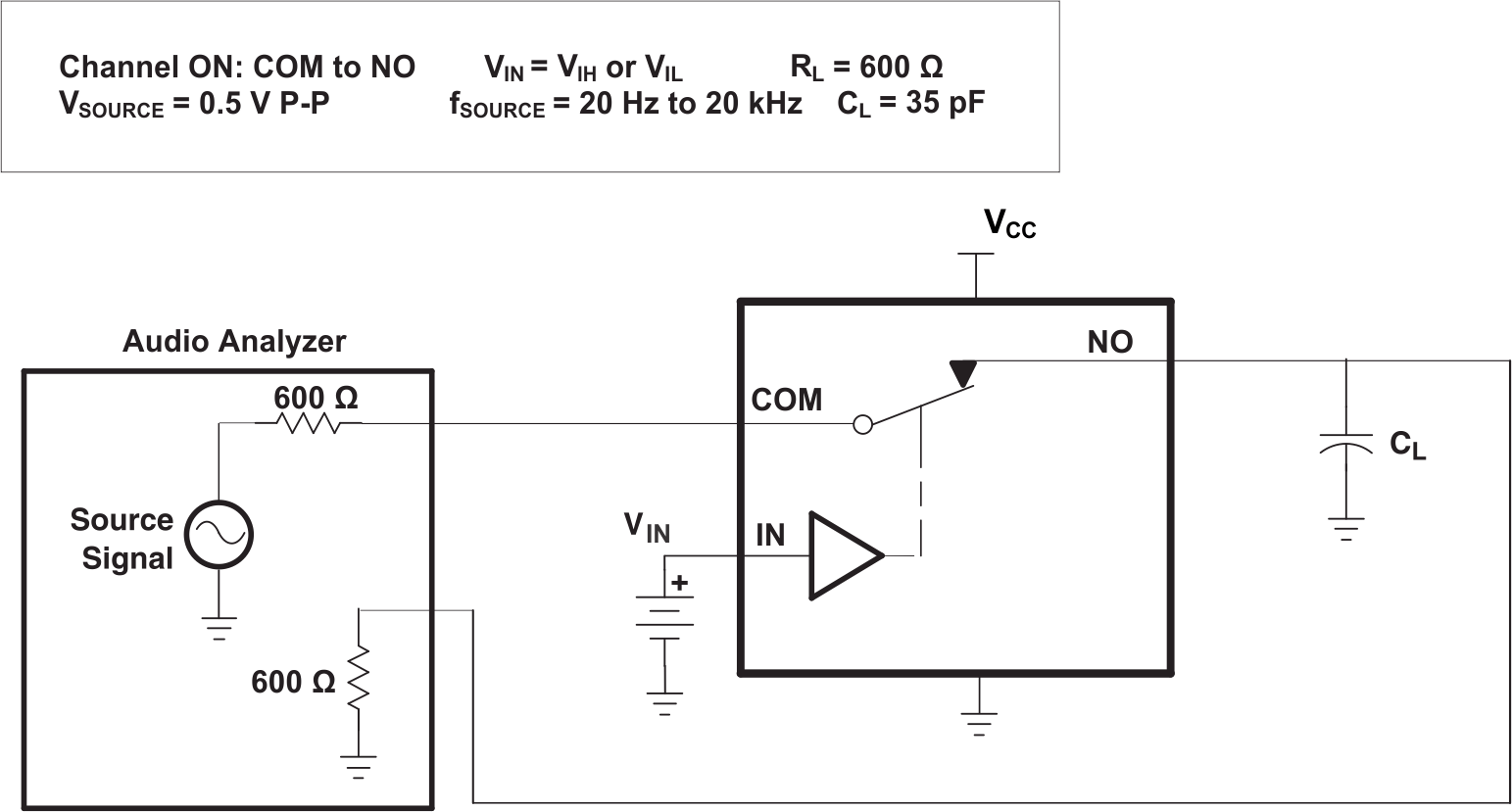

TS5A22364 thd_cds260.gif
CL includes probe and jig capacitance.
Figure 23. Total Harmonic Distortion (THD)
