5 Pin Configuration and Functions

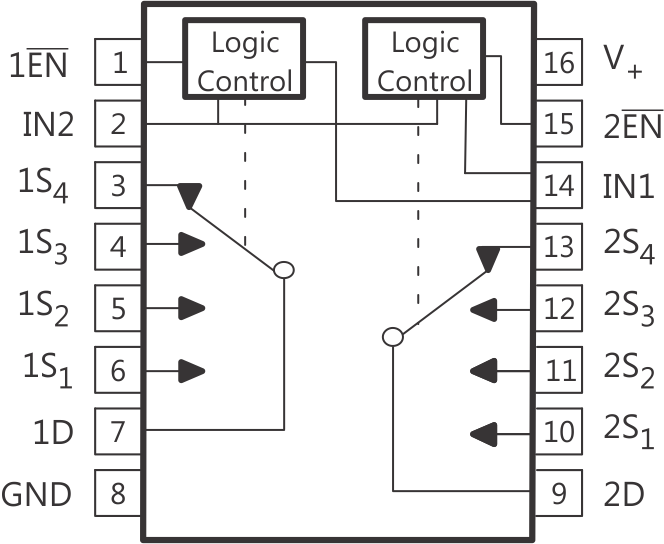

D, DBQ, DGV, and PW Package
16-Pin SOIC, SSOP, TVSOP and TSSOP
(Top View)
TS3A5017 po_d_cds188.gif

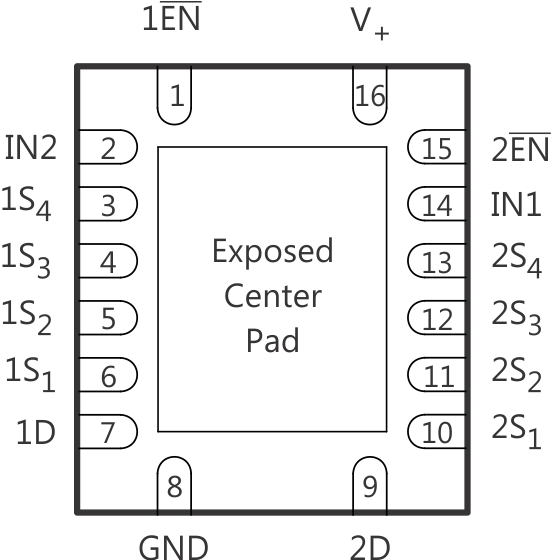

RGY Package
16-Pin VQFN
(Top View)
TS3A5017 po_rgy_cds188.gif
If exposed center pad is used, it must be connected as a secondary ground or left electrically open.

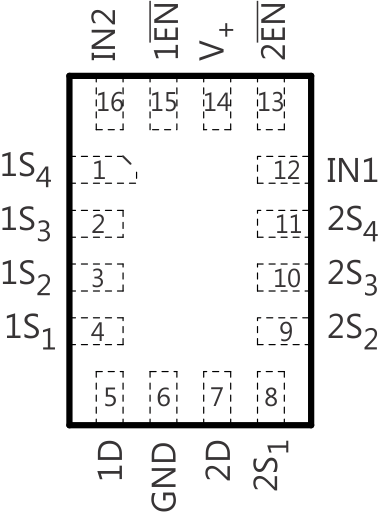

RSV Package
16-Pin UQFN
(Top View)
TS3A5017 po_rsv_cds188.gif

Pin Functions

PIN TYPE DESCRIPTION
NAME SOIC, SSOP, TVSOP, TSSOP, VQFN NO. UQFN NO.
1D 7 5 I/O Common path for switch 1
1EN 1 15 I Active-low enable for switch 1
1S1 6 4 I/O Switch 1 channel 1
1S2 5 3 I/O Switch 1 channel 2
1S3 4 2 I/O Switch 1 channel 3
1S4 3 1 I/O Switch 1 channel 4
2D 9 7 I/O Common path for switch 2
2EN 15 13 I Active-low enable for switch 2
2S1 10 8 I/O Switch 2 channel 1
2S2 11 9 I/O Switch 2 channel 2
2S3 12 10 I/O Switch 2 channel 3
2S4 13 11 I/O Switch 2 channel 4
GND 8 6 – Ground
IN1 14 12 I Switch 1 input select
IN2 2 16 I Switch 2 input select
V+ 16 14 – Supply voltage
