5 Pin Configuration and Functions

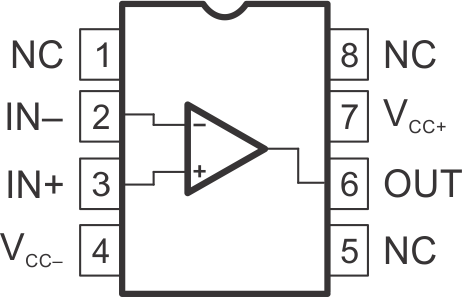

D Package
8-Pin SOIC
(Top View)
TS321 po_dpack_los489.gif
NC - no internal connection

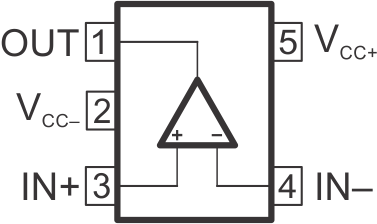

DBV Package
5-Pin SOT-23
(Top View)
TS321 po_dbvpack_los489.gif

Pin Functions

PIN I/O DESCRIPTION
NAME SOIC SOT-23
IN– 2 4 I Negative input
IN+ 3 3 I Positive input
NC 1 — — Do not connect
5
8
OUT 6 1 O Output
VCC– 4 2 — Negative supply
VCC+ 7 5 — Positive supply
