10.3.1 EMI Plots

EMI plots were measured using the standard TPSM84824EVM with no input filter.

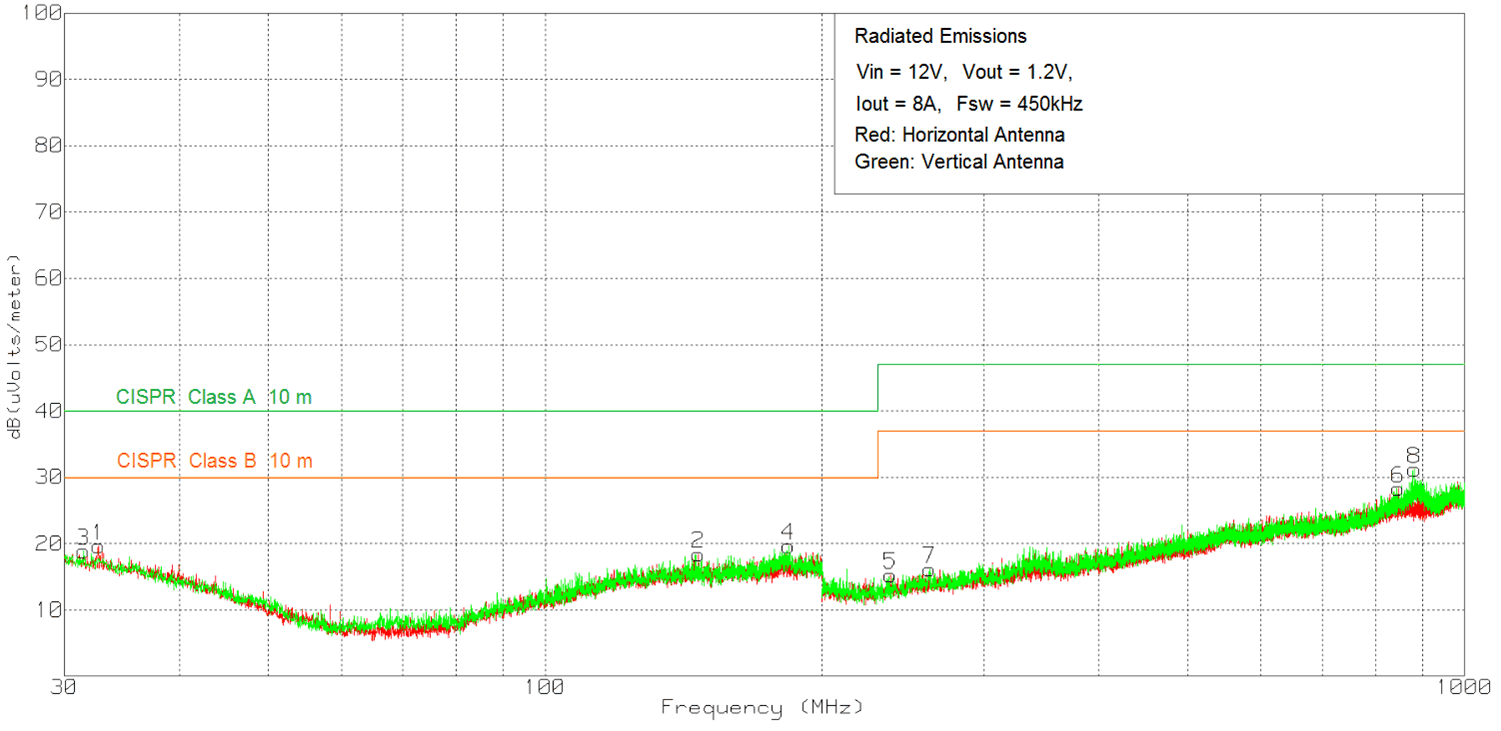

TPSM84824 EMI12_1p2.gif
Figure 31. Radiated Emissions 12-V Input, 1.2-V Output, 8-A Load (EN55011 Class B)

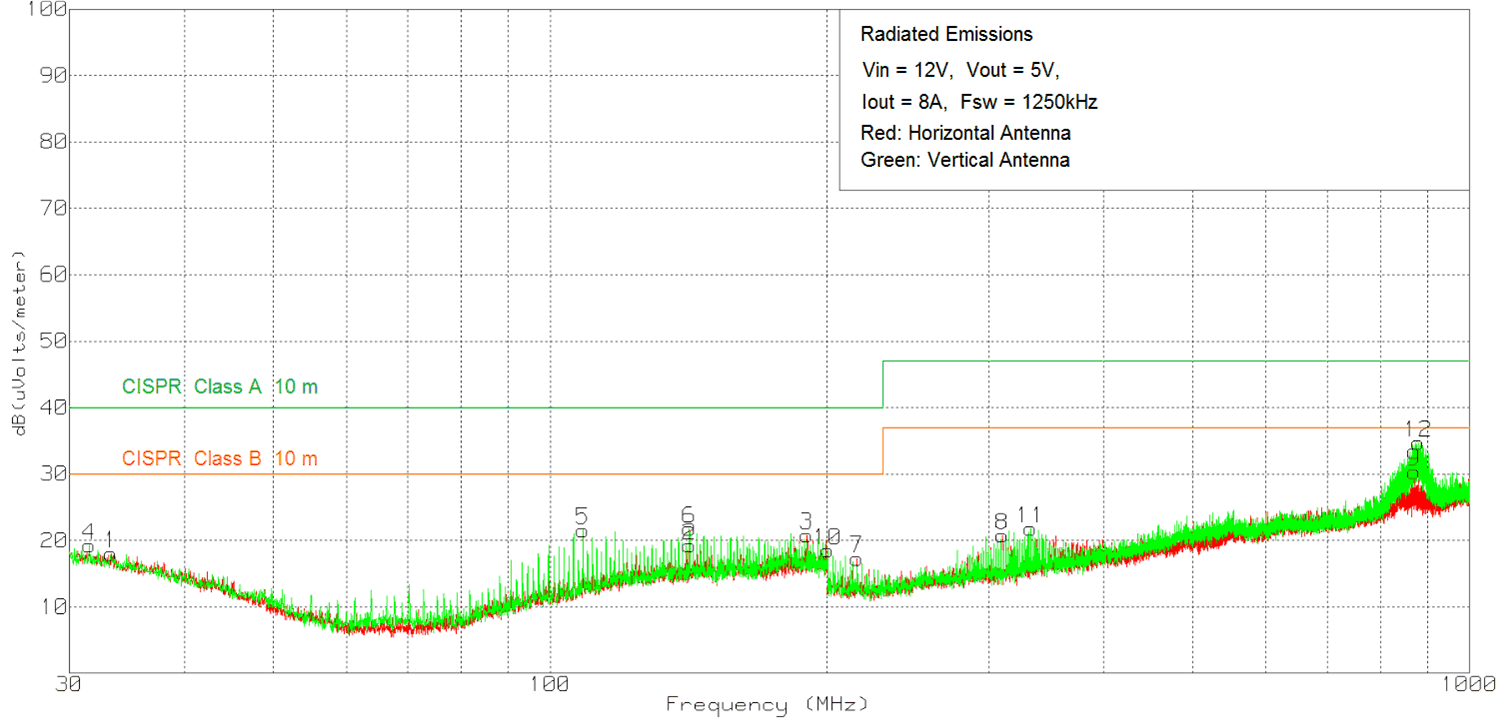

TPSM84824 EMI12_5.gifFigure 32. Radiated Emissions 12-V Input, 5-V Output, 8-A Load (EN55011 Class B)

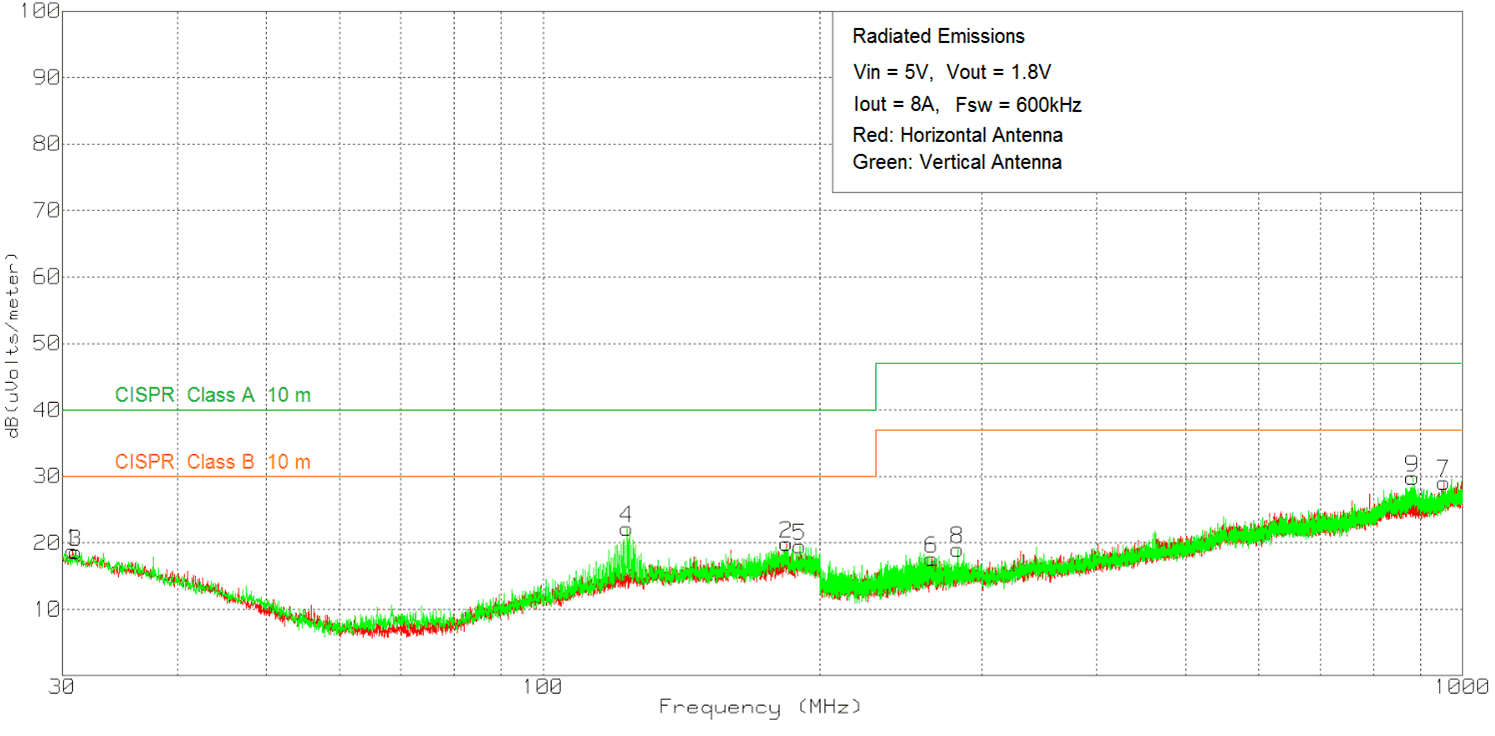

TPSM84824 EMI5_1p8.gif
Figure 33. Radiated Emissions 5-V Input, 1.8-V Output, 8-A Load (EN55011 Class B)
