EMI Plots

EMI plots were measured using the standard TPSM84624EVM with no input filter.

TPSM84624 624EMI12_1p2.gif
Figure 31. Radiated Emissions 12-V Input, 1.2-V Output, 6-A Load (EN55011 Class B)

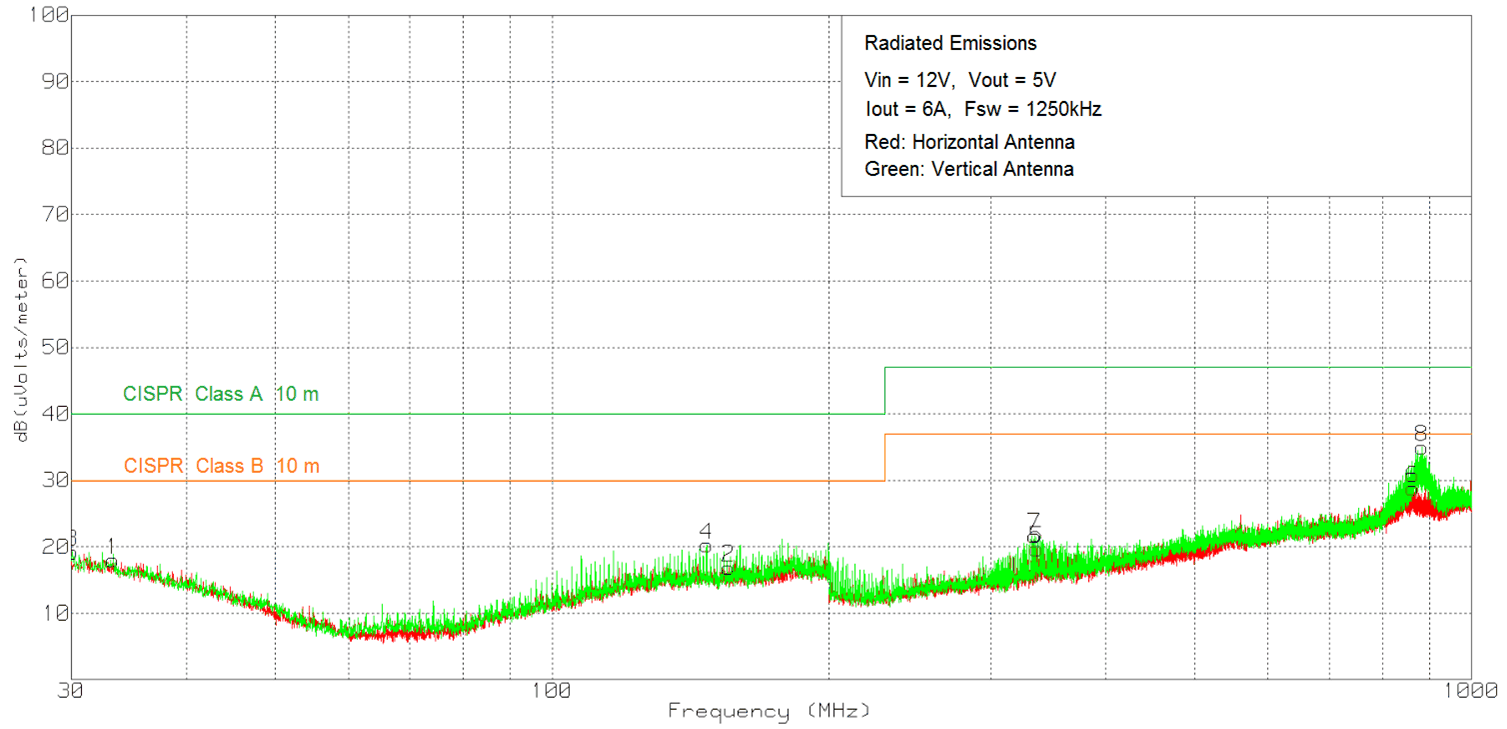

TPSM84624 624EMI12_5.gifFigure 32. Radiated Emissions 12-V Input, 5-V Output, 6-A Load (EN55011 Class B)
