Sequencing (SS/TR)

Many of the common power supply sequencing methods can be implemented using the SS/TR, EN, and PGOOD pins. The sequential method is illustrated in Figure 22 using two TPSM84624 devices. The PGOOD pin of the first device is coupled to the EN pin of the second device which enables the second power supply once the primary supply reaches regulation.

TPSM84624 SeqSequencing.gifFigure 22. Sequencing Schematic

Simultaneous power supply sequencing can be implemented by connecting the resistor network of R1 and R2 shown in Figure 23 to the output of the power supply that needs to be tracked or to another voltage reference source. Use Equation 5 and Equation 6 to calculate the values of R1 and R2.

Equation 5. TPSM84624 SeqR1equation2.gif
Equation 6. TPSM84624 SeqR2equation.gif

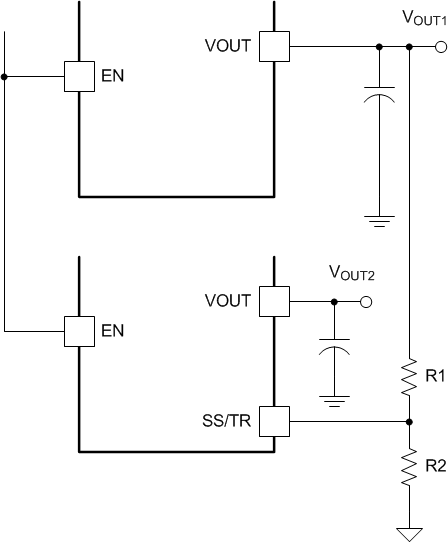

TPSM84624 SimSequencing.gifFigure 23. Simultaneous Tracking Schematic
