7.6 Typical Characteristics (VIN = 12 V)

TA = 25°C, unless otherwise noted.

Figure 7-1 Efficiency
COUT = 4 × 100 µF, 10-V, ceramic
Figure 7-3 Output Voltage Ripple
Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB

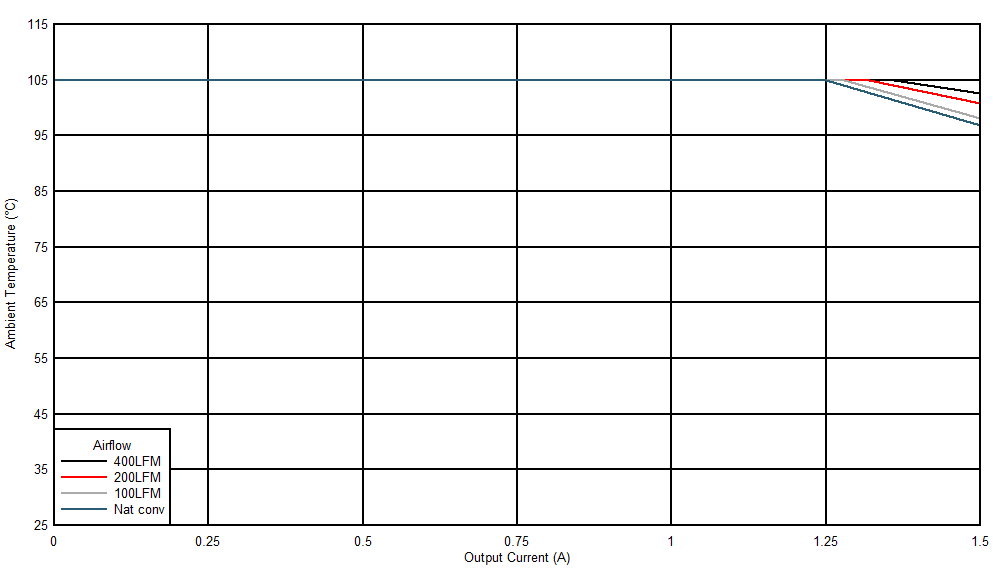

Figure 7-5 Safe Operating Area (VOUT = 3.3 V)
Figure 7-2 Power Dissipation
Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB

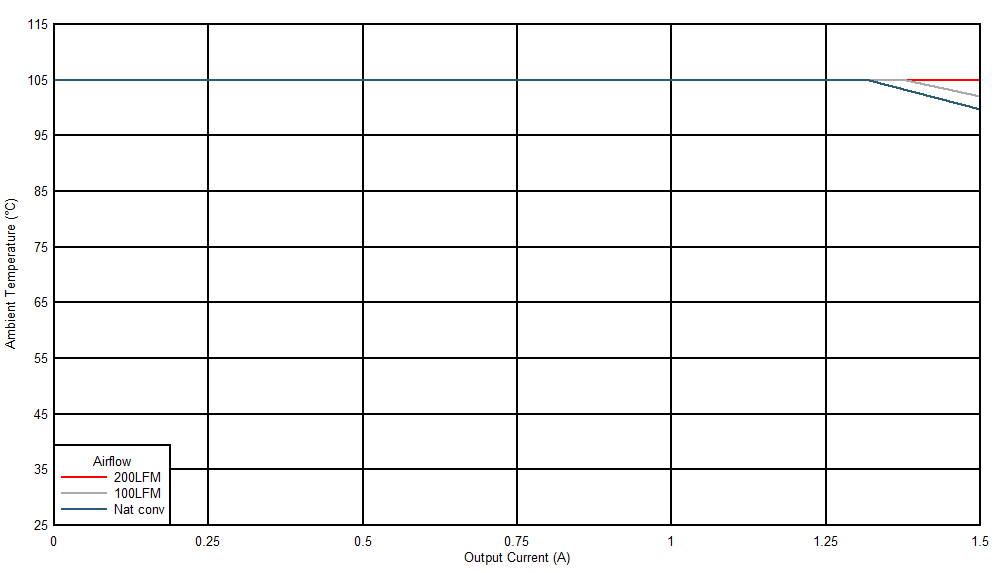

Figure 7-4 Safe Operating Area (VOUT = 1.2 V)
Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB
Figure 7-6 Safe Operating Area (VOUT = 5.0 V)
