Calculate UVLO Resistance Values

Consider the rising threshold of VIN to be 29 V and the hysteresis to be 4 V, calculate R2 and R3 to create the desired operation:

Equation 33. TPS92515AHV-Q1 R3_UVLO_numbers.gif
Equation 34. TPS92515AHV-Q1 R2_UVLO_numbers.gif

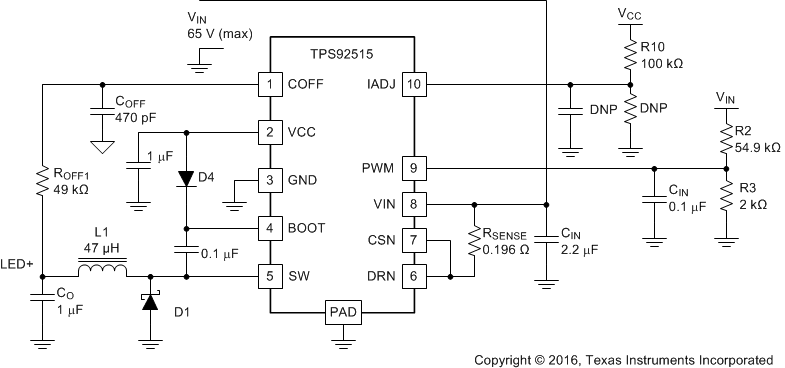

The final schematic is shown in Figure 33 and performance curves in the Application Curves section:

TPS92515AHV-Q1 TypAppSchematic_numbers.gifFigure 33. Application Schematic
