10.1.1 Power Dissipation and Thermal Considerations

Calculate the power dissipated in the device using Equation 1.

Equation 1. PD = IOUT × (VIN - VOUT)) + IQUIESCENT × VIN

where

  • PD = continuous power dissipation
  • IOUT = output current
  • VIN = input voltage
  • VOUT = output voltage
  • IQUIESCENT = quiescent current.

IQUIESCENT << IOUT; therefore, ignore the term IQUIESCENT × VIN in Equation 1.

For a device under operation at a given ambient air temperature (TA), calculate the junction temperature (TJ) using Equation 2.

Equation 2. TJ = TA + (θJA × PD)

where

  • θJA = junction-to-ambient air thermal impedance.

Calculate the rise in junction temperature due to power dissipation using Equation 3.

Equation 3. ΔT = TJ – TA = (θJA × PD)

For a given maximum junction temperature (TJ-Max), calculate the maximum ambient air temperature (TA-Max) at which the device can operate using Equation 4.

Equation 4. TA-Max = TJ-Max – (θJA × PD)

Example

If IOUT = 100 mA, VOUT = 5 V, VIN = 14 V, IQUIESCENT = 250 µA and θJA= 30˚C/W, the continuous power dissipated in the device is 0.9 W. The rise in junction temperature due to power dissipation is 27˚C. For a maximum junction temperature of 150˚C, maximum ambient air temperature at which the device can operate is 123˚C.

For adequate heat dissipation, TI recommends soldering the power pad (exposed heat sink) to the thermal land pad on the PCB. Doing this provides a heat conduction path from the die to the PCB and reduces overall package thermal resistance. Figure 22 shows power derating curves for the TPS7A65-Q1 family of devices in the KVU (DPAK) package.

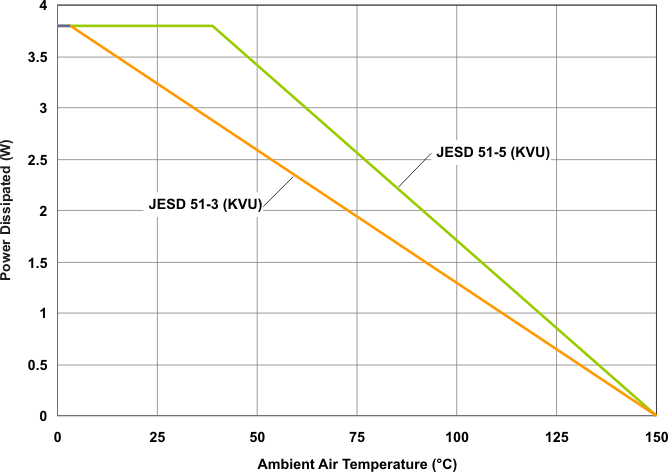

TPS7A65-Q1 power_derating_lvsa98.gifFigure 22. Power Derating Curves

For optimum thermal performance, TI recommends using a high-K PCB with thermal vias between the ground plane and solder pad or thermal land pad. Figure 23 (a) and (b) show this. Further, a design can improve the heat-spreading capabilities of a PCB considerably by using a thicker ground plane and a thermal land pad with a larger surface area.

TPS7A65-Q1 multilayer_pcb_thermal_vias_lvsa98.gifFigure 23. Using a Multilayer PCB and Thermal Vias for Adequate Heat Dissipation

Keeping other factors constant, the surface area of the thermal land pad contributes to heat dissipation only to a certain extent. Figure 24 shows the variation of θJA with surface area of the thermal land pad (soldered to the exposed pad) for the KVU package.

TPS7A65-Q1 thetaja_vs_thermal_pad_area_lvsa98.gifFigure 24. θJA vs Thermal Pad Area
