6.7 Typical Characteristics

at operating temperature TJ = 25°C, VIN = VOUT(NOM) + 0.5 V or 2.0 V (whichever is greater), IOUT = 1 mA, VEN = VIN, CIN = 1 µF, and COUT = 1 µF (unless otherwise noted)
TPS7A05 D001_SBVS254.gif
VOUT = 3.3 V, includes IQ in dropout
Figure 1. IQ vs VIN and Temperature
TPS7A05 D044_SBVS254.gif
VEN < 0.4 V
Figure 3. ISHDN vs VIN and Temperature
TPS7A05 D043_SBVS254.gif
Figure 5. IGND vs IOUT up to 200 mA
TPS7A05 D008_SBVS254.gif
Output current slew rate = 6.6 mA/µs
Figure 7. IOUT Transient 0 mA to 200 mA
TPS7A05 D046_SBVS254.gif
Output current slew rate = 100 mA/µs
Figure 9. IOUT Transient 0 mA to 100 mA
TPS7A05 D048_SBVS254.gif
Output current slew rate = 200 mA/µs
Figure 11. IOUT Transient 0 mA to 200 mA
TPS7A05 D050_SBVS254.gif
Output current slew rate = 100 mA/µs
Figure 13. IOUT Transient 1 mA to 100 mA
TPS7A05 D052_SBVS254.gif
Output current slew rate = 200 mA/µs
Figure 15. IOUT Transient 1 mA to 200 mA
TPS7A05 D012_SBVS254.gif

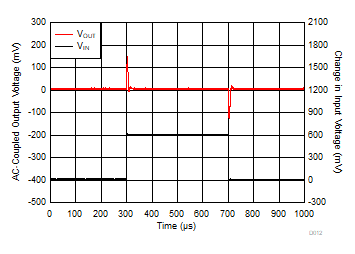

IOUT = 100 mA, input voltage slew rate = 0.6 V/µs
Figure 17. VIN Transient
TPS7A05 D054_SBVS254.gif
IOUT = 150 mA, input voltage slew rate = 0.1 V/µs
Figure 19. VIN Transient
TPS7A05 D013_SBVS254.gif
VOUT = 1.8 V
Figure 21. Dropout vs IOUT and Temperature
TPS7A05 D027_SBVS254.gif
Figure 23. Dropout vs VIN and Temperature
TPS7A05 D006_SBVS254.gif
VOUT = 0.8 V

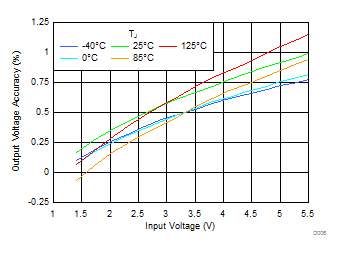

Figure 25. Output Accuracy VIN and Temperature
TPS7A05 D005_SBVS254.gif
VOUT = 1.8 V
Figure 27. Output Accuracy VIN and Temperature
TPS7A05 D003_SBVS254.gif
VOUT = 1.8 V

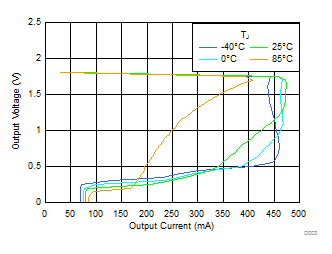

Figure 29. Foldback Current Limit vs IOUT and Temperature
TPS7A05 D030_SBVS254.gif
VOUT = 0.8 V, IOUT = 30 mA
Figure 31. Startup With VEN = VIN
TPS7A05 D032_SBVS254.gif
VOUT = 0.8 V, IOUT = 1 mA
Figure 33. Startup With Separate VIN and VEN
TPS7A05 D034_SBVS254.gif
VOUT = 1.8 V, IOUT = 30 mA

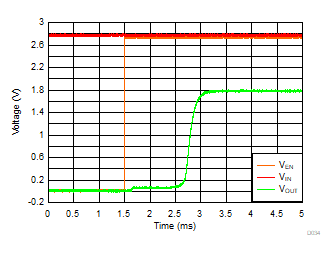

Figure 35. Startup With Separate VIN and VEN
TPS7A05 D016_SBVS254.gif

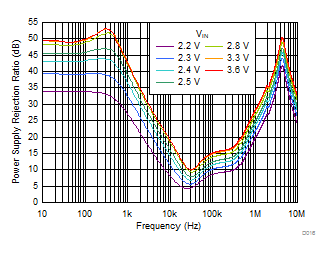

VOUT = 1.8 V, IOUT = 200 mA, COUT = 1 µF, CIN = 0 µF
Figure 37. PSRR vs Frequency and VIN
TPS7A05 D021_SBVS254.gif
VOUT = 0.8 V, VIN = 1.4 V, COUT = 1 µF, CIN = 0 µF
Figure 39. PSRR vs Frequency and IOUT
TPS7A05 D019_SBVS254.gif
VOUT = 3.3 V, VIN = 3.8 V, COUT = 1 µF, CIN = 0 µF
Figure 41. PSRR vs Frequency and IOUT
TPS7A05 D024_SBVS254.gif
VOUT = 1.8 V, VIN = 2.8 V, COUT = 1 µF
Figure 43. Output Noise vs Frequency and IOUT
TPS7A05 D028_SBVS254.gif

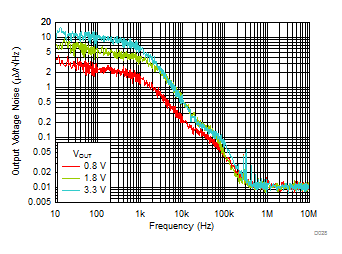

VIN = VOUT + 1 V, IOUT = 200 mA, COUT = 1 µF
Figure 45. Output Noise vs Frequency and VOUT
TPS7A05 D037_SBVS254.gif
Figure 47. Enable High and Low Thresholds vs
Temperature
TPS7A05 D002_SBVS254.gif
VEN < 0.4 V
Figure 2. ISHDN vs VIN and Temperature
TPS7A05 D042_SBVS254.gif

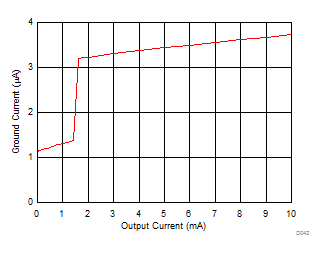

Figure 4. IGND vs IOUT up to 10 mA
TPS7A05 D036_SBVS254.gif
Output current slew rate = 3.3 mA/µs
Figure 6. IOUT Transient 0 mA to 100 mA
TPS7A05 D045_SBVS254.gif
Output current slew rate = 50 mA/µs
Figure 8. IOUT Transient 0 mA to 50 mA
TPS7A05 D047_SBVS254.gif
Output current slew rate = 150 mA/µs
Figure 10. IOUT Transient 0 mA to 150 mA
TPS7A05 D049_SBVS254.gif
Output current slew rate = 50 mA/µs
Figure 12. IOUT Transient 1 mA to 50 mA
TPS7A05 D051_SBVS254.gif
Output current slew rate = 150 mA/µs
Figure 14. IOUT Transient 1 mA to 150 mA
TPS7A05 D053_SBVS254.gif
CIN = COUT = 10 µF, output current slew rate = 3 mA/µs
Figure 16. IOUT Transient 3 µA to 3 mA
TPS7A05 D011_SBVS254.gif
IOUT = 200 mA, input voltage slew rate = 0.6 V/µs
Figure 18. VIN Transient
TPS7A05 D055_SBVS254.gif
IOUT = 20 mA, input voltage slew rate = 0.01 V/µs
Figure 20. VIN Transient
TPS7A05 D014_SBVS254.gif
VOUT = 3.3 V

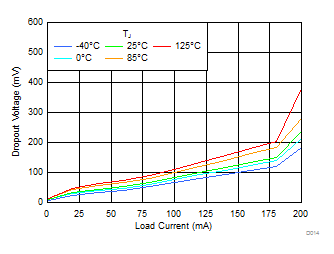

Figure 22. Dropout vs IOUT and Temperature
TPS7A05 D009_SBVS254.gif
VOUT = 0.8 V

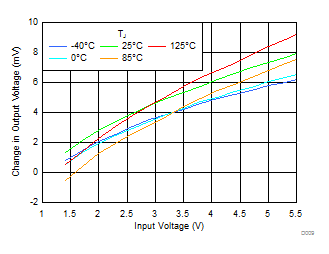

Figure 24. Line Regulation VIN and Temperature
TPS7A05 D004_SBVS254.gif
VOUT = 1.8 V

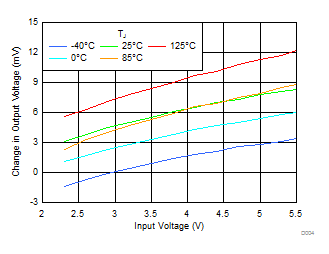

Figure 26. Line Regulation VIN and Temperature
TPS7A05 D010_SBVS254.gif

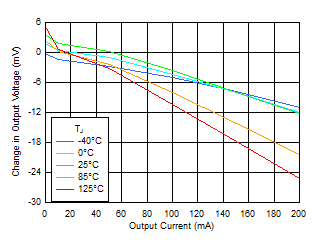

VOUT = 1.8 V
Figure 28. Load Regulation vs IOUT and Temperature
TPS7A05 D029_SBVS254.gif
VOUT = 0.8 V, IOUT = 1 mA
Figure 30. Startup With VEN = VIN
TPS7A05 D031_SBVS254.gif
VOUT = 1.8 V, IOUT = 30 mA
Figure 32. Startup With VEN = VIN
TPS7A05 D033_SBVS254.gif
VOUT = 0.8 V, IOUT = 30 mA
Figure 34. Startup With Separate VIN and VEN
TPS7A05 D022_SBVS254.gif

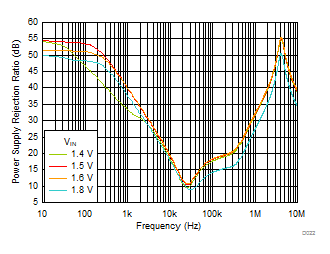

VOUT = 0.8 V, IOUT = 200 mA, COUT = 1 µF, CIN = 0 µF
Figure 36. PSRR vs Frequency and VIN
TPS7A05 D020_SBVS254.gif
VOUT = 3.3 V, IOUT = 200 mA, COUT = 1 µF, CIN = 0 µF
Figure 38. PSRR vs Frequency and VIN
TPS7A05 D015_SBVS254.gif
VOUT = 1.8 V, VIN = 2.8 V, COUT = 1 µF, CIN = 0 µF
Figure 40. PSRR vs Frequency and IOUT
TPS7A05 D025_SBVS254.gif

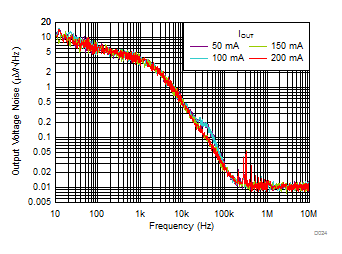

VOUT = 1.8 V, IOUT = 200 mA, COUT = 1 µF
Figure 42. Output Noise vs Frequency and VIN
TPS7A05 D026_SBVS254.gif

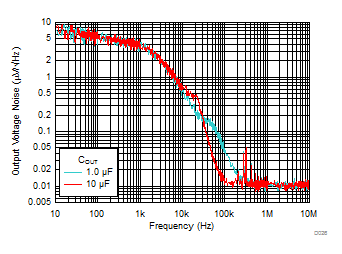

VOUT = 1.8 V, VIN = 2.8 V, IOUT = 200 mA
Figure 44. Output Noise vs Frequency and COUT
TPS7A05 D035_SBVS254.gif

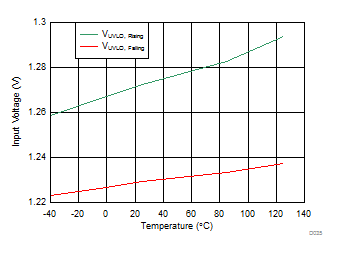

Figure 46. UVLO VIN Rising and Falling Thresholds vs Temperature
