8.2.2.2 Output Voltage Programming

The output voltage of the TPS76301 adjustable regulator is programmed using an external resistor divider as shown in Figure 21. The output voltage is calculated using Equation 1.

Equation 1. TPS763 equation_03_slvs181.gif

where

  • Vref = 1.192 V typical (the internal reference voltage)
  • 0.995 is a constant used to center the load regulator (1%)

Resistors R1 and R2 must be chosen for approximately 7-µA divider current. Lower value resistors can be used but offer no inherent advantage and waste more power. Higher values must be avoided as leakage currents at FB increase the output voltage error. TI recommends choosing a design procedure of R2 = 169 kΩ to set the divider current at 7 µA and then calculate R1 using Equation 2.

Equation 2. TPS763 equation_04_slvs181.gif

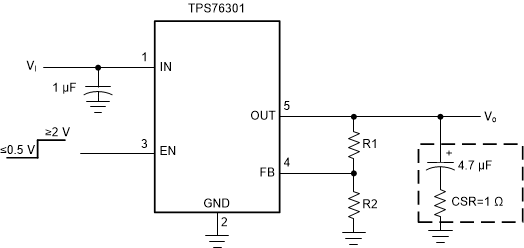

TPS763 TPS76301_adjustable_LDO_regulator_programming_slgs247.gifFigure 21. TPS76301 Adjustable LDO Regulator Programming
