5.6 Typical Characteristics: IOUT = 50 mA

at TJ = 25°C, VIN = VOUT(TYP) + 0.3 V, VBIAS = 5 V, IOUT = 50 mA, VEN = VIN, CIN = 1 μF, CBIAS = 4.7 μF, and COUT = 10 μF (unless otherwise noted)

Legacy chip

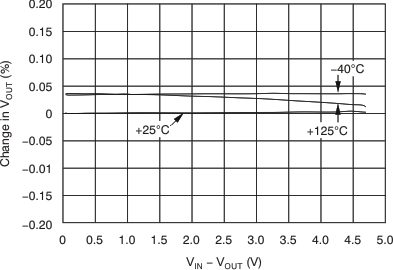

Figure 5-1 VIN Line Regulation
Legacy chip
Figure 5-3 VBIAS Line Regulation
Legacy chip

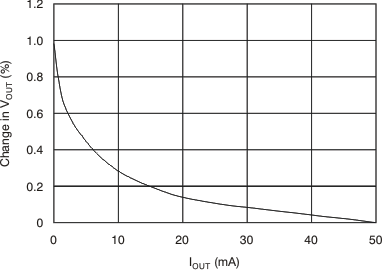

Figure 5-5 Load Regulation at Light Load
Legacy chip
Figure 5-7 Load Regulation
Legacy chip
Figure 5-9 Dropout Voltage vs IOUT and Temperature (TJ)
Legacy chip
Figure 5-11 VBIAS Dropout Voltage vs IOUT and Temperature (TJ)
Legacy chip
Figure 5-13 VBIAS PSRR vs Frequency
Legacy chip

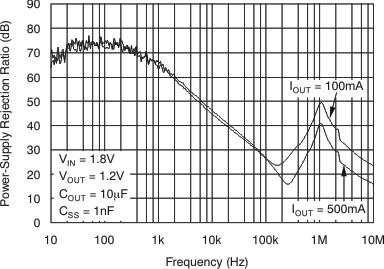

Figure 5-15 VIN PSRR vs Frequency
Legacy chip
Figure 5-17 Noise Spectral Density
Legacy chip
Figure 5-19 BIAS Pin Current vs IOUT and Temperature (TJ)
Legacy chip

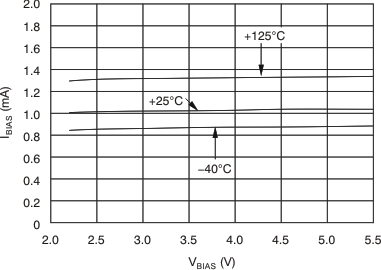

Figure 5-21 BIAS Pin Current vs VBIAS and Temperature (TJ)
Legacy chip
Figure 5-23 Soft-Start Charging Current (ISS) vs Temperature (TJ)
Legacy chip

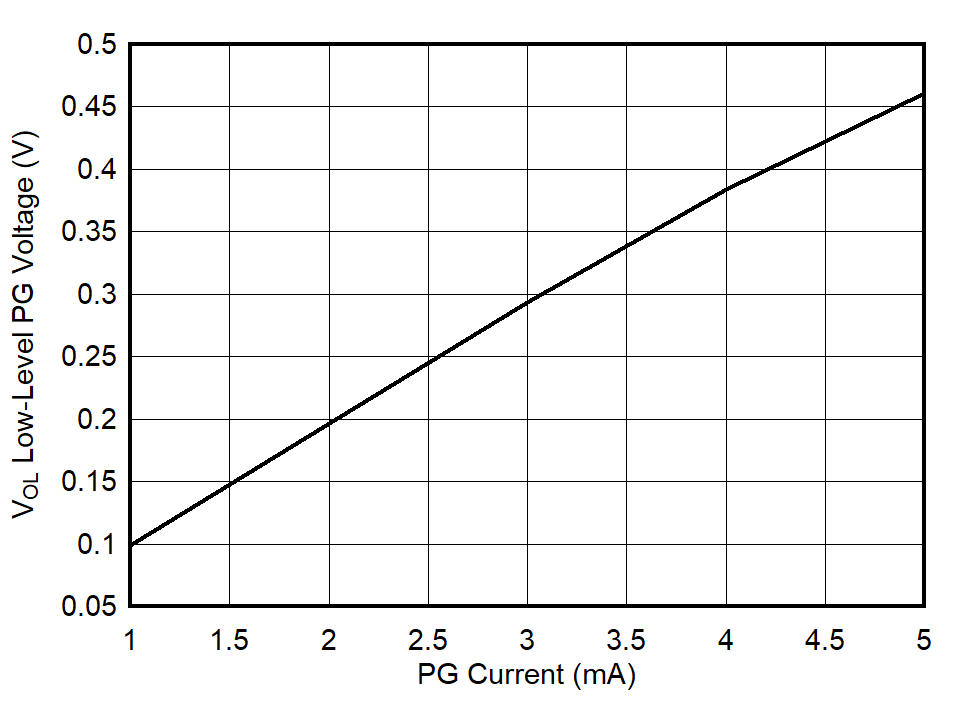

Figure 5-25 Low-Level PG Voltage vs Current
Legacy chip
Figure 5-27 Current Limit vs (VBIAS – VOUT)

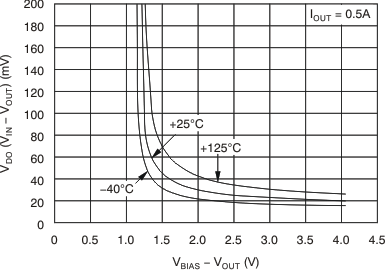

Figure 5-29 Dropout Voltage vs (VBIAS – VOUT) and Temperature (TJ)
New chip
Figure 5-2 VIN Line Regulation
New chip
Figure 5-4 VBIAS Line Regulation
New chip
Figure 5-6 Load Regulation at Light Load
GUID-20230802-SS0I-QV6T-FDX6-X2CZGHQBTT6N-low.svg
New chip
Figure 5-8 Load Regulation
GUID-20230802-SS0I-JBPP-FTNV-MRXWCMP2LKTQ-low.svg
New chip
Figure 5-10 VIN Dropout Voltage vs IOUT and Temperature (TJ)
GUID-20230802-SS0I-4FVL-KJ52-DTWDHLFHDVZW-low.svg
New chip
Figure 5-12 VBIAS Dropout Voltage vs IOUT and Temperature (TJ)
GUID-20230802-SS0I-LW1G-S9JT-DRXMWFLTMSZL-low.svg
New chip
Figure 5-14 VBIAS PSRR vs Frequency
GUID-20230802-SS0I-F1MV-18CL-C8PGVB3GT3WL-low.svg
New chip
Figure 5-16 VIN PSRR vs Frequency
New chip
Figure 5-18 Noise Spectral Density
GUID-20230802-SS0I-FN42-PK27-TDPTQHB13BPX-low.svg
New chip
Figure 5-20 BIAS Pin Current vs Output Current and Temperature (TJ)
New chip
Figure 5-22 BIAS Pin Current vs VBIAS and Temperature (TJ)
New chip
Figure 5-24 Soft-Start Charging Current (ISS) vs Temperature (TJ)
New chip
Figure 5-26 Low-Level PG Voltage vs Current
New chip
Figure 5-28 Current Limit vs (VBIAS – VOUT)
