10.3.2 Synchronizing to an External Clock

The TPS62851x can be externally synchronized by applying an external clock on the MODE/SYNC pin. There is no need for any additional circuitry as long as the input signal meets the requirements given in the electrical specifications. The clock can be applied / removed during operation, allowing you to switch from an externally defined fixed frequency to power-save mode or to internal fixed frequency operation.

GUID-B3DFCF6D-B29D-4D89-9840-C65A80769246-low.gifFigure 10-59 Schematic using External Synchronization
VIN = 5 VRCF = 8.06 kΩIOUT = 0.1 A
VOUT = 1.8 VfEXT = 2.5 MHz

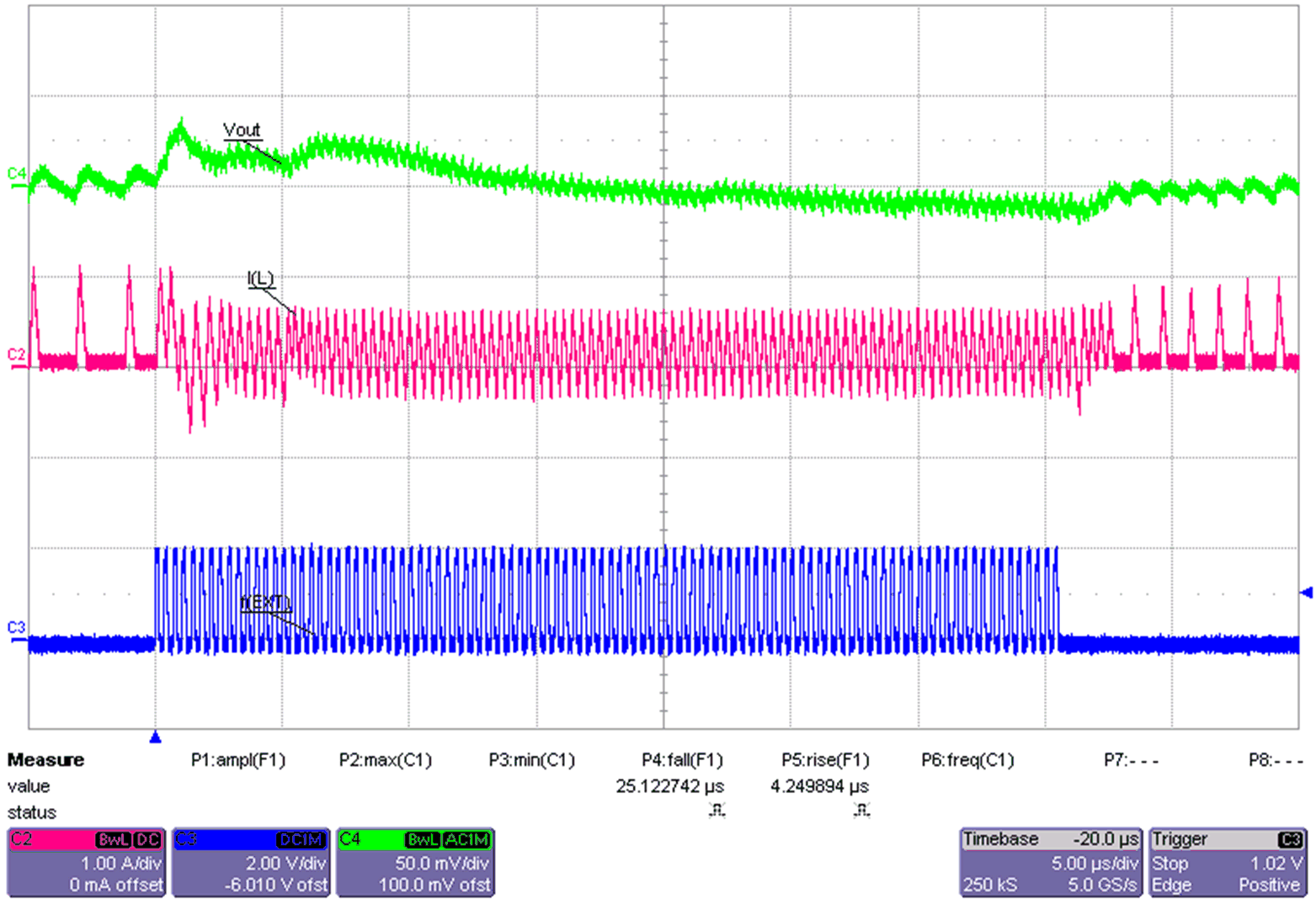

Figure 10-60 Switching from External Syncronization to Power-Save Mode (PFM)
VIN = 5 VRCF = 8.06 kΩIOUT = 0.1 A
VOUT = 1.8 VfEXT = 2.5 MHz
Figure 10-61 Switching from External Synchronizaion to Internal Fixed Frequency
