8.2.1.2.3 Without Isolation FET

The efficiency of the TPS61093 can be improved by connecting the load to the VO pin instead of the OUT pin. The power loss in the isolation FET is then negligible, as shown in Figure 8. The tradeoffs when bypassing the isolation FET are:

  • Leakage path between input and output causes the output to be a diode drop below the input voltage when the IC is in shutdown
  • No overload circuit protection

When the load is connected to the VO pin, the output capacitor on the VO pin must be above 1 μF.

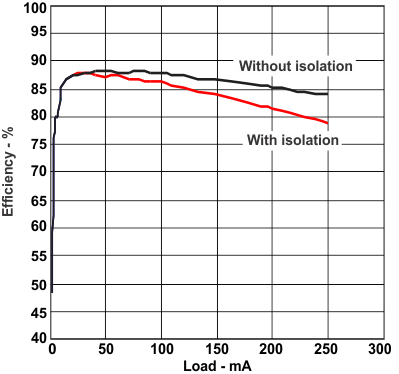

TPS61093 eff_ld_lvs992.gifFigure 8. Efficiency vs Load
