Switching Frequency

The converter supports analog frequency selections from 300 kHz to 2 MHz, for stand alone device and sync frequency from 300 kHz to 1 MHz for stackable configuration. The RT pin also sets clock sync point (SP) for the slave device.

Switching Frequency Configuration for Stand-alone and Master Device in Stackable Configuration

TPS543B20 stand_alone_RT_pin_sluscr1.gifFigure 14. Stand-alone: RT Pin Sets the Switching Frequency

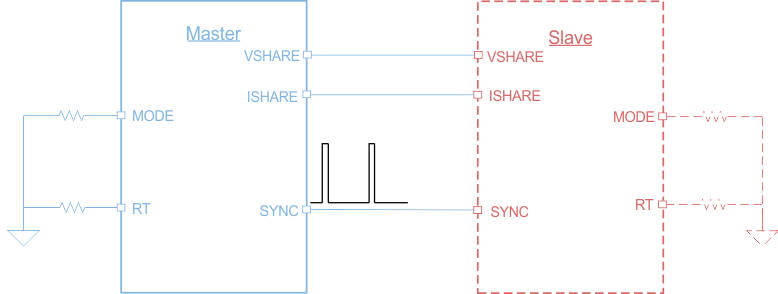

TPS543B20 stackable_master_as_clock_sluscd4.gifFigure 15. Stackable: Master (as Clock Master) RT Pin Sets Switching Frequency, and passes it to Slave

Resistor RRT sets the continuous switching frequence selection by

Equation 1. TPS543B20 Eq_Rrt_SLUSCD4.gif

where

  • R is the resistor from RT pin to GND, in Ω
  • ƒSW is the desired switching frequency, in Hz
