7.7 Typical Characteristics

At TJ = 25°C, VDD = 3.3 V, and RPU = 10 kΩ, unless otherwise noted.

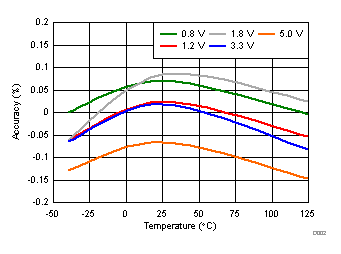

TPS3870-Q1 D002_SBVS344_VITp_ACC_VDD_3V3.gif
Tested across multiple voltage options
Figure 3. Overvoltage Accuracy vs Temperature

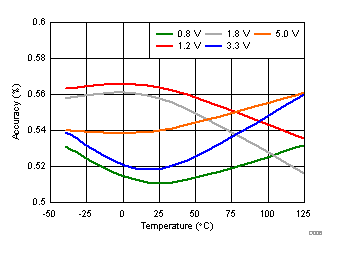

TPS3870-Q1 D006_SBVS344_VHYSp_ACC_VDD_3V3.gif
Tested across multiple voltage options
Figure 5. Overvoltage Hysteresis Voltage Accuracy vs Temperature
TPS3870-Q1 D008_SBVS344_Iq_RST_Low.gif
Output (RESET Pin) = Low
Figure 7. Supply Current vs Temperature

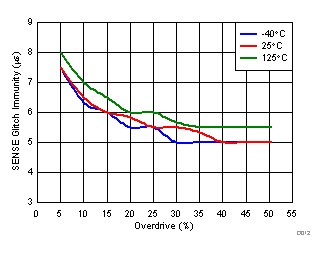

TPS3870-Q1 D012_SBVS344_TGI_VITp_VDD_5V5.gif
VDD = 5.5 V
Figure 9. SENSE Glitch Immunity (VIT+) vs Overdrive

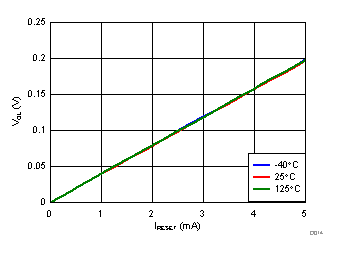

TPS3870-Q1 D014_SBVS344_VOL_IRST_5V5.gif
VDD = 5.5 V
Figure 11. Low-Level Output Voltage vs RESET current

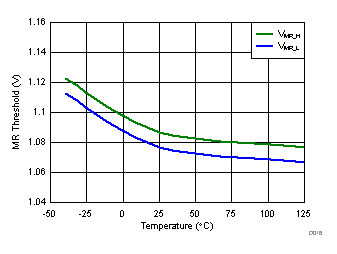

TPS3870-Q1 D016_SBVS344_MR_VDD_5V5.gif
VDD = 5.5 V
Figure 13. SET Threshold vs Temperature
TPS3870-Q1 D018_SBVS344_CT_RESET_Delay.gif
Figure 15. RESET Timeout vs CT Capacitor

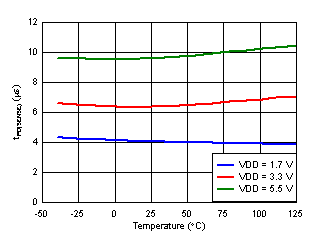

TPS3870-Q1 D020_SBVS344_tPD_Sense.gif
Figure 17. Detect Propagation Delay vs Temperature
TPS3870-Q1 D004_SBVS344_Histo_VITp_ACC_VDD_3V3.gif
Figure 4. Overvoltage Accuracy Distribution
TPS3870-Q1 D007_SBVS344_Iq_RST_High.gif
Output (RESET Pin) = High
Figure 6. Supply Current vs Temperature

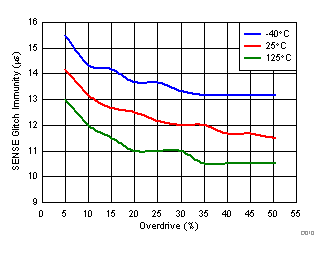

TPS3870-Q1 D010_SBVS344_TGI_VITp_VDD_1V7.gif
VDD = 1.7 V
Figure 8. SENSE Glitch Immunity (VIT+) vs Overdrive

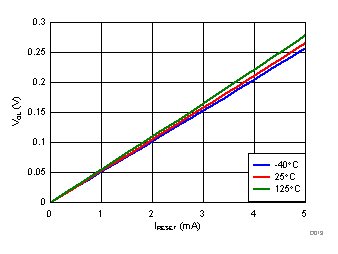

TPS3870-Q1 D013_SBVS344_VOL_IRST_1V7.gif
VDD = 1.7 V
Figure 10. Low-Level Output Voltage vs RESET current
TPS3870-Q1 D015_SBVS344_MR_VDD_1V7.gif
VDD = 1.7 V
Figure 12. SET Threshold vs Temperature

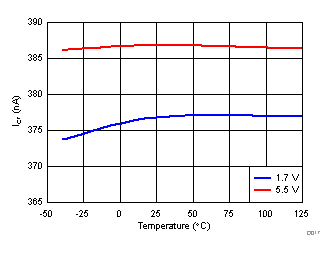

TPS3870-Q1 D017_SBVS344_ICTvsTemp.gif
Figure 14. CT Current vs CT value
TPS3870-Q1 D019_CT_Reset_Zoom.gif
Figure 16. Timeout vs CT Capacitor (0.1 to 10 nF)
