10 Layout

10.1 Layout Guidelines

  • Make sure that the connection to the VDD pin is low impedance. Good analog design practice is to place a 0.1-µF ceramic capacitor as near as possible to the VDD pin.
  • If a CCWD capacitor or pull-up resistor is used place them as close as possible to the CWD pin. If the CWD pin is left unconnected make sure to minimize the amount of parasitic capacitance on the pin.
  • The pull-up resistors on RESET and WDO should be placed as close to the pin as possible.

10.2 Layout Example

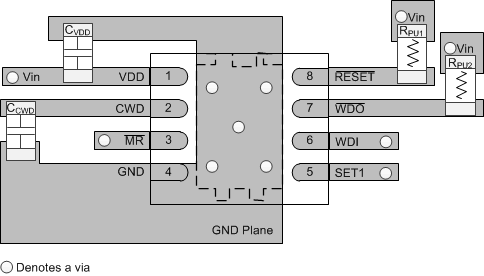

TPS3852 TPS3851_layout.gif Figure 26. Typical Layout For TPS3852
