Layout

Layout Guidelines

TI recommends placing the 0.1-µF decoupling capacitor close to the VDD pin. The VDD trace should be able to carry 6 µA without a significant drop in voltage.

Layout Example

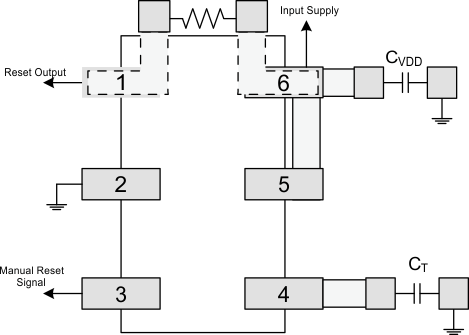

TPS3808G01-Q1 TPS3808G12-Q1 TPS3808G125-Q1 TPS3808G15-Q1 TPS3808G18-Q1 TPS3808G30-Q1 TPS3808G33-Q1 TPS3808G50-Q1 Layout_Example_sbvs085.gif Figure 18. Recommended Layout
