10 Layout

10.1 Layout Guidelines

Make sure the connection to the VDD pin is low impedance. Place a 0.1-µF ceramic capacitor near the VDD pin.

10.2 Layout Example

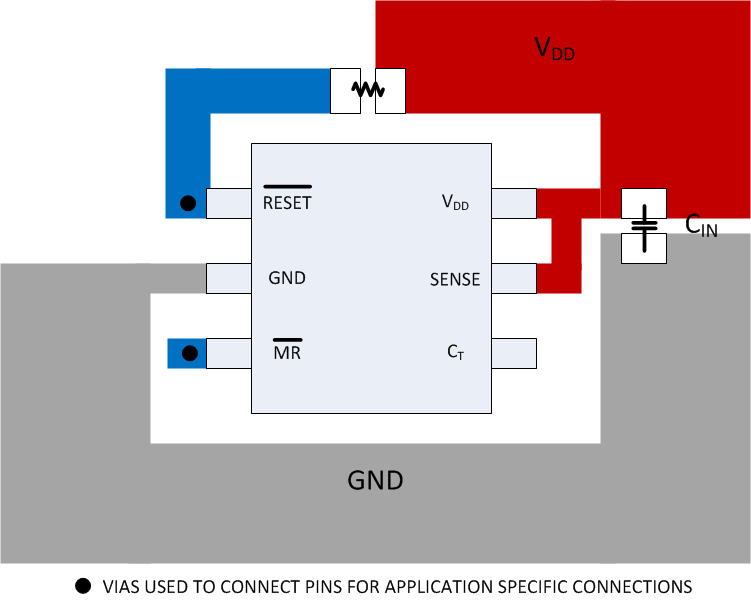

The layout example in Figure 15 shows how the TPS3808 is laid out on a PCB for a 20 ms delay.

Layout_example.gifFigure 15. Layout Example for a 20 ms Delay
