7.8 Typical Characteristics

at TJ = 25°C, VDD = 3.3 V, and RPU = 10 kΩ (unless otherwise noted)

Tested across multiple voltage options
Figure 7-3 Undervoltage Accuracy vs Temperature
Sample Size of 100 TPS3703A7125 units
Figure 7-5 Undervoltage Accuracy Distribution
Tested across multiple voltage options
Figure 7-7 Undervoltage Hysteresis Voltage Accuracy vs Temperature
Output ( RESET Pin) = High

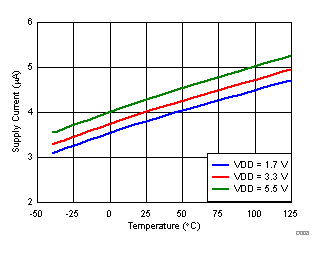

Figure 7-9 Supply Current vs Temperature
VDD = 1.7 V

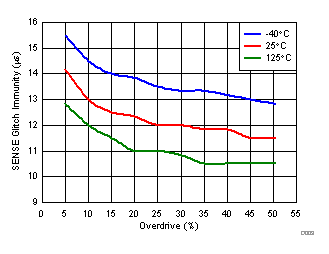

Figure 7-11 SENSE Glitch Immunity (VIT-) vs Overdrive
VDD = 5.5 V

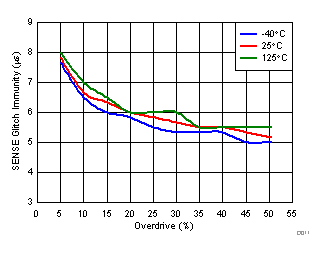

Figure 7-13 SENSE Glitch Immunity (VIT-) vs Overdrive
VDD = 1.7 V

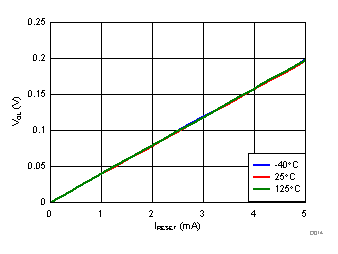

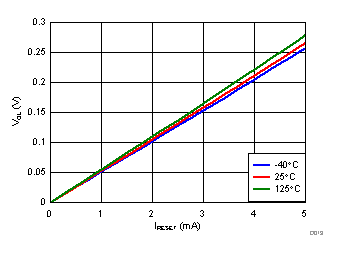

Figure 7-15 Low-Level Output Voltage vs RESET current
VDD = 1.7 V
Figure 7-17 SET Threshold vs Temperature
Figure 7-19 CT Current vs CT value
Figure 7-21 Timeout vs CT Capacitor (0.1 to 10 nF)
Tested across multiple voltage options
Figure 7-4 Overvoltage Accuracy vs Temperature
Sample Size of 100 TPS3703A7125 units
Figure 7-6 Overvoltage Accuracy Distribution
Tested across multiple voltage options

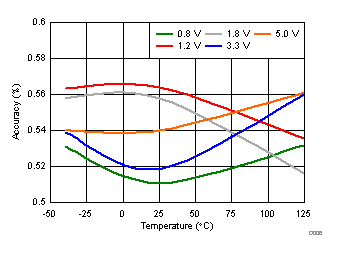

Figure 7-8 Overvoltage Hysteresis Voltage Accuracy vs Temperature
Output ( RESET Pin) = Low

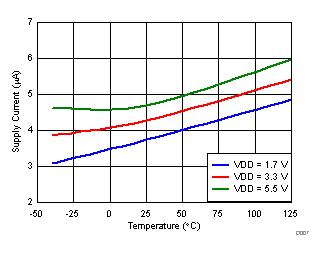

Figure 7-10 Supply Current vs Temperature
VDD = 1.7 V

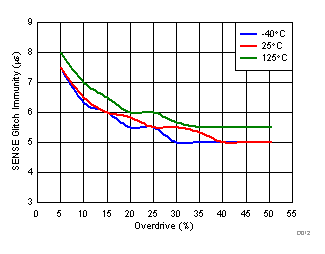

Figure 7-12 SENSE Glitch Immunity (VIT+) vs Overdrive
VDD = 5.5 V
Figure 7-14 SENSE Glitch Immunity (VIT+) vs Overdrive
VDD = 5.5 V
Figure 7-16 Low-Level Output Voltage vs RESET current
VDD = 5.5 V
Figure 7-18 SET Threshold vs Temperature

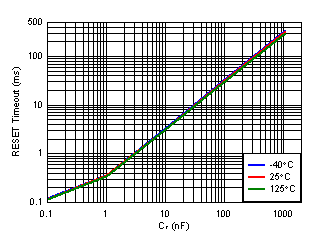

Figure 7-20 RESET Timeout vs CT Capacitor

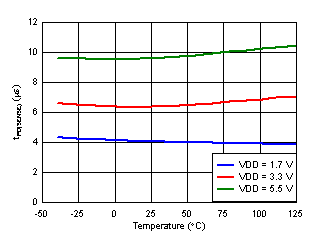

Figure 7-22 Detect Propagation Delay vs Temperature
