Typical Characteristics

At TJ = 25°C, VDD = 3V, and RPU = 10kΩ, unless otherwise noted.

Performance is across VDD with SET high or low

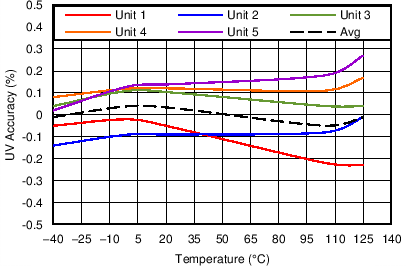

Figure 5-2 Undervoltage Accuracy vs Temperature
Performance is across VDD with SET high or low

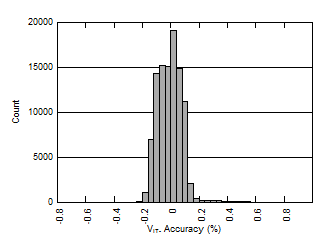

Figure 5-4 Undervoltage Accuracy Distribution

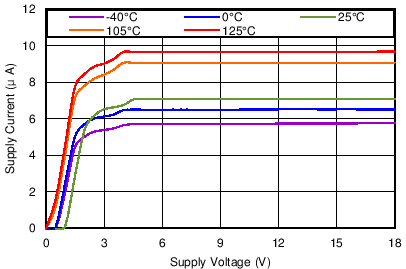

Figure 5-6 Supply Current vs Supply Voltage

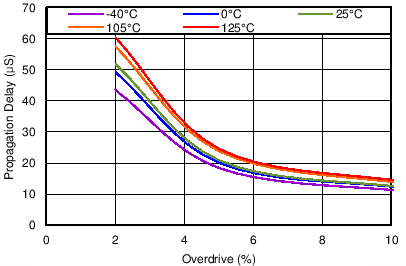

SENSE transitions from high to low
Figure 5-8 Undervoltage Propagation Delay vs Overdrive
SENSE transitions from low to high
Figure 5-10 Undervoltage Propagation Delay vs Overdrive
VDD = 1.8V
Figure 5-12 Low-Level Output Voltage vs Output Current

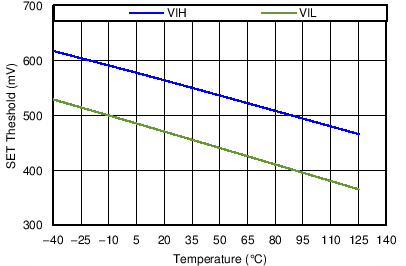

Figure 5-14 SET Threshold vs Temperature
Performance is across VDD with SET high or low

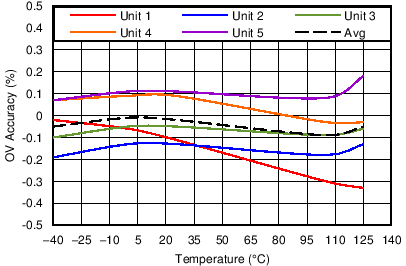

Figure 5-3 Overvoltage Accuracy vs Temperature
Performance is across VDD with SET high or low

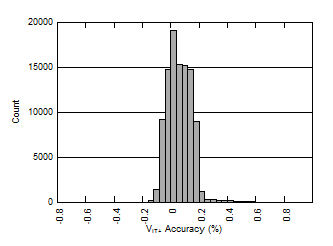

Figure 5-5 Overvoltage Accuracy Distribution

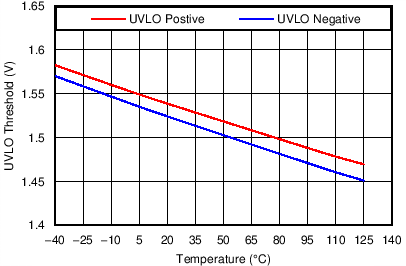

Figure 5-7 Undervoltage Lockout Threshold vs Temperature

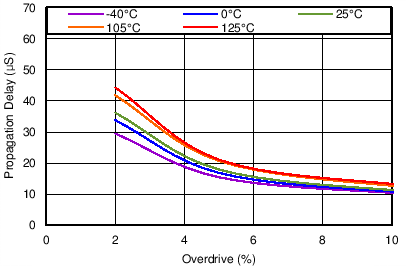

SENSE transitions from low to high
Figure 5-9 Overvoltage Propagation Delay vs Overdrive

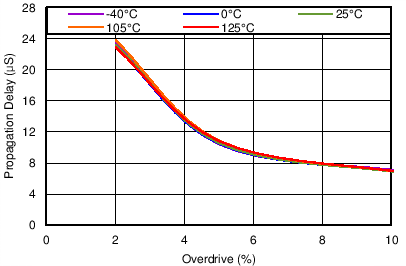

SENSE transitions from high to low
Figure 5-11 Overvoltage Propagation Delay vs Overdrive
VDD = 18V
Figure 5-13 Low-Level Output Voltage vs Output Current
