6.8 Typical Characteristics

TPS2597 ON-Resistance vs Supply VoltageFigure 6-1 ON-Resistance vs Supply Voltage
TPS2597 IN Quiescent Current vs Temperature (TPS25972x Variant)Figure 6-3 IN Quiescent Current vs Temperature (TPS25972x Variant)
TPS2597 IN Shutdown Current vs TemperatureFigure 6-5 IN Shutdown Current vs Temperature
TPS2597 EN/UVLO Rising Threshold vs TemperatureFigure 6-7 EN/UVLO Rising Threshold vs Temperature
TPS2597 EN/UVLO Shutdown Falling Threshold vs TemperatureFigure 6-9 EN/UVLO Shutdown Falling Threshold vs Temperature
TPS2597 OVLO Falling Threshold vs Temperature (TPS25970x, TPS25974x Variants)Figure 6-11 OVLO Falling Threshold vs Temperature (TPS25970x, TPS25974x Variants)
TPS2597 Overcurrent Threshold Accuracy (Across Process, Voltage and Temperature)Figure 6-13 Overcurrent Threshold Accuracy (Across Process, Voltage and Temperature)
TPS2597 Scalable Fast-Trip Threshold: Current Limit Threshold (ILIM) Ratio vs TemperatureFigure 6-15 Scalable Fast-Trip Threshold: Current Limit Threshold (ILIM) Ratio vs Temperature
TPS2597 OVC Clamping Voltage (OVCSEL = 390 kΩ to GND) vs Load Current (TPS25972x Variant)Figure 6-17 OVC Clamping Voltage (OVCSEL = 390 kΩ to GND) vs Load Current (TPS25972x Variant)
TPS2597 OVC Clamping Voltage (OVCSEL = GND) vs Load Current (TPS25972x Variant)Figure 6-19 OVC Clamping Voltage (OVCSEL = GND) vs Load Current (TPS25972x Variant)
TPS2597 ITIMER Discharge Current vs TemperatureFigure 6-21 ITIMER Discharge Current vs Temperature
TPS2597 ITIMER internal Pullup Voltage vs TemperatureFigure 6-23 ITIMER internal Pullup Voltage vs Temperature
TPS2597 PGTH Threshold (Rising) vs Temperature (TPS25972x, TPS25974x Variants)Figure 6-25 PGTH Threshold (Rising) vs Temperature (TPS25972x, TPS25974x Variants)
TPS2597 FLT Pin Pulldown Resistance vs TemperatureFigure 6-27 FLT Pin Pulldown Resistance vs Temperature
TPS2597 Time to Thermal Shut-Down During Steady StateFigure 6-29 Time to Thermal Shut-Down During Steady State
TPS2597 Power Up and Down With Input Supply
VEN/UVLO = 2 V, COUT = 22 μF, CdVdt = Open, VIN ramped from 0 V → 12 V → 0 V
Figure 6-31 Power Up and Down With Input Supply
TPS2597 Inrush Current Without Slew Rate Control – Capacitive Load
VIN = 12 V, COUT = 470 μF, CdVdt = Open, VEN/UVLO stepped up to 3.3 V
Figure 6-33 Inrush Current Without Slew Rate Control – Capacitive Load
TPS2597 Inrush Current With Slew Rate Control – Resistive and Capacitive Load
VIN = 12 V, COUT = 470 μF, ROUT = 10 Ω, CdVdt = 5100 pF, VEN/UVLO stepped up to 3.3 V
Figure 6-35 Inrush Current With Slew Rate Control – Resistive and Capacitive Load
TPS2597 Overvoltage Clamp Response – TPS25972x
ROVCSEL = GND, COUT = 220 μF, IOUT = 200 mA, VIN ramped up from 3.3 V to 5.8 V
Figure 6-37 Overvoltage Clamp Response – TPS25972x
TPS2597 Overvoltage Clamp Response – TPS25972x
ROVCSEL = 390 kΩ, COUT = 220 μF, IOUT = 200 mA, VIN ramped up from 12 V to 16.5 V
Figure 6-39 Overvoltage Clamp Response – TPS25972x
TPS2597 Active Current Limit Response Followed by TSD – TPS25970x
VIN = 12 V, CITIMER = 1.3 nF, COUT = 220 μF, RILM = 715 Ω, IOUT stepped from 0 A → 11 A
Figure 6-41 Active Current Limit Response Followed by TSD – TPS25970x
TPS2597 Circuit-Breaker Response TPS25974x
VIN = 12 V, CITIMER = 1.3 nF, COUT = 470 μF, RILM = 715 Ω, IOUT stepped from 0 A → 11 A
Figure 6-43 Circuit-Breaker Response TPS25974x
TPS2597 Output Short-Circuit During Steady State (Zoomed In)
VIN = 12 V, RILM = 715 Ω, OUT stepped from Open → Short-circuit to GND
Figure 6-45 Output Short-Circuit During Steady State (Zoomed In)
TPS2597 IN Quiescent Current vs Temperature (TPS25970x, TPS25974x Variants)Figure 6-2 IN Quiescent Current vs Temperature (TPS25970x, TPS25974x Variants)
TPS2597 IN OFF State (UVLO) Current vs TemperatureFigure 6-4 IN OFF State (UVLO) Current vs Temperature
TPS2597 IN Undervoltage Threshold vs TemperatureFigure 6-6 IN Undervoltage Threshold vs Temperature
TPS2597 EN/UVLO Falling Threshold vs TemperatureFigure 6-8 EN/UVLO Falling Threshold vs Temperature
TPS2597 OVLO Rising Threshold vs Temperature (TPS25970x, TPS25974x Variants)Figure 6-10 OVLO Rising Threshold vs Temperature (TPS25970x, TPS25974x Variants)
TPS2597 Overcurrent Threshold vs ILM ResistorFigure 6-12 Overcurrent Threshold vs ILM Resistor
TPS2597 Analog Current Monitor Gain AccuracyFigure 6-14 Analog Current Monitor Gain Accuracy
TPS2597 OVC Threshold vs Temperature (TPS25972x Variant)Figure 6-16 OVC Threshold vs Temperature (TPS25972x Variant)
TPS2597 OVC Clamping Voltage (OVCSEL = OPEN) vs Load Current (TPS25972x Variant)Figure 6-18 OVC Clamping Voltage (OVCSEL = OPEN) vs Load Current (TPS25972x Variant)
TPS2597 ITIMER Discharge Differential Voltage Threshold vs TemperatureFigure 6-20 ITIMER Discharge Differential Voltage Threshold vs Temperature
TPS2597 ITIMER Internal Pullup Resistance vs TemperatureFigure 6-22 ITIMER Internal Pullup Resistance vs Temperature
TPS2597 DVDT Charging Current vs TemperatureFigure 6-24 DVDT Charging Current vs Temperature
TPS2597 PGTH Threshold (Falling) vs Temperature (TPS25972x, TPS25974x Variants)Figure 6-26 PGTH Threshold (Falling) vs Temperature (TPS25972x, TPS25974x Variants)
TPS2597 Time to Thermal Shut-Down During Inrush StateFigure 6-28 Time to Thermal Shut-Down During Inrush State
TPS2597 Power Up and Down With EN/UVLO Control
VIN = 12 V, COUT = 22 μF, CdVdt = Open, VEN/UVLO ramped from 0 V → 1.4 V → 0 V
Figure 6-30 Power Up and Down With EN/UVLO Control
TPS2597 Input Hot-Plug
COUT = 22 μF, CdVdt = Open, EN/UVLO connected to IN through resistor ladder, 12 V hot-plugged to IN
Figure 6-32 Input Hot-Plug
TPS2597 Inrush Current With Slew Rate Control – Capacitive Load
VIN = 12 V, COUT = 470 μF, CdVdt = 5100 pF, VEN/UVLO stepped up to 3.3 V
Figure 6-34 Inrush Current With Slew Rate Control – Capacitive Load
TPS2597 Overvoltage Lockout Response – TPS25970x and TPS25974x
OV threshold set to 16.7 V, VIN ramped up from 12 V to 17 V
Figure 6-36 Overvoltage Lockout Response – TPS25970x and TPS25974x

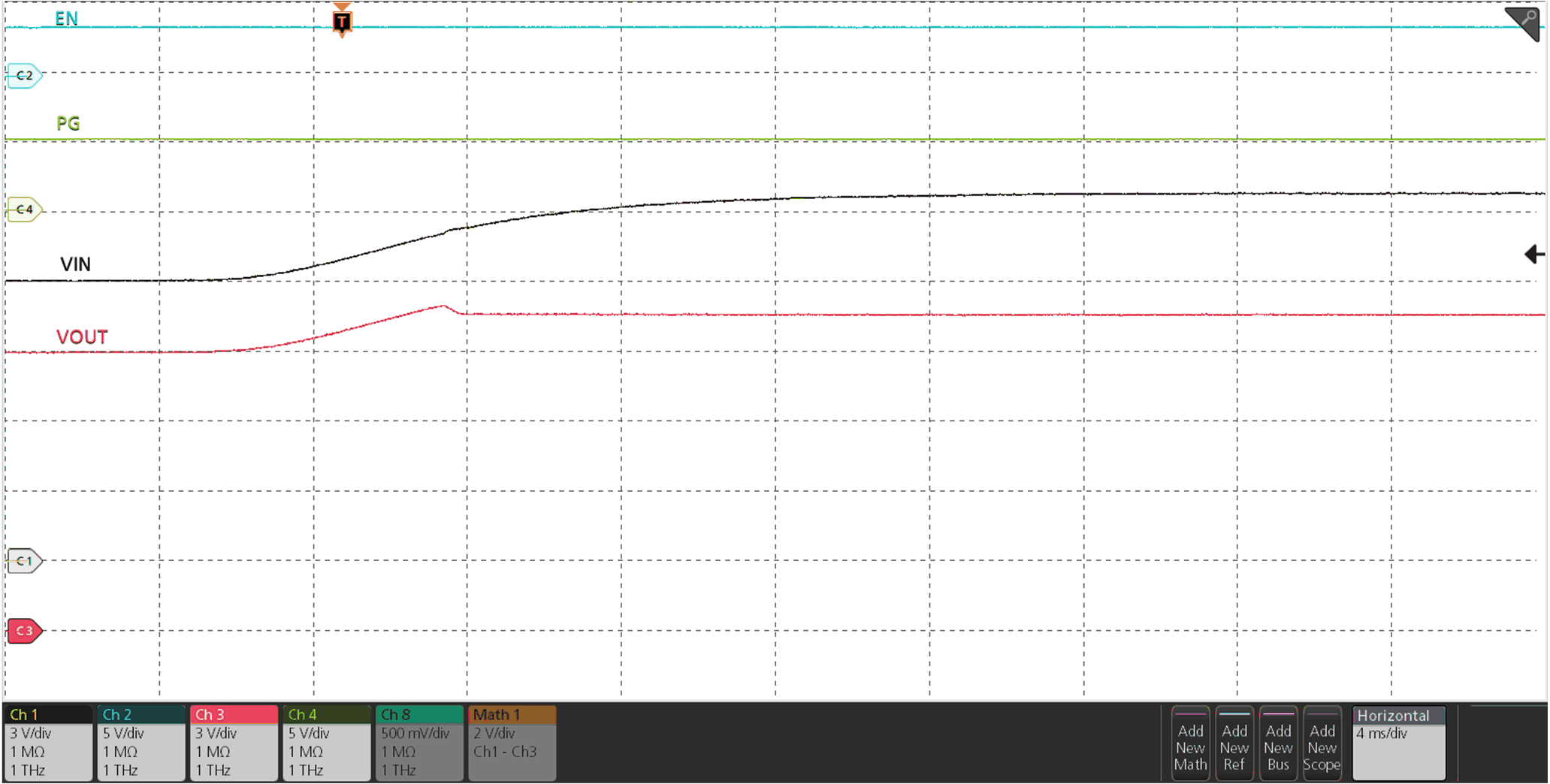

TPS2597 Overvoltage Clamp Response – TPS25972x
ROVCSEL = Open, COUT = 220 μF, IOUT = 200 mA, VIN ramped up from 5 V to 7.5 V
Figure 6-38 Overvoltage Clamp Response – TPS25972x
TPS2597 Active Current Limit Response – TPS25970x
VIN = 12 V, CITIMER = 1.3 nF, COUT = 220 μF, RILM = 715 Ω, IOUT stepped from 0 A → 11 A
Figure 6-40 Active Current Limit Response – TPS25970x

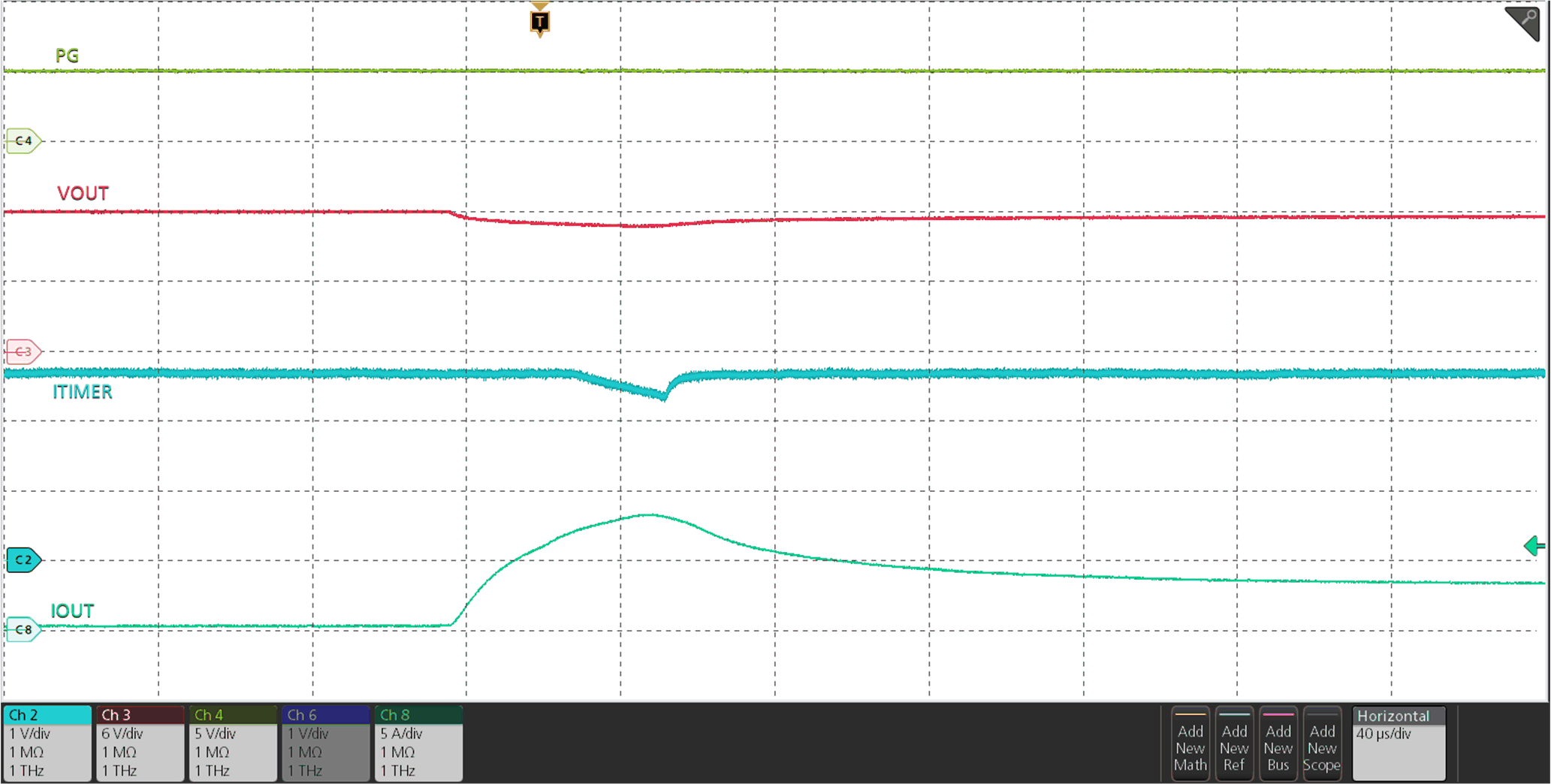

TPS2597 Transient Overcurrent Blanking Timer Response
VIN = 12 V, CITIMER = 120 pF, COUT = 470 μF, RILM = 715 Ω, IOUT ramped from 0 A → 8 A→ 4 A within 100 μs
Figure 6-42 Transient Overcurrent Blanking Timer Response
TPS2597 Output Short-Circuit During Steady State
VIN = 12 V, RILM = 715 Ω, OUT stepped from Open → Short-circuit to GND
Figure 6-44 Output Short-Circuit During Steady State
TPS2597 Power Up into Short-Circuit
VIN = 12 V, COUT = Open, OUT short-circuit to GND, RILM = 715 Ω, VEN/UVLO stepped from 0 V to 3.3 V
Figure 6-46 Power Up into Short-Circuit
