7.6 Switching Characteristics

Typical Values are taken at TJ = 25°C unless specifically noted otherwise. ROUT = 100 Ω, COUT = 1 µF
PARAMETER VIN
CdVdt = Open CdVdt = 3300pF UNIT
SRON Output Rising slew rate 3.3 V 16.3 10.0 V/ms
5 V 21.9 11.6
12 V 38.2 12.4
tD,ON Turn on delay 3.3 V 147 254 µs
5 V 149 289
12 V 153 335
tR Rise time 3.3 V 157 259 µs
5 V 179 349
12 V 248 763
tD,OFF Turn off delay 3.3 V 11.6 11.6 µs
5 V 11.3 11.5
12 V 11.0 11.4

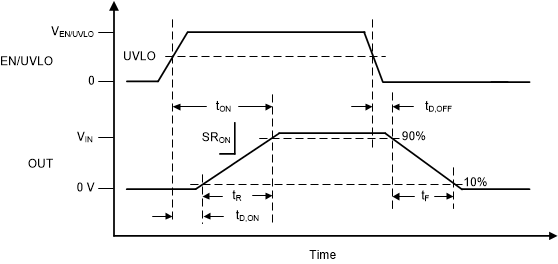

TPS2595 tON-Timing.gifFigure 1. TPS2595x0, TPS2595x1, TPS2595x5 Switching Times

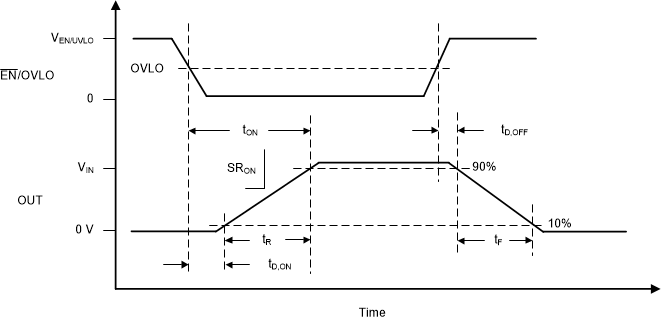

TPS2595 tON-Timing-Active-Low-Enable.gifFigure 2. TPS2595x3 Switching Times
