6.11 Typical AC Characteristics

AC Characteristics (TPS22976, TPS22976N)

TA = 25°C, CT = 1000 pF, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω, VON = 5 V

VBIAS = 2.5 V

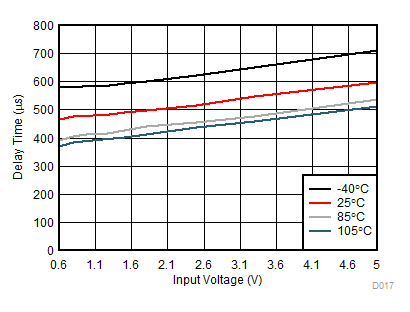

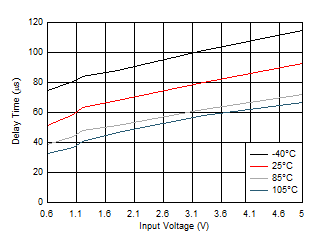

Figure 6-19 Delay Time vs Input Voltage
VBIAS = 2.5 V

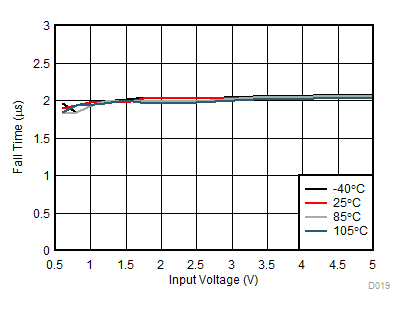

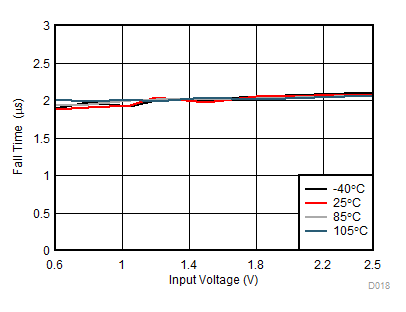

Figure 6-21 Fall Time vs Input Voltage
GUID-20231117-SS0I-VQ4P-FGBG-WKW1PQ9KN7BP-low.svg
VBIAS = 2.5 V
Figure 6-23 Turnoff Time vs Input Voltage (TPS22976)
VBIAS = 2.5 V

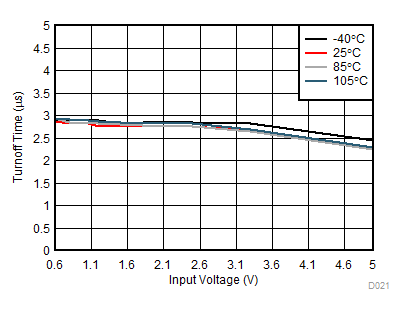

Figure 6-25 Turnoff Time vs Input Voltage (TPS22976N)
VBIAS = 2.5 V

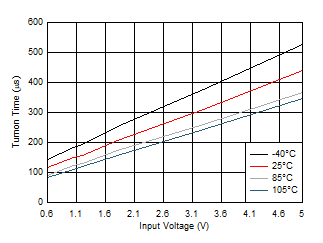

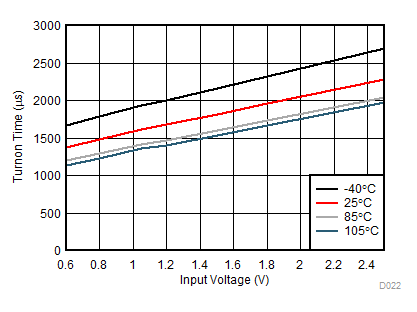

Figure 6-27 Turnon Time vs Input Voltage
VBIAS = 2.5 V

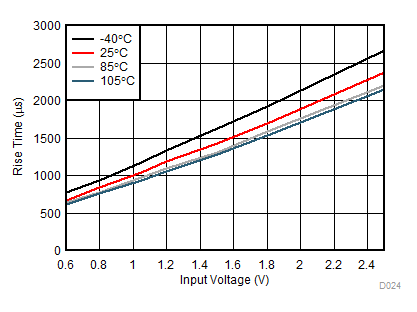

Figure 6-29 Rise Time vs Input Voltage
VIN = 0.6 VVBIAS = 2.5 V

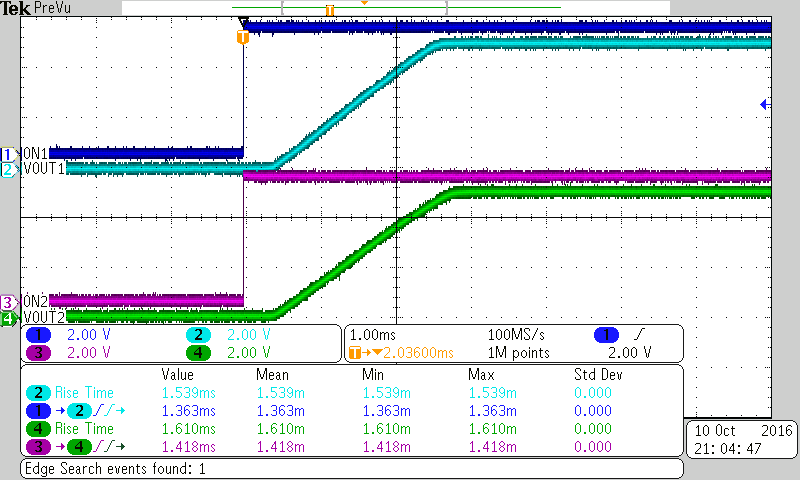

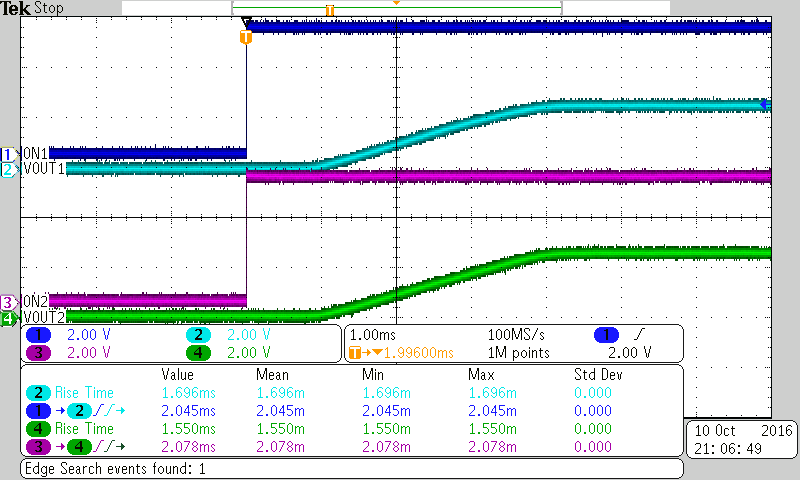

Figure 6-31 Turnon Response Time
VIN = 2.5 VVBIAS = 2.5 V
Figure 6-33 Turnon Response Time
VIN = 0.6 VVBIAS = 2.5 V

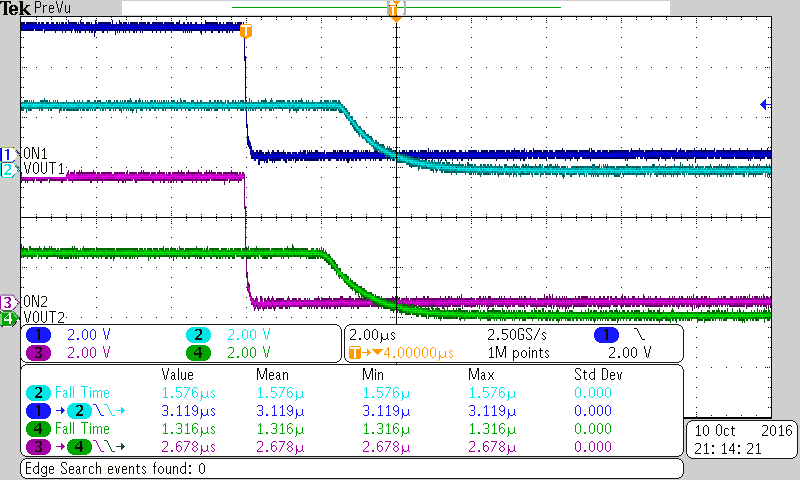

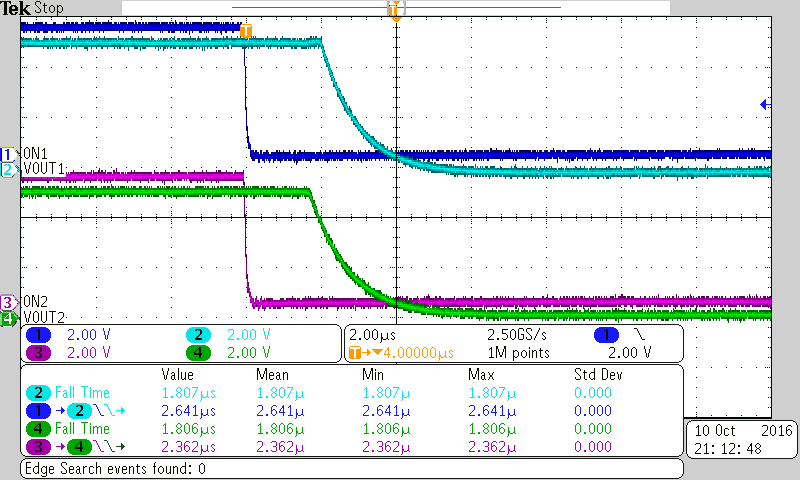

Figure 6-35 Turnoff Response Time
VIN = 2.5 VVBIAS = 2.5 V

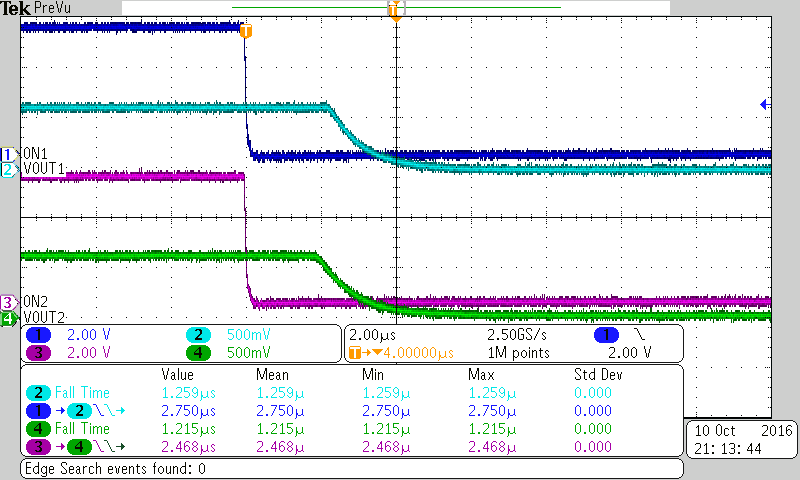

Figure 6-37 Turnoff Response Time
VBIAS = 5 V
Figure 6-20 Delay Time vs Input Voltage
VBIAS = 5 V
Figure 6-22 Fall Time vs Input Voltage
GUID-20231117-SS0I-JLFQ-9HNH-M1TPNMP8SRTC-low.svg
VBIAS = 5 V
Figure 6-24 Turnoff Time vs Input Voltage (TPS22976)
VBIAS = 5 V
Figure 6-26 Turnoff Time vs Input Voltage (TPS22976N)
VBIAS = 5 V
Figure 6-28 Turnon Time vs Input Voltage
VBIAS = 5 V

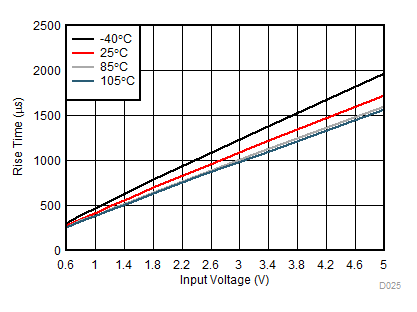

Figure 6-30 Rise Time vs Input Voltage
VIN = 0.6 VVBIAS = 5 V
Figure 6-32 Turnon Response Time
VIN = 5 VVBIAS = 5 V

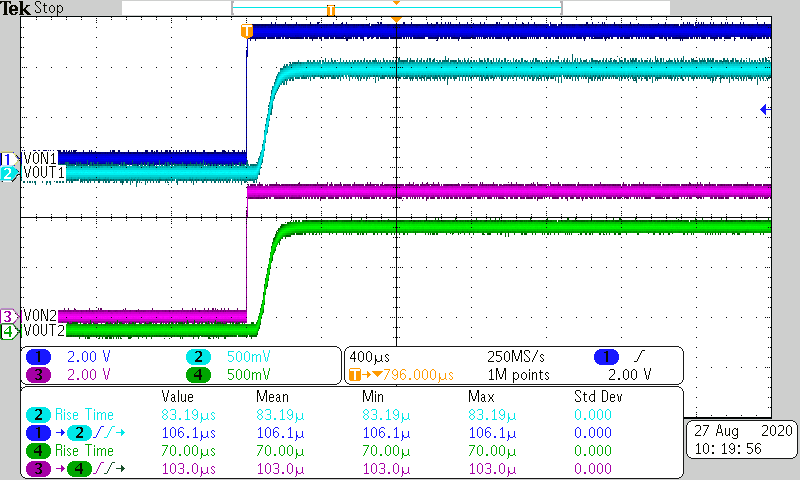

Figure 6-34 Turnon Response Time
VIN = 0.6 VVBIAS = 5 V
Figure 6-36 Turnoff Response Time
VIN = 5 VVBIAS = 5 V
Figure 6-38 Turnoff Response Time

AC Characteristics (TPS22976A)

TA = 25°C, CT = 1000 pF, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω, VON = 5 V

VBIAS = 2.5 V
Figure 6-39 Delay Time vs Input Voltage
VBIAS = 2.5 V

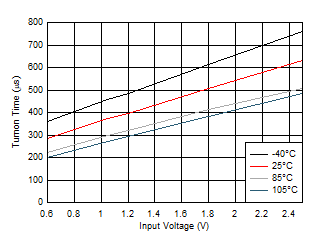

Figure 6-41 Turnon Time vs Input Voltage
VBIAS = 2.5 V
Figure 6-43 Rise Time vs Input Voltage
VIN = 1.05 VVBIAS = 5 V

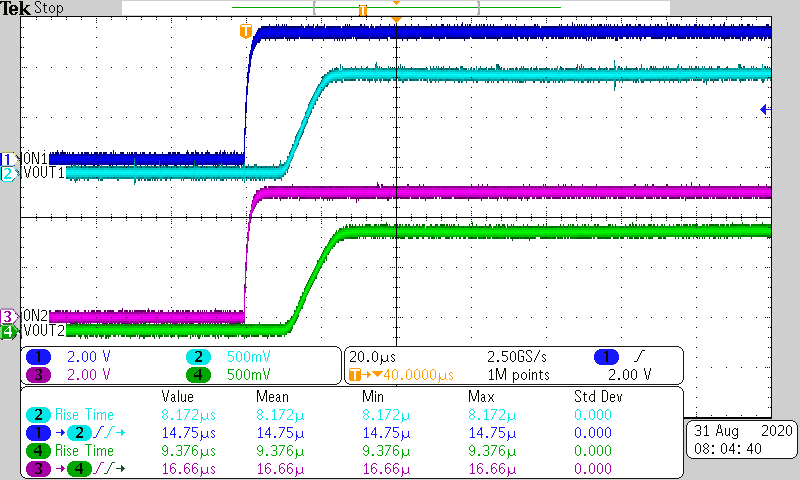

Figure 6-45 Turnon Response Time
VIN = 1.05 VVBIAS = 5 VCT = 0pF
Figure 6-47 Turnon Response Time
VBIAS = 5 V
Figure 6-40 Delay Time vs Input Voltage
VBIAS = 5 V
Figure 6-42 Turnon Time vs Input Voltage
VBIAS = 5 V
Figure 6-44 Rise Time vs Input Voltage
VIN = 1.05 VVBIAS = 5 V
Figure 6-46 Turnoff Response Time
