Typical DC Characteristics

VIN1 = VIN2 = VBIASVON1 = VON2 = 5 VVOUT = Open

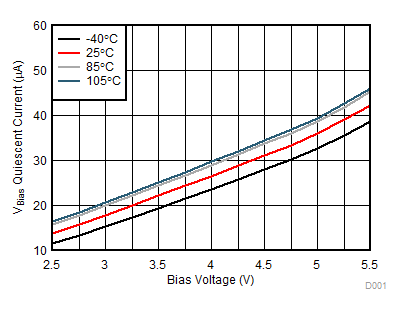

Figure 6-1 VBIAS Quiescent Current vs Bias Voltage Both Channels (TPS22976, TPS22976N)
VIN1 = VIN2 = VBIASVON1 = VON2 = 5 VVOUT = Open

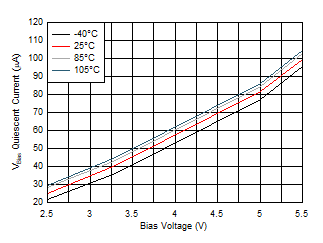

Figure 6-3 VBIAS Quiescent Current vs Bias Voltage Both Channels (TPS22976A)
VIN1 = VIN2 = VBIASVON1 = VON2 = 0 VVOUT = 0 V

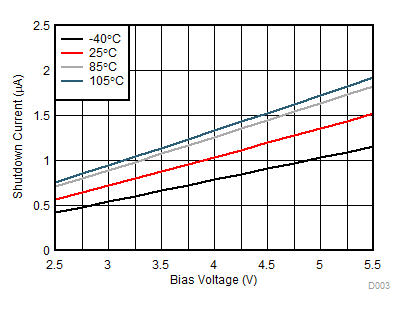

Figure 6-5 VBIAS Shutdown Current vs Bias Voltage Both Channels
GUID-20231117-SS0I-HXVW-SDHN-MMQBVXXGTCXJ-low.svg
VBIAS = 5 V IOUT = –200 mA VON = 5 V
Figure 6-7 On-Resistance vs Input Voltage Single Channel - Across Ambient Temperatures (TPS22976)
GUID-20231117-SS0I-RN9V-6BJK-SZ4R0CRJBFBX-low.svg
VBIAS = 5 V IOUT = –200 mA VON = 5 V
Figure 6-9 On-Resistance vs Ambient Temperature Single Channel (TPS22976)
VBIAS = 2.5 V IOUT = –200 mA VON = 5 V

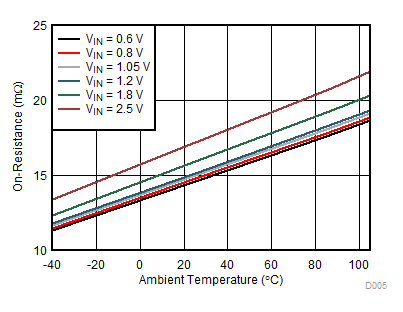

Figure 6-11 On-Resistance vs Ambient Temperature Single Channel (TPS22976A, TPS22976N)
VBIAS = 2.5 V IOUT = –200 mA VON = 5 V
Figure 6-13 On-Resistance vs Input Voltage Single Channel - Across Ambient Temperatures (TPS22976A, TPS22976N)
VIN = 2.5 VVON = 0 V
Figure 6-15 Pulldown Resistance vs Bias Voltage Single Channel
VIN = VBIAS
Figure 6-17 Low-Level Input Voltage vs Bias Voltage
VIN1 = VBIASVON1 = 5 VVOUT = Open
Figure 6-2 VBIAS Quiescent Current vs Bias Voltage Single Channel (TPS22976, TPS22976N)
VIN1 = VBIAS VON1 = 5 V VOUT = Open
Figure 6-4 VBIAS Quiescent Current vs Bias Voltage Single Channel (TPS22976A)
VBIAS = 5 VVON = 0 VVOUT = 0 V
Note:–40°C and 25°C curves have similar values, therefore only one line is visible.

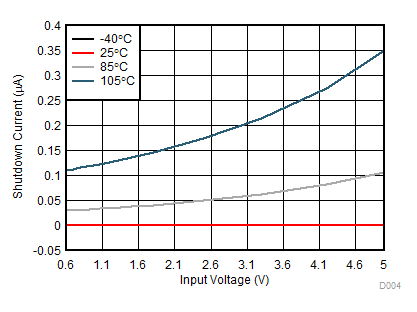

Figure 6-6 Off-State VIN Current vs Input Voltage Single Channel
GUID-20231117-SS0I-RNZT-BSHF-JSKNCXVBJXVV-low.svg
VBIAS = 2.5 V IOUT = –200 mA VON = 5 V
Figure 6-8 On-Resistance vs Input Voltage Single Channel - Across Ambient Temperatures (TPS22976)
GUID-20231117-SS0I-LXV5-JF1J-PPNL0GW7VXMM-low.svg
VBIAS = 2.5 V IOUT = –200 mA VON = 5 V
Figure 6-10 On-Resistance vs Ambient Temperature Single Channel (TPS22976)
VBIAS = 5 V IOUT = –200 mA VON = 5 V
Figure 6-12 On-Resistance vs Ambient Temperature Single Channel (TPS22976A, TPS22976N)
VBIAS = 5 V IOUT = –200 mA VON = 5 V

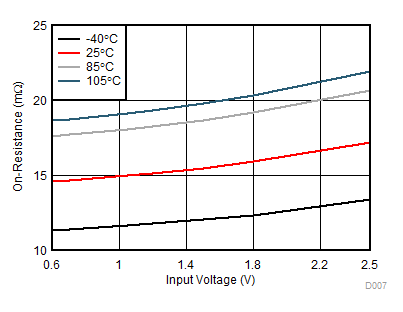

Figure 6-14 On-Resistance vs Input Voltage Single Channel - Across Ambient Temperatures (TPS22976A, TPS22976N)
VIN = VBIAS
Figure 6-16 High-Level Input Voltage vs Bias Voltage
VIN = VBIAS

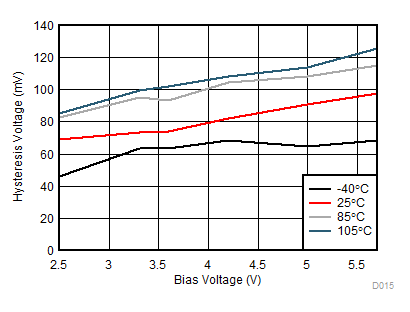

Figure 6-18 Voltage Input Hysteresis vs Bias Voltage
