6.9 Typical Characteristics, BTL Configuration

All Measurements taken at audio frequency = 1 kHz, PVDD_X = 51 V, GVDD_X = 10.6 V, RL = 4 Ω, fS = 450 kHz, ROC = 22 kΩ, TC = 75°C, Output Filter: LDEM = 10 μH, CDEM = 1 µF, mode = 00, AES17 + AUX-0025 measurement filters,unless otherwise noted.
TPA3255-Q1 D001_SLASEA8.gif

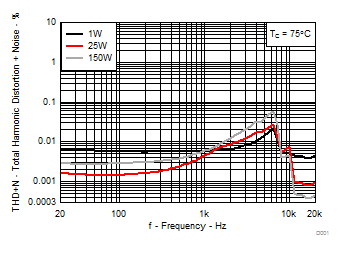

RL = 4 Ω P = 1W, 25W, 150W TC = 75°C
PVDD = 51V
Figure 1. Total Harmonic Distortion+Noise vs Frequency
TPA3255-Q1 D003_SLASEA8.gif
A.

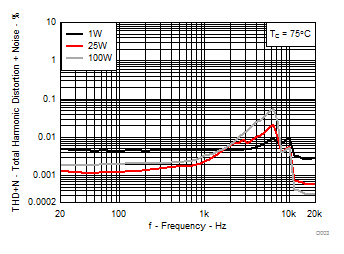

RL = 8 Ω P = 1W, 25W, 100W TC = 75°C
PVDD = 53.5V
Figure 3. Total Harmonic Distortion+Noise vs Frequency
TPA3255-Q1 D005_SLASEA8.gif

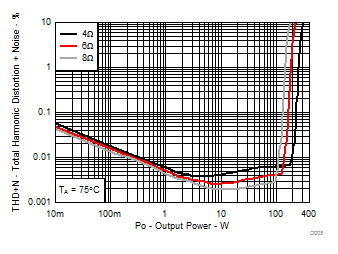

RL = 4 Ω, 6 Ω, 8 Ω TC = 75°C PVDD = 51V
Figure 5. Total Harmonic Distortion + Noise vs Output Power
TPA3255-Q1 D007_SLASEA8.gif

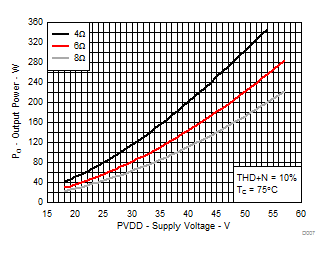

RL = 4 Ω, 6 Ω, 8 Ω THD+N = 10% TC = 75°C
Figure 7. Output Power vs Supply Voltage
TPA3255-Q1 D009_SLASEA8.gif

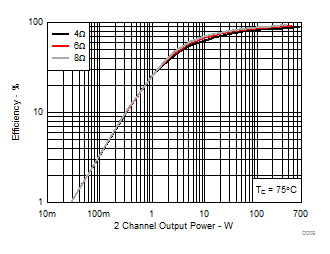

RL = 4 Ω, 6 Ω, 8 Ω THD+N = 10% TC = 75°C
Figure 9. System Efficiency vs Output Power
TPA3255-Q1 D011_SLASEA8.gif

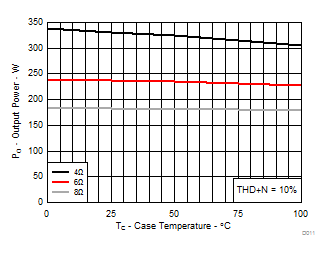

RL = 4 Ω, 6 Ω, 8 Ω THD+N = 10% TC = 75°C
Figure 11. Output Power vs Case Temperature
TPA3255-Q1 D002_SLASEA8.gif
RL = 4 Ω P = 1W, 25W, 150W TC = 75°C
AUX-0025 filter, 80 kHz analyzer BW PVDD = 51V
Figure 2. Total Harmonic Distortion+Noise vs Frequency
TPA3255-Q1 D004_SLASEA8.gif
A.

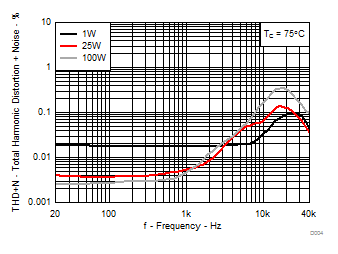

RL = 8 Ω P = 1W, 25W, 100W TC = 75°C
AUX-0025 filter, 80 kHz analyzer BW PVDD = 53.5V
Figure 4. Total Harmonic Distortion+Noise vs Frequency

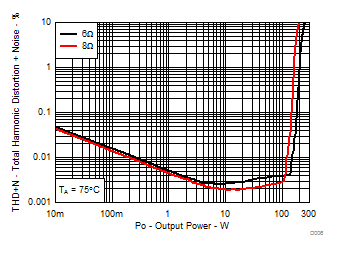

TPA3255-Q1 D006_SLASEA8.gif
A.
RL = 6 Ω, 8 Ω TC = 75°C PVDD = 53.5V
Figure 6. Total Harmonic Distortion + Noise vs Output Power
TPA3255-Q1 D008_SLASEA8.gif
RL = 4 Ω, 6 Ω, 8 Ω THD+N = 1% TC = 75°C
Figure 8. Output Power vs Supply Voltage
TPA3255-Q1 D010_SLASEA8.gif

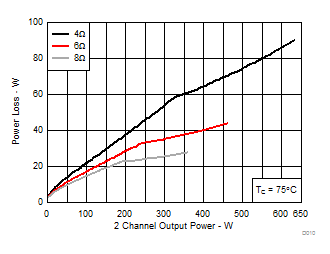

RL = 4 Ω, 6 Ω, 8 Ω THD+N = 10% TC = 75°C
Figure 10. System Power Loss vs Output Power
TPA3255-Q1 D012_SLASEA8.gif
4 Ω, VREF = 36.06 V (1% Output power) FFT = 16384
AUX-0025 filter, 80 kHz analyzer BW TC = 75°C
Figure 12. Noise Amplitude vs Frequency
