8 Parameter Measurement Information

8.1 Set-Up for Graphs

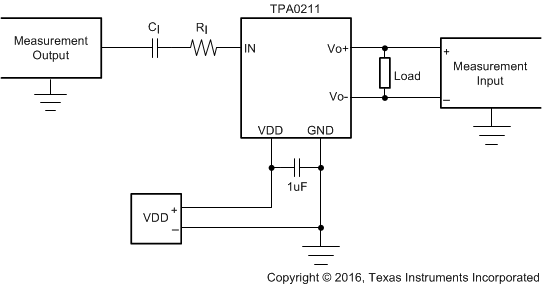

All parameters are measured according to the conditions described in Specifications. Figure 22 shows the setup used for the typical characteristics of the test device.

TPA0211 Test_Set_Up_for_Graphs.gif
1. All other measurements were taken with 1-µF CI (unless otherwise noted).
2. A 33-µH inductor was placed in series with the load resistor to emulate a small speaker for efficiency measurements.
Figure 22. Test Set-Up for Graphs
