6.9 Typical Characteristics

at TA = 25°C, VDD = 5 V (unless otherwise noted)

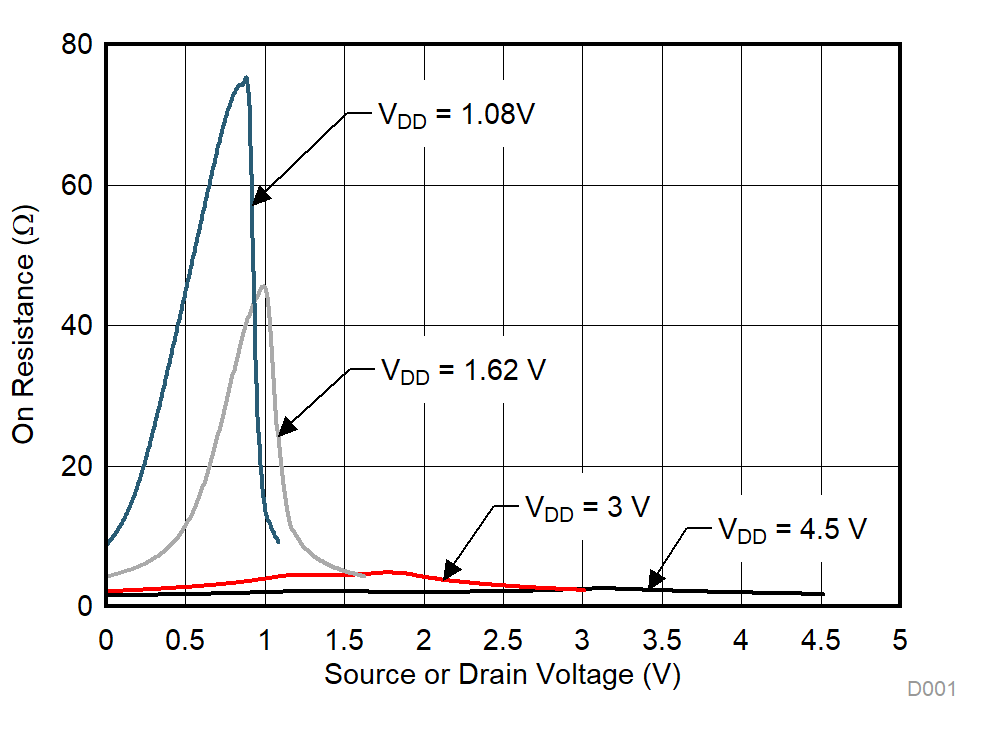

TMUX1247 D001_SCDS409.gif
TA = 25°C
Figure 1. On-Resistance vs Source or Drain Voltage
TMUX1247 D003_SCDS409.gif
TA = 25°C
Figure 3. Supply Current vs Logic Voltage

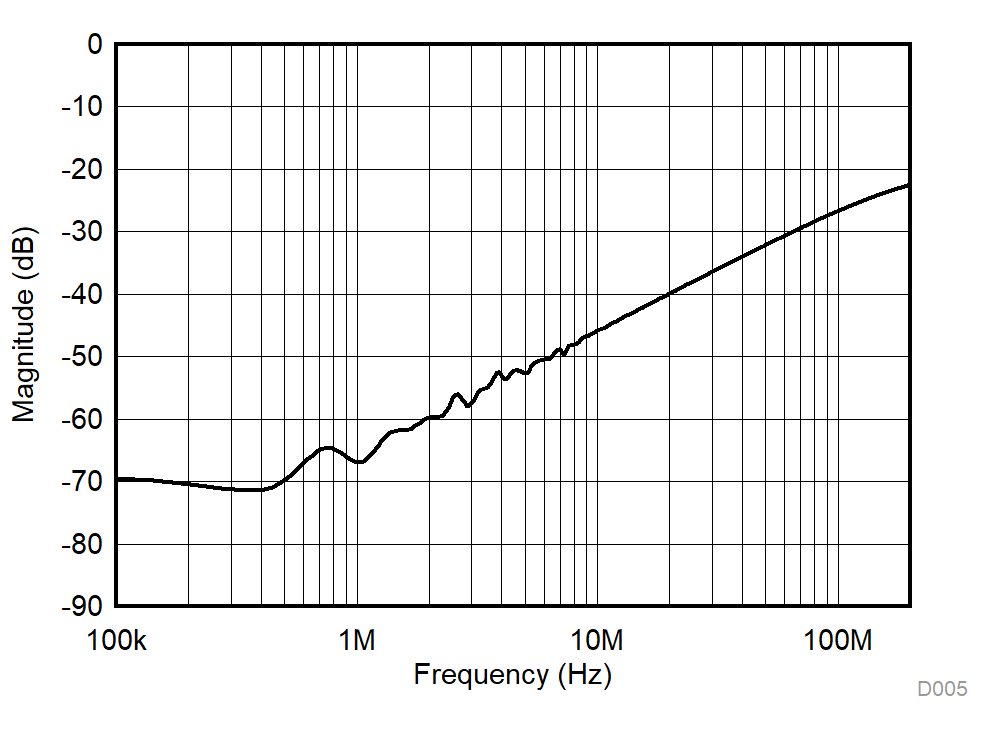

TMUX1247 D005_SCDS409.gif
TA = 25°C
Figure 5. Crosstalk and Off-Isolation vs Frequency
TMUX1247 D002_SCDS409.gif
VDD = 3 V
Figure 2. On-Resistance vs Source or Drain Voltage
TMUX1247 D004_SCDS409.gif
TA = 25°C
Figure 4. Ttransition vs Supply Voltage
TMUX1247 D006_SCDS409.gif
TA = 25°C
Figure 6. Frequency Response
