8.17.1 DMMCLK Timing

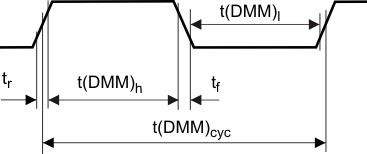

TMS570LS20216 TMS570LS20206 TMS570LS10216 TMS570LS10206 TMS570LS10116 TMS570LS10106 DMMCLK_Timing.gifFigure 8-24 DMMCLK Timing

Table 8-25 DMMCLK Timing

Parameter Minimum Description
t(DMM)cyc tc(HCLK) * 2 Clock period
t(DMM)h t(DMM)cyc/2-(tr+tf)/2 High pulse width
t(DMM)l t(DMM)cyc/2-(tr+tf)/2 Low pulse width
