Typical Characteristics

At TA = 25°C and VS = 3.3 V, unless otherwise noted.

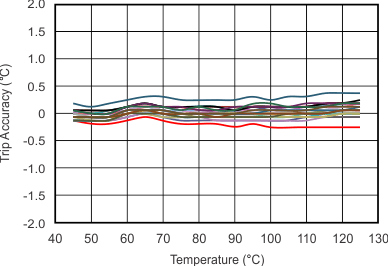

TMP302-Q1 tc_trip_acc_err_temp_slos889.gif
30 typical units
Figure 1. Trip Accuracy Error vs Temperature

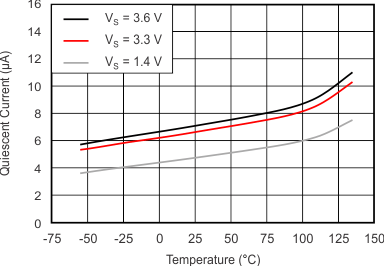

TMP302-Q1 tc_iq_temp_slos889.gif
Figure 2. Quiescent Current vs Temperature

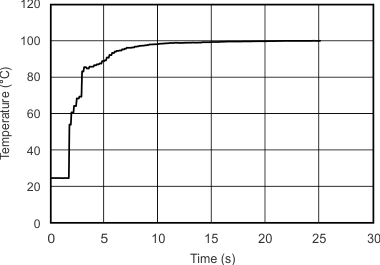

TMP302-Q1 tc_temp_step_resp_time_slos889.gif
Figure 3. Temperature Step Response in Perfluorinated Fluid at 100°C vs Time

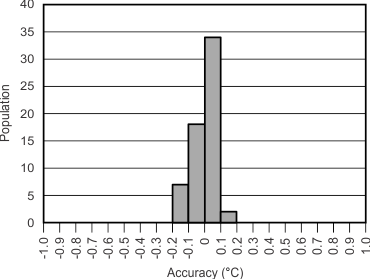

TMP302-Q1 tc_trip_thresh_histo_slos889.gif
Figure 5. Trip Threshold Accuracy

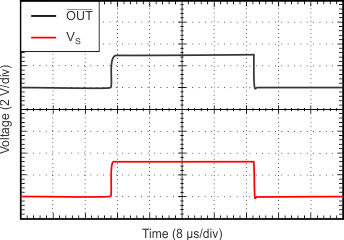

TMP302-Q1 tc_pu_pd_tr_slos889.gif
Figure 7. Power-Up and Power-Down Response

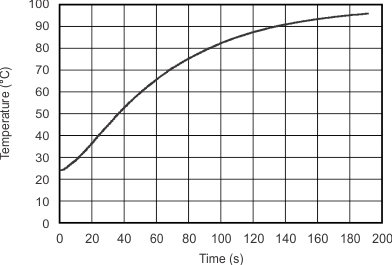

TMP302-Q1 tc_therm_step_resp_air_time_slos889.gif
Figure 4. Thermal Step Response in Air at 100°C vs Time

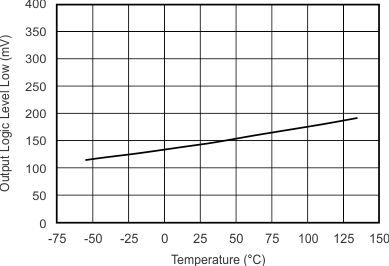

TMP302-Q1 tc_output_log_low_temp_slos889.gif
VS = 1.4 V IOL = 2 mA
Figure 6. Output Logic-Level Low VOL vs Temperature

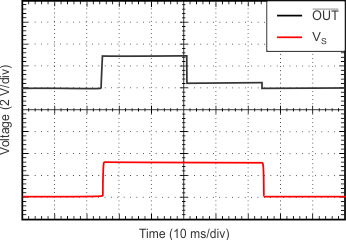

TMP302-Q1 tc_pu_trip_pd_tr_slos889.gif
TMP302A-Q1, TA = 55°C TRIPSET1 = TRIPSET0 = GND
Figure 8. Power-Up, Trip, and Power-Down Response
