7.8 Typical Characteristics

at TJ = 25°C and VDD = 5 V (unless otherwise noted)

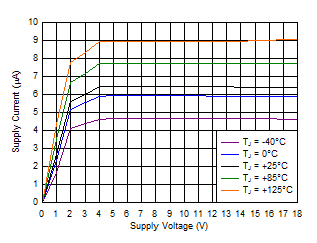

TLV6703 D001_SBVS271.gif
Figure 2. Supply Current (IDD) vs Supply Voltage (VDD)
TLV6703 D003_SBVS271.gif
Figure 4. Hysteresis (Vhys) vs Temperature
TLV6703 D005_SBVS271.gif
Figure 6. Propagation Delay vs Temperature
(Low-to-High Transition at Sense)
TLV6703 D007_SBVS271.gif
Figure 8. Supply Current (IDD) vs
Output Sink Current
TLV6703 D009_SBVS271.gif
Figure 10. Output Voltage Low (VOL) vs
Output Sink Current (0°C)
TLV6703 D011_SBVS271.gif
Figure 12. Output Voltage Low (VOL) vs
Output Sink Current (85°C)

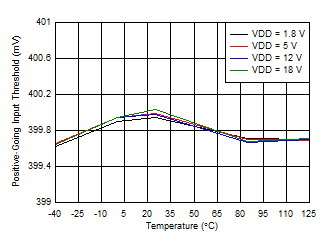

TLV6703 D002_SBVS271.gif
Figure 3. Rising Input Threshold Voltage (VIT+) vs Temperature
TLV6703 D004_SBVS271.gif
Figure 5. Propagation Delay vs Temperature
(High-to-Low Transition at Sense)

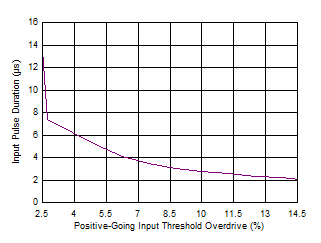

TLV6703 D006_SBVS271.gif
SENSE = negative spike below VIT–
Figure 7. Minimum Pulse Width vs
Threshold Overdrive Voltage

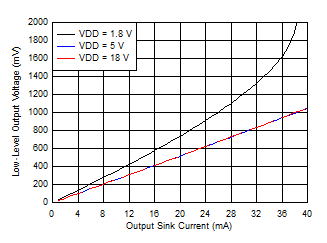

TLV6703 D008_SBVS271.gif
Figure 9. Output Voltage Low (VOL) vs
Output Sink Current (–40°C)
TLV6703 D010_SBVS271.gif
Figure 11. Output Voltage Low (VOL) vs
Output Sink Current (25°C)

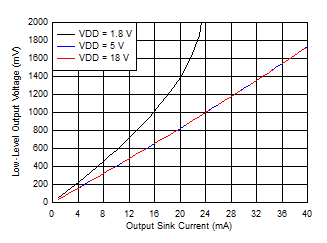

TLV6703 D012_SBVS271.gif
Figure 13. Output Voltage Low (VOL) vs
Output Sink Current (125°C)
