8.2.3 Application Performance Curves

VIN = 3.6 V, VOUT = 12 V, IOUT = 50 mA
Figure 8-2 Switching Waveforms in PWM CCM Mode

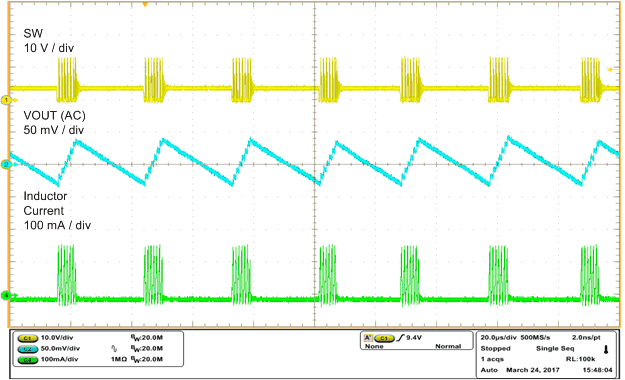

VIN = 3.6 V, VOUT = 12 V, IOUT = 3 mA
Figure 8-4 Switching Waveforms in Power Save Mode
VIN = 3.6 V, VOUT = 12 V, IOUT = 50 mA
Figure 8-6 Shutdown Waveforms
VOUT = 12 V, IOUT = 50 mA
Figure 8-8 Input Voltage from 3.3-V to 4.2-V Line Transient Response
VIN = 3.6 V, VOUT = 12 V, IOUT = 18 mA
Figure 8-3 Switching Waveforms in PWM DCM Mode
VIN = 3.6 V, VOUT = 12 V, IOUT = 50 mA
Figure 8-5 Soft Start-up Waveforms
VIN = 3.6 V, VOUT = 12 V
Figure 8-7 30-mA to 70-mA Load Transient Response
