6.8 Dissipation Ratings

PACKAGE POWER RATING
TA < 25°C		 DERATING FACTOR
ABOVE TA = 25°C		 POWER RATING
TA = 70°C		 POWER RATING
TA = 85°C
DCK 321 mW 2.6 mW/°C 206 mW 167 mW

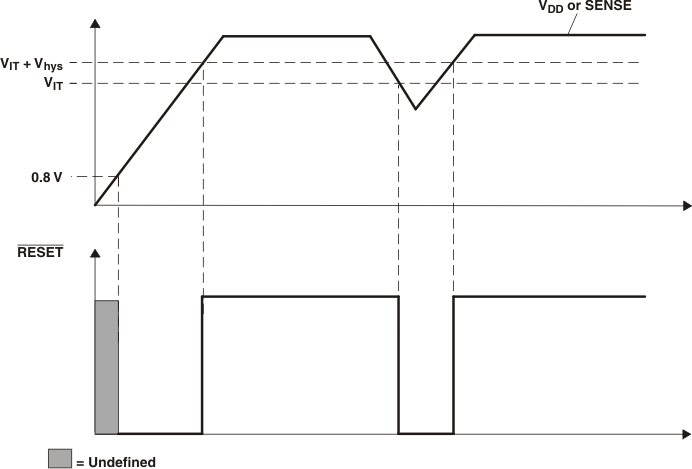

TLV4011 timing_req_gls228.gifFigure 1. Timing Requirements
