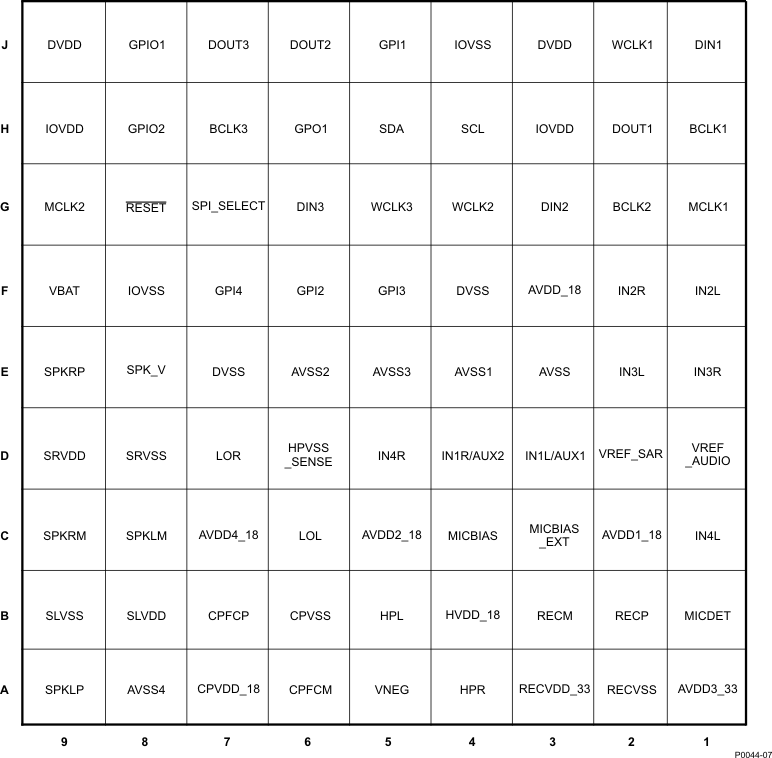

7 Pin Configuration and Functions

YZF Package
81-Pin DSBGA
Top View
TLV320AIC3212 s3262_RevB_WCSP_pinout_topview.gif

Pin Functions

PIN TYPE DESCRIPTION
NO. NAME
A1 AVDD3_33 P 3.3-V Power Supply for Micbias
A2 RECVSS P Receiver Driver Ground
A3 RECVDD_33 P 3.3-V Power Supply for Receiver Driver
A4 HPR O Right Headphone Output
A5 VNEG I/O Charge Pump Negative Supply
A6 CPFCM I/O Charge Pump Flying Capacitor M terminal
A7 CPVDD_18 P Power Supply Input for Charge Pump
A8 AVSS4 P Analog Ground for Class-D
A9 SPKLP O Left Channel P side Class-D Output
B1 MICDET I/O Headset Detection Pin
B2 RECP O Receiver Driver P side Output
B3 RECM O Receiver Driver M side Output
B4 HVDD_18 P Headphone Amp Power Supply
B5 HPL O Left Headphone Output
B6 CPVSS P Charge Pump Ground
B7 CPFCP I/O Charge Pump Flying Capacitor P Terminal
B8 SLVDD P Left Channel Class-D Output Stage Power Supply
B9 SLVSS P Left Channel Class-D Output Stage Ground
C1 IN4L I Analog Input 4 Left
C2 AVDD1_18 P 1.8-V Analog Power Supply
C3 MICBIAS_EXT O Output Bias Voltage for Headset Microphone.
C4 MICBIAS O Output Bias Voltage for Microphone to be used for on-board Microphones
C5 AVDD2_18 P 1.8-V Analog Power Supply
C6 LOL O Left Line Output
C7 AVDD4_18 P 1.8-V Analog Power Supply for Class-D
C8 SPKLM O Left Channel M side Class-D Output
C9 SPKRM O Right Channel M side Class-D Output
D1 VREF_AUDIO O Analog Reference Filter Output
D2 VREF_SAR I/O SAR ADC Voltage Reference Input or Internal SAR ADC Voltage Reference Bypass Capacitor Pin
D3 IN1L/AUX1 I Analog Input 1 Left, Auxiliary 1 Input to SAR ADC
(Special Function: Left Channel High Impedance Input for Capacitive Sensor Measurement)
D4 IN1R/AUX2 I Analog Input 1 Right, Auxiliary 2 Input to SAR ADC
(Special Function: Right Channel High Impedance Input for Capacitive Sensor Measurement)
D5 IN4R I Analog Input 4 Right
D6 HPVSS_SENSE I Headphone Ground Sense Terminal
D7 LOR O Right Line Output
D8 SRVSS P Right Channel Class-D Output Stage Ground
D9 SRVDD P Right Channel Class-D Output Stage Power Supply
E1 IN3R I Analog Input 3 Right
E2 IN3L I Analog Input 3 Left
E3 AVSS P Analog Ground
E4 AVSS1 P Analog Ground
E5 AVSS3 P Analog Ground
E6 AVSS2 P Analog Ground
E7 DVSS P Digital Ground
E8 SPK_V P Class-D Output Stage Power Supply (Connect to SRVDD through a Resistor)
E9 SPKRP O Right Channel P side Class-D Output
F1 IN2L I Analog Input 2 Left
F2 IN2R I Analog Input 2 Right
F3 AVDD_18 P 1.8-V Analog Power Supply
F4 DVSS P Digital Ground
F5 GPI3 I Multi Function Digital Input 3
Primary: (SPI_SELECT = 1)
ADC Bit Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
ADC Word Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
Secondary: (SPI_SELECT = 0)
I2C Address Bit 1 (I2C_ADDR0, LSB)
F6 GPI2 I Multi Function Digital Input 2
Primary:
General Purpose Input
Secondary:
Audio Serial Data Bus 1 Data Input
Digital Microphone Data Input
General Clock Input
Low-Frequency Clock Input
ADC Word Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
ADC Bit Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
F7 GPI4 I Multi Function Digital Input 4
Primary: (SPI_SELECT = 1)
ADC Bit Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
ADC Word Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
Secondary: (SPI_SELECT = 0)
I2C Address Bit 2 (I2C_ADDR1, MSB)
F8 IOVSS P Digital I/O Buffer Ground
F9 VBAT I Battery Monitor Voltage Input
G1 MCLK1 I Master Clock Input 1
G2 BCLK2 I/O Primary:
Audio Serial Data Bus 2 Bit Clock
Secondary:
General Purpose Input
General Purpose Output
General CLKOUT Output
ADC MOD Clock Output
SAR ADC Interrupt
INT1 Output
INT2 Output
General Clock Input
Low-Frequency Clock Input
G3 DIN2 I Primary:
Audio Serial Data Bus 2 Data Input
Secondary:
Digital Microphone Data Input
General Purpose Input
Low-Frequency Clock Input
G4 WCLK2 I/O Primary:
Audio Serial Data Bus 2 Word Clock
Secondary:
General Purpose Input
General Purpose Output
CLKOUT Output
ADC MOD Clock Output
SAR ADC Interrupt
INT1 Output
INT2 Output
Low-Frequency Clock Input
G5 WCLK3 I/O Primary:
Audio Serial Data Bus 3 Word Clock
Secondary:
General Purpose Output
General Purpose Input
Low-Frequency Clock Input
G6 DIN3 I Audio Serial Data Bus 3 Data Input
G7 SPI_SELECT I Control Interface Select
SPI_SELECT = 1: SPI Interface selected
SPI_SELECT = 0: I2C Interface selected
G8 RESET I Active Low Reset
G9 MCLK2 I Master Clock 2
Primary:
Clock Input
Secondary:
Digital Microphone Data Input
Low-Frequency Clock Input
H1 BCLK1 I/O Primary:
Audio Serial Data Bus 1 Bit Clock
Secondary:
General Clock Input
H2 DOUT1 O Primary:
Audio Serial Data Bus 1 Data Output
Secondary:
General Purpose Output
CLKOUT Output
SAR ADC Interrupt
INT1 Output
INT2 Output
H3 IOVDD P Digital I/O Buffer Supply
H4 SCL I/O I2C Interface Serial Clock (SPI_SELECT = 0)
SPI interface mode chip-select signal (SPI_SELECT = 1)
H5 SDA I/O I2C interface mode serial data input (SPI_SELECT = 0)
SPI interface mode serial data input (SPI_SELECT = 1)
H6 GPO1 O Multifunction Digital Output 1
Primary: (SPI_SELECT = 1)
Serial Data Output
Secondary: (SPI_SELECT = 0)
General Purpose Output
CLKOUT Output
ADC MOD Clock Output
SAR ADC Interrupt
INT1 Output
INT2 Output
H7 BCLK3 I/O Primary:
Audio Serial Data Bus 3 Bit Clock
Secondary:
General Purpose Input
General Purpose Output
Low-Frequency Clock Input
H8 GPIO2 I/O Multi Function Digital IO 2
Outputs:
General Purpose Output
ADC MOD Clock Output For Digital Microphone
CLKOUT Output
SAR ADC Interrupt
INT1 Output
INT2 Output
Audio Serial Data Bus 1 Bit Clock Output
ADC Word Clock Output for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
ADC Bit Clock Output for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
Inputs:
General Purpose Input
Digital Microphone Data Input
Audio Serial Data Bus 1 Bit Clock Input
General Clock Input
Low-Frequency Clock Input
ADC Word Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
ADC Bit Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
H9 IOVDD P Digital I/O Buffer Supply
J1 DIN1 I Primary:
Audio Serial Data Bus 1 Data Input
Secondary:
General Clock Input
Digital Microphone Data Input
J2 WCLK1 I/O Primary:
Audio Serial Data Bus 1 Word Clock
Secondary:
Low-Frequency Clock Input
General CLKOUT Output
J3 DVDD P 1.8V Digital Power Supply
J4 IOVSS P Digital I/O Buffer Ground
J5 GPI1 I Multifunction Digital Input 1
Primary: (SPI_SELECT = 1)
SPI Serial Clock
Secondary: (SPI_SELECT = 0)
Digital Microphone Data Input
General Clock Input
Low-Frequency Clock Input
General Purpose Input
ADC Word Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
ADC Bit Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
J6 DOUT2 O Primary:
Audio Serial Data Bus 2 Data Output
Secondary:
General Purpose Output
ADC MOD Clock Output
SAR ADC Interrupt
INT1 Output
INT2 Output
J7 DOUT3 O Primary:
Audio Serial Data Bus 3 Data Output
Secondary:
General Purpose Output
Audio Serial Data Bus 1 Word Clock Output
J8 GPIO1 I/O Multi Function Digital IO 1
Outputs:
General Purpose Output
ADC MOD Clock Output
CLKOUT Output
SAR ADC Interrupt
INT1 Output
INT2 Output
Audio Serial Data Bus 1 Word Clock Output
ADC Word Clock Output for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
ADC Bit Clock Output for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
Inputs:
General Purpose Input
Digital Microphone Data Input
Audio Serial Data Bus 1 Word Clock Input
General Clock Input
Low-Frequency Clock Input
ADC Word Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
ADC Bit Clock Input for Audio Serial Data Bus 1, 2, or 3 (Six-Wire Audio Interface)
J9 DVDD P 1.8V Digital Power Supply
