7.1 Driver

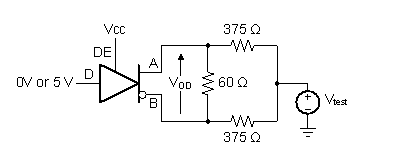

THVD1505 pmd_cmode.gifFigure 7. Measurement of Driver Differential-Output Voltage With Common-Mode Load

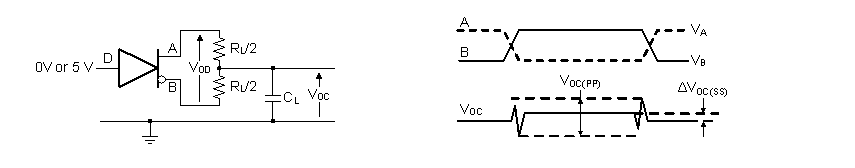

THVD1505 pmd_cmode_out.gifFigure 8. Measurement of Driver Differential and Common-Mode Output With RS-485 Load

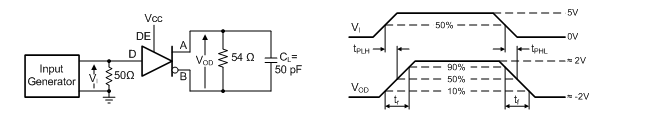

THVD1505 pmd_rt_ft_sllseh3.gifFigure 9. Measurement of Driver Differential-Output Rise and Fall Times and Propagation Delays
THVD1505 pmd_etdt_high_sllseh3.gifFigure 10. Measurement of Driver Enable and Disable Times With Active-High Output and Pull-Down Load
THVD1505 pmd_etdt_low_sllseh3.gifFigure 11. Measurement of Driver Enable and Disable Times With Active-Low Output and Pull-up Load
