7.10 Typical Characteristics: THD1450, THVD1451 and THVD1452

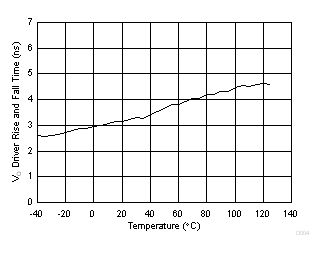

THVD1410 THVD1450 THVD1451 THVD1452 D004_SLLSEY3.gif
VCC = 5 V
Figure 8. Driver Rise or Fall Time vs Temperature
THVD1410 THVD1450 THVD1451 THVD1452 D006_SLLSEY3.gif
RL = 54 Ω VCC = 5 V TA = 25°C
Figure 10. Supply Current vs Signal Rate
THVD1410 THVD1450 THVD1451 THVD1452 D104_SLLSEY3.gif
VCC = 3.3 V
Figure 12. Driver Propagation Delay vs Temperature
THVD1410 THVD1450 THVD1451 THVD1452 D005_SLLSEY3.gif
VCC = 5 V
Figure 9. Driver Propagation Delay vs Temperature

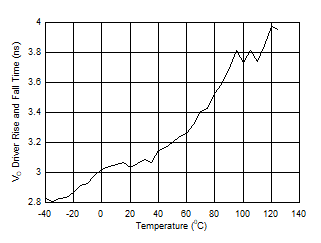

THVD1410 THVD1450 THVD1451 THVD1452 D103_SLLSEY3.gif
VCC = 3.3 V
Figure 11. Driver Rise or Fall Time vs Temperature

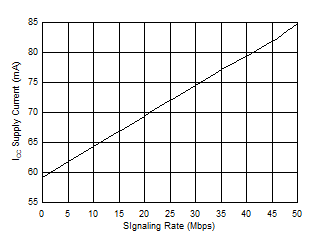

THVD1410 THVD1450 THVD1451 THVD1452 D105_SLLSEY3.gif
RL = 54 Ω VCC = 3.3 V TA = 25°C
Figure 13. Supply Current vs Signal Rate
