7.9 Typical Characteristics: All Devices

THVD1410 THVD1450 THVD1451 THVD1452 D001_SLLSEY3.gif
VCC = 5 V DE = VCC D = 0 V
Figure 1. Driver Output Voltage vs Driver Output Current

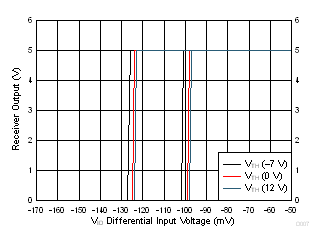

THVD1410 THVD1450 THVD1451 THVD1452 D007_SLLSEY3.gif
VCC = 5 V TA = 25°C
Figure 3. Receiver Output vs Input
THVD1410 THVD1450 THVD1451 THVD1452 D102_SLLSEY3.gif
VCC = 3.3 V DE = VCC D = 0 V
Figure 5. Driver Differential Output Voltage vs Driver Output Current
THVD1410 THVD1450 THVD1451 THVD1452 D003_SLLSEY3.gif
TA = 25°C DE = VCC D = VCC
RL = 54 Ω
Figure 7. Driver Output Current vs Supply Voltage
THVD1410 THVD1450 THVD1451 THVD1452 D002_SLLSEY3.gif
VCC = 5 V DE = VCC D = 0 V
Figure 2. Driver Differential Output voltage vs Driver Output Current
THVD1410 THVD1450 THVD1451 THVD1452 D101_SLLSEY3.gif
VCC = 3.3 V DE = VCC D = 0 V
Figure 4. Driver Output Voltage vs Driver Output Current
THVD1410 THVD1450 THVD1451 THVD1452 D106_SLLSEY3.gif
VCC = 3.3 V TA = 25°C
Figure 6. Receiver Output vs Input
